Air Delivery Valve Positions Chart - HVAC System - Automatic
Air Delivery Valve Positions Chart - HVAC System - Automatic

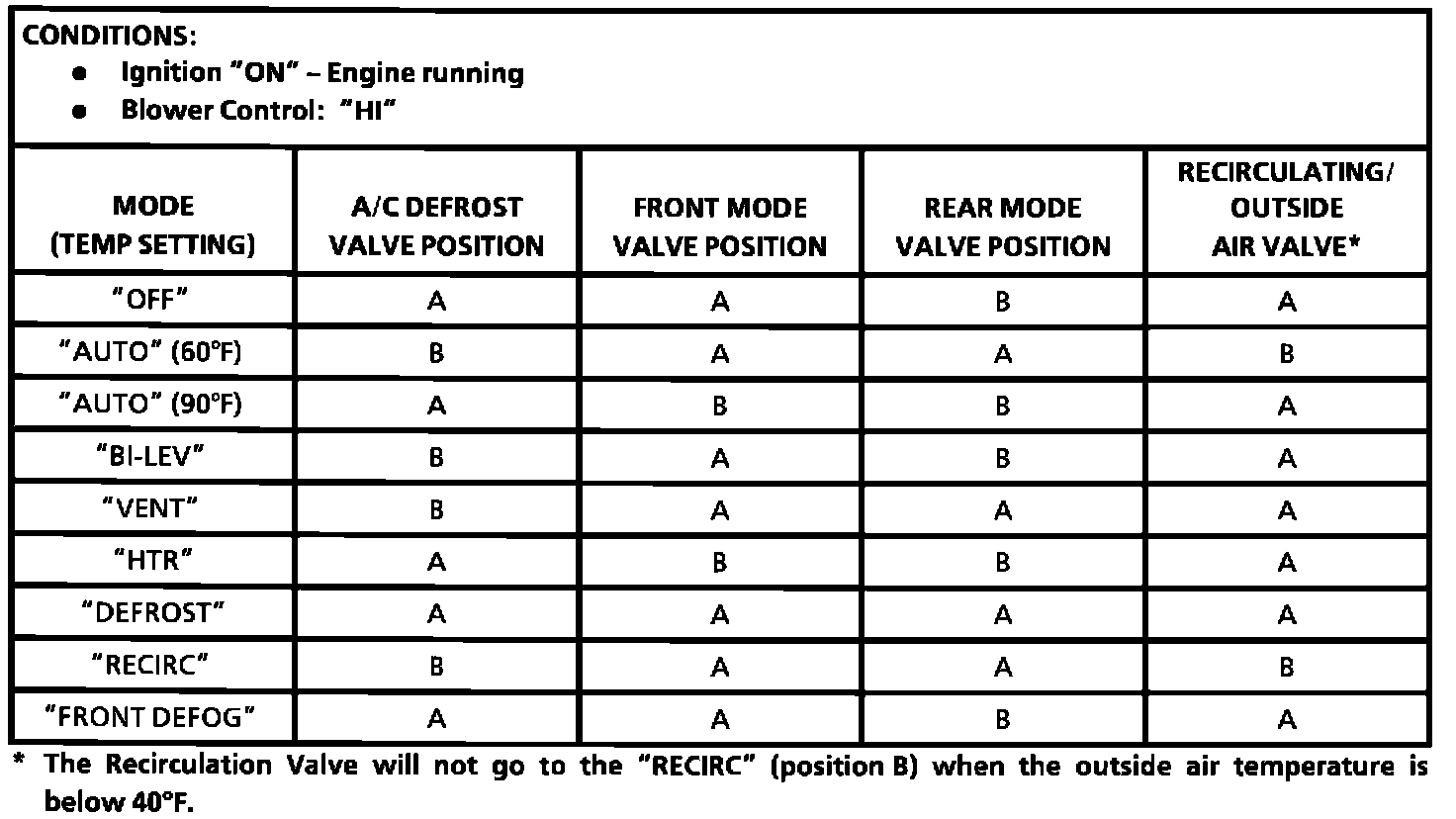

Valve Position Chart:
