Incandescent Panel Lamps

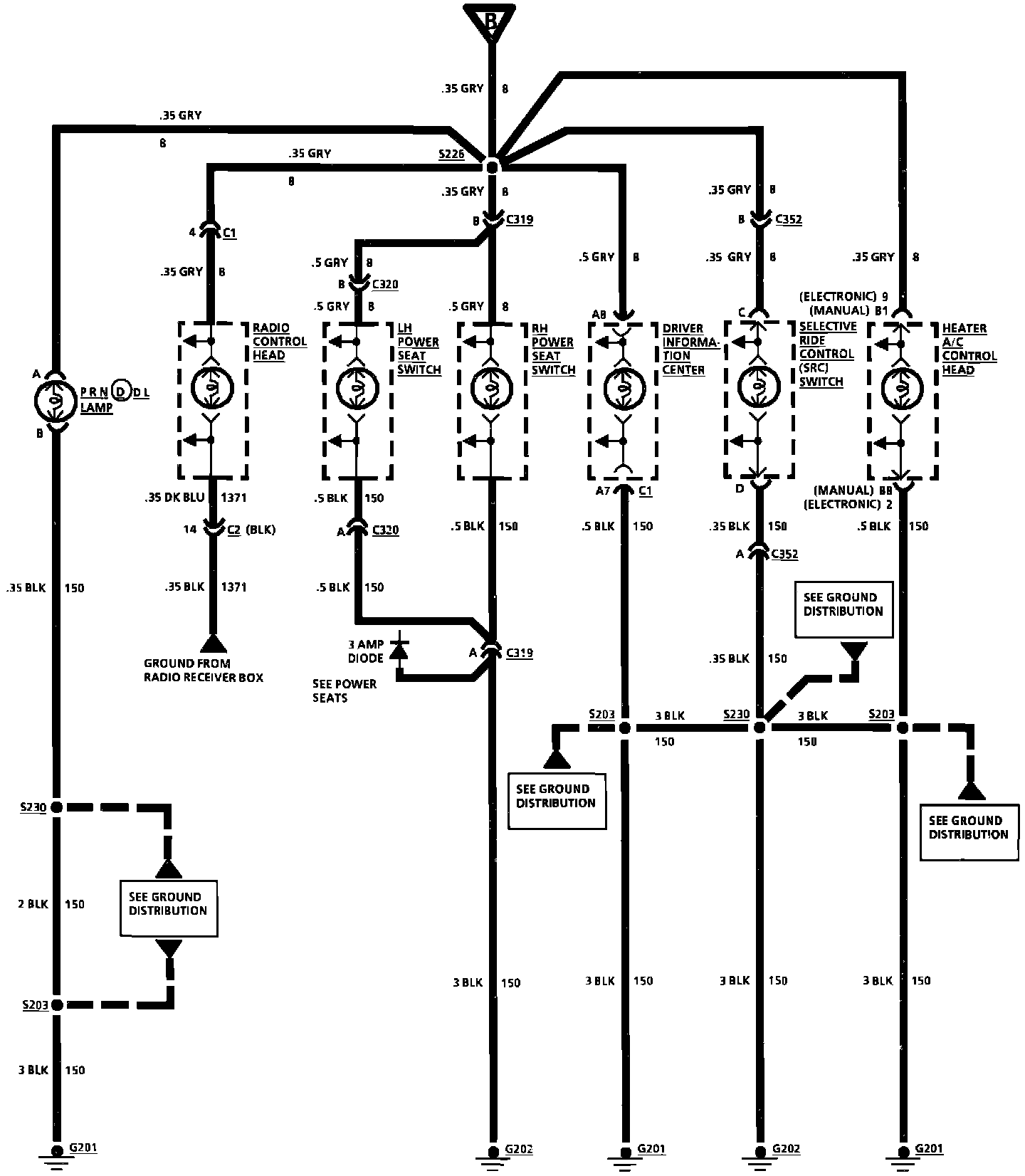

Interior Lights Dimming: Incandescent (Panel Lights):

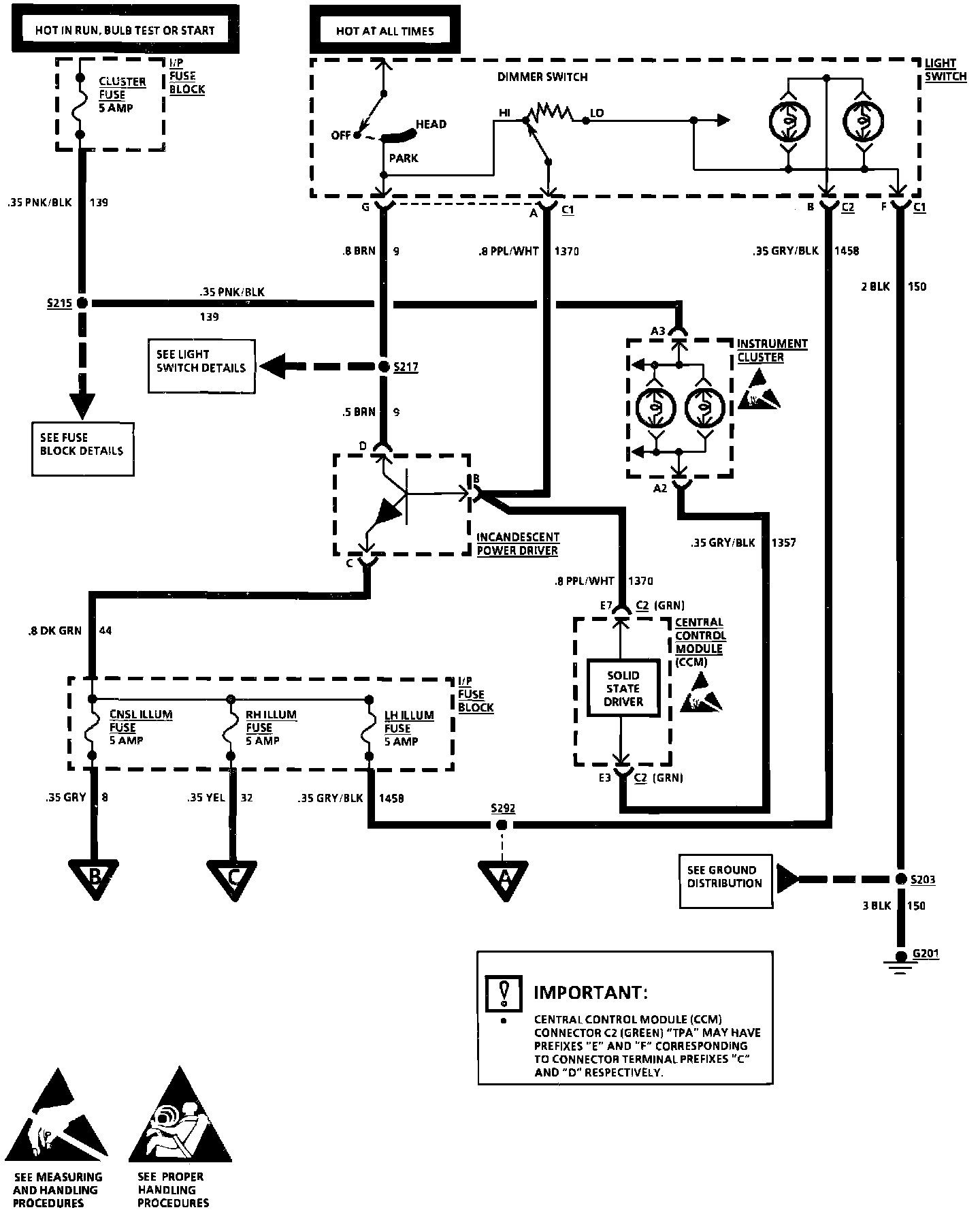

Interior Lights Dimming: Incandescent (Panel Lights):

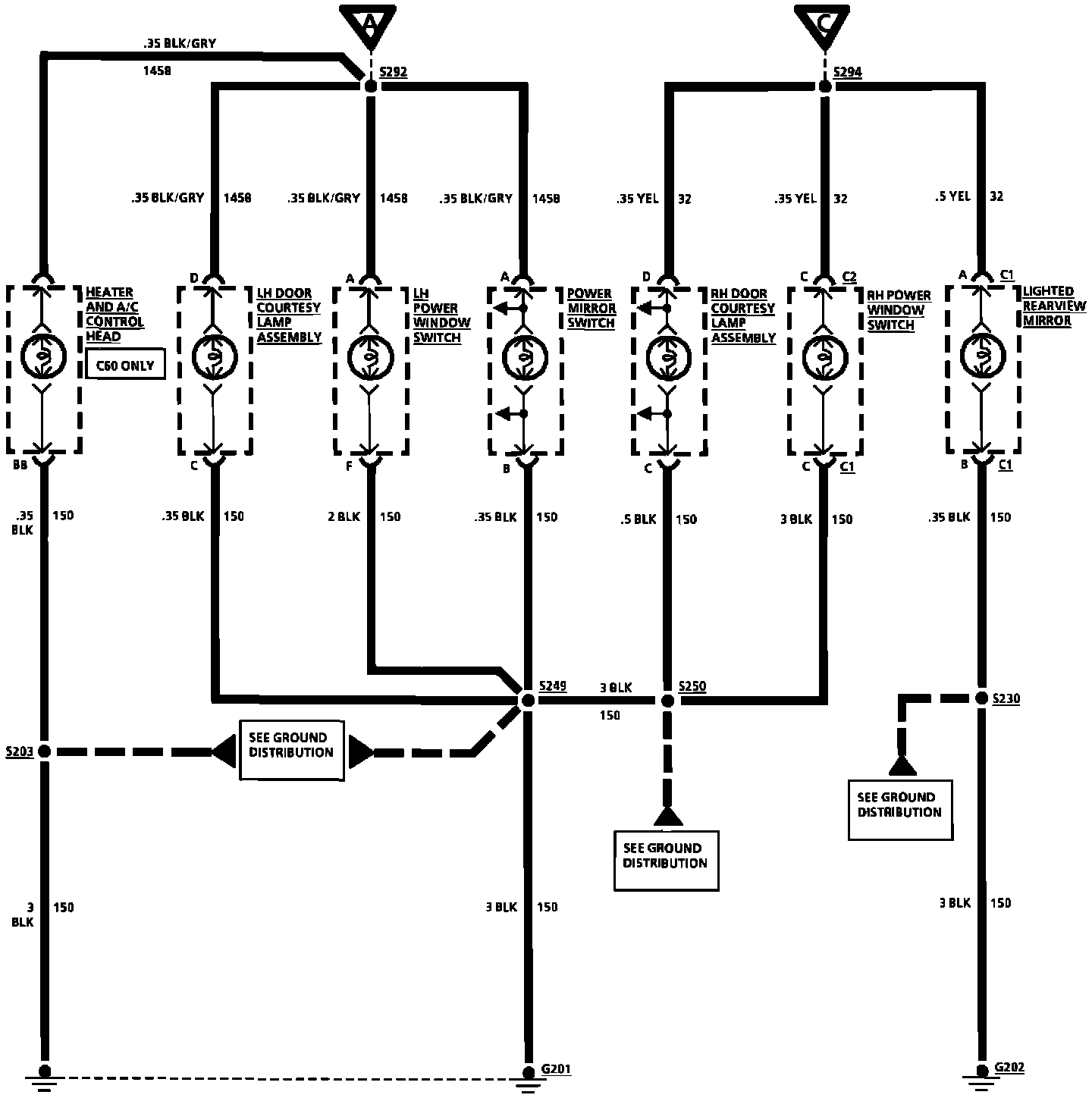

Interior Lights Dimming: Incandescent (Panel Lights):
