Emission Controls & Engine Data Sensors

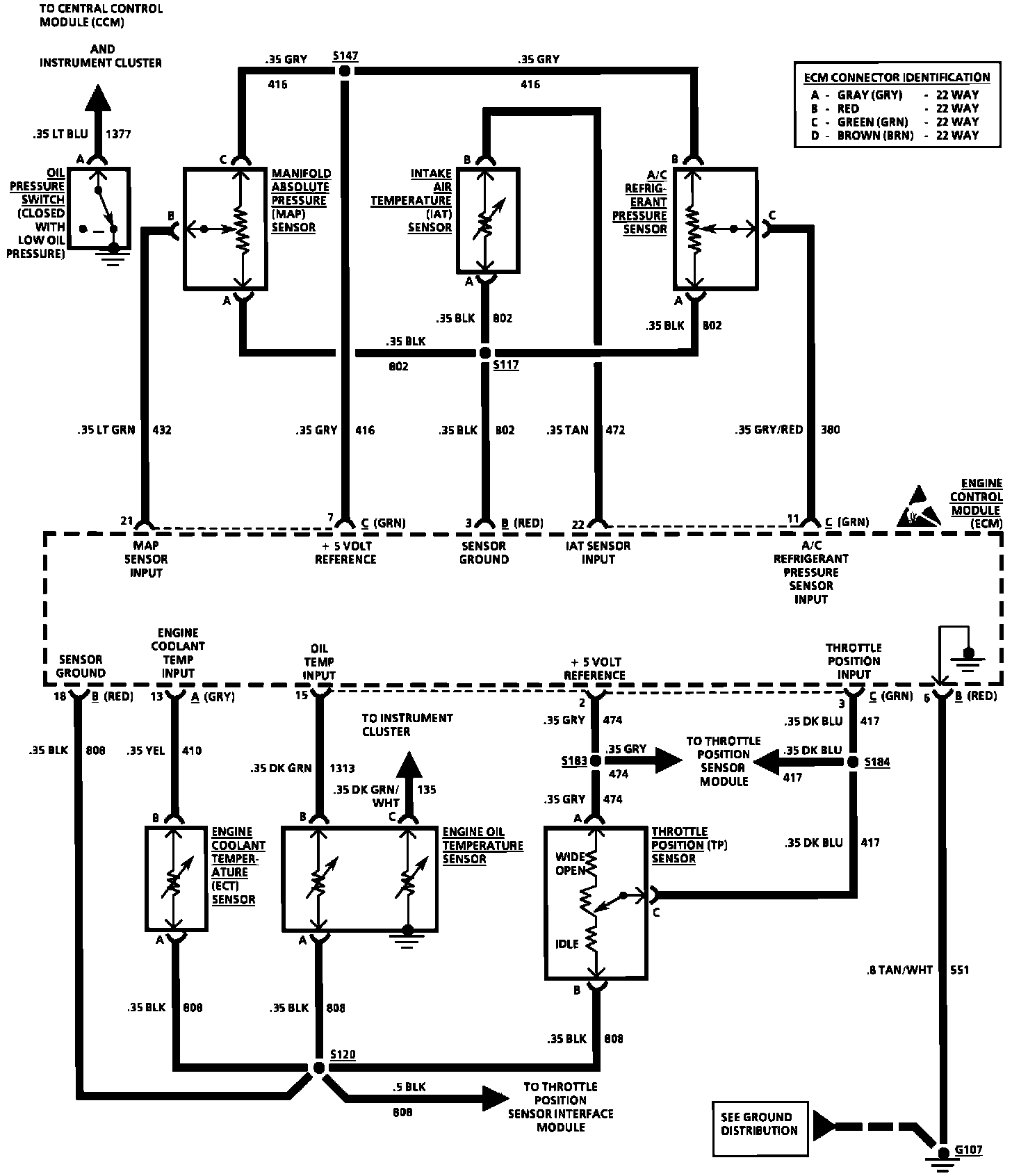

MFI: Engine Data Sensors And Emission Controls:



MFI: Engine Data Sensors And Emission Controls:
