Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Manual Transmission/Transaxle Controls
Manual Transmission/Transaxle Controls

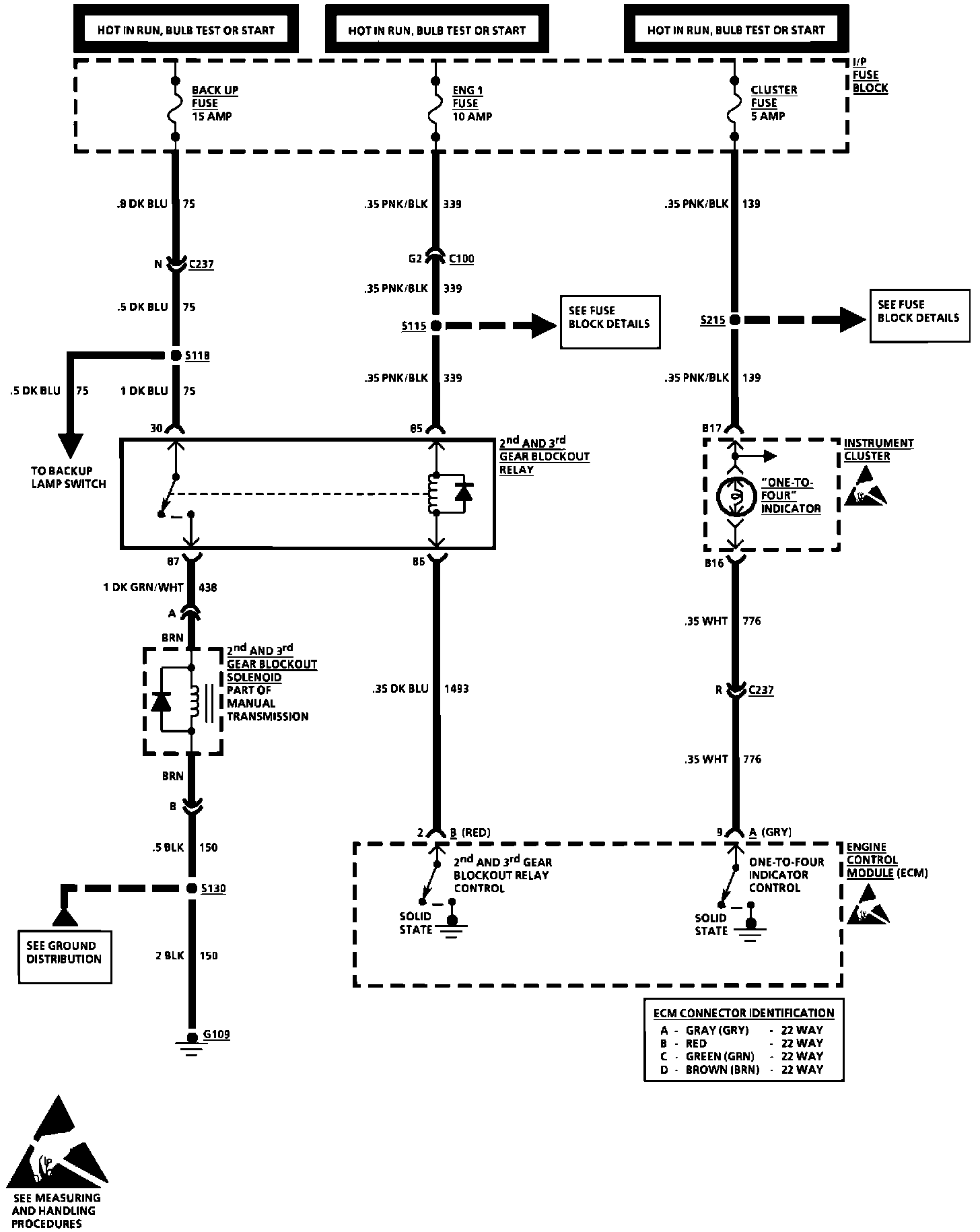

SMFI: 2nd And 3rd Gear Blockout Solenoid, Manual Transmission:
MFI: 2nd And 3rd Gear Blockout Solenoid, Manual Transmission:
