Primary Injector

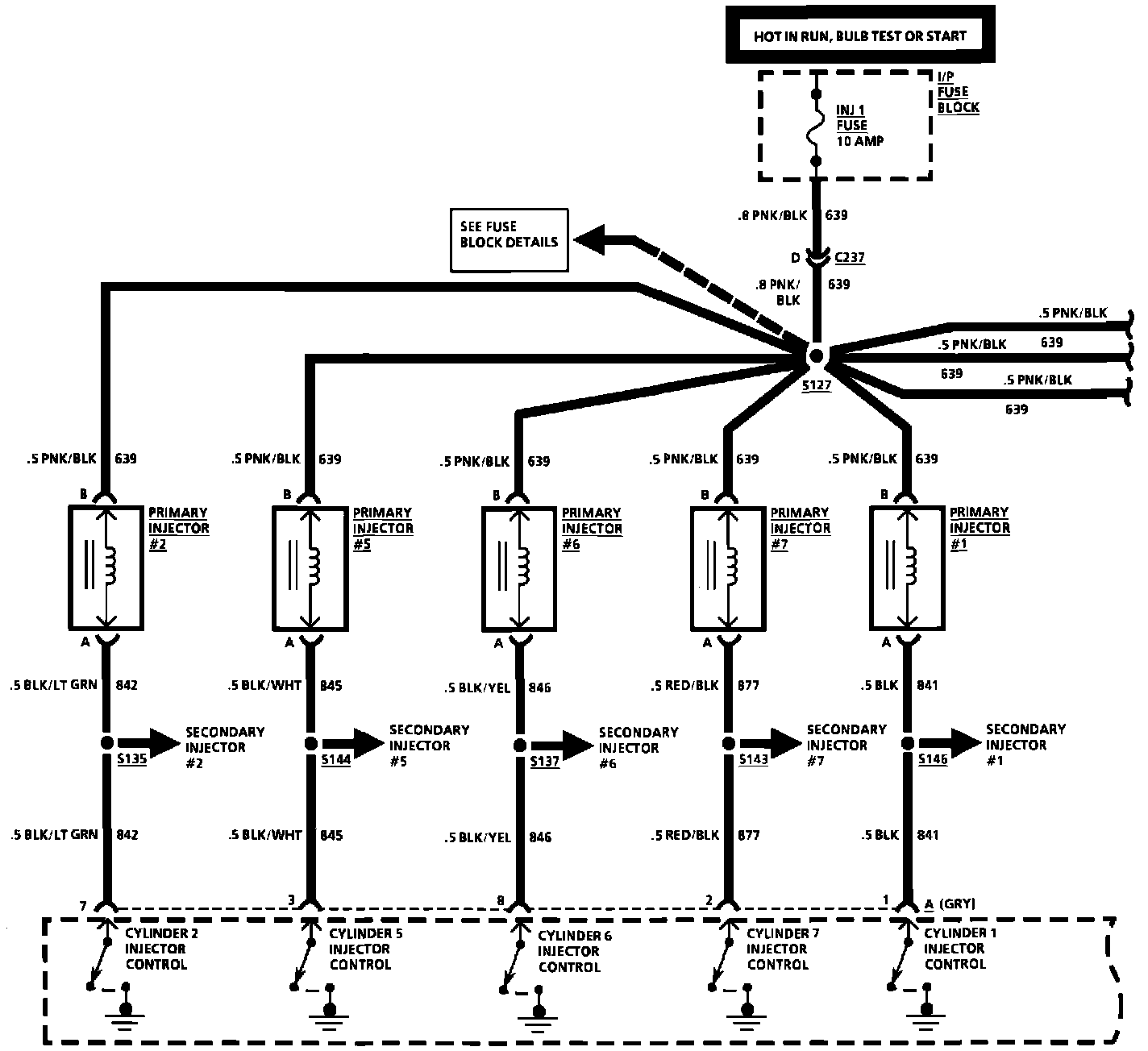

SMFI: Fuel Control And Fuel Delivery, Primary Injector Circuit:

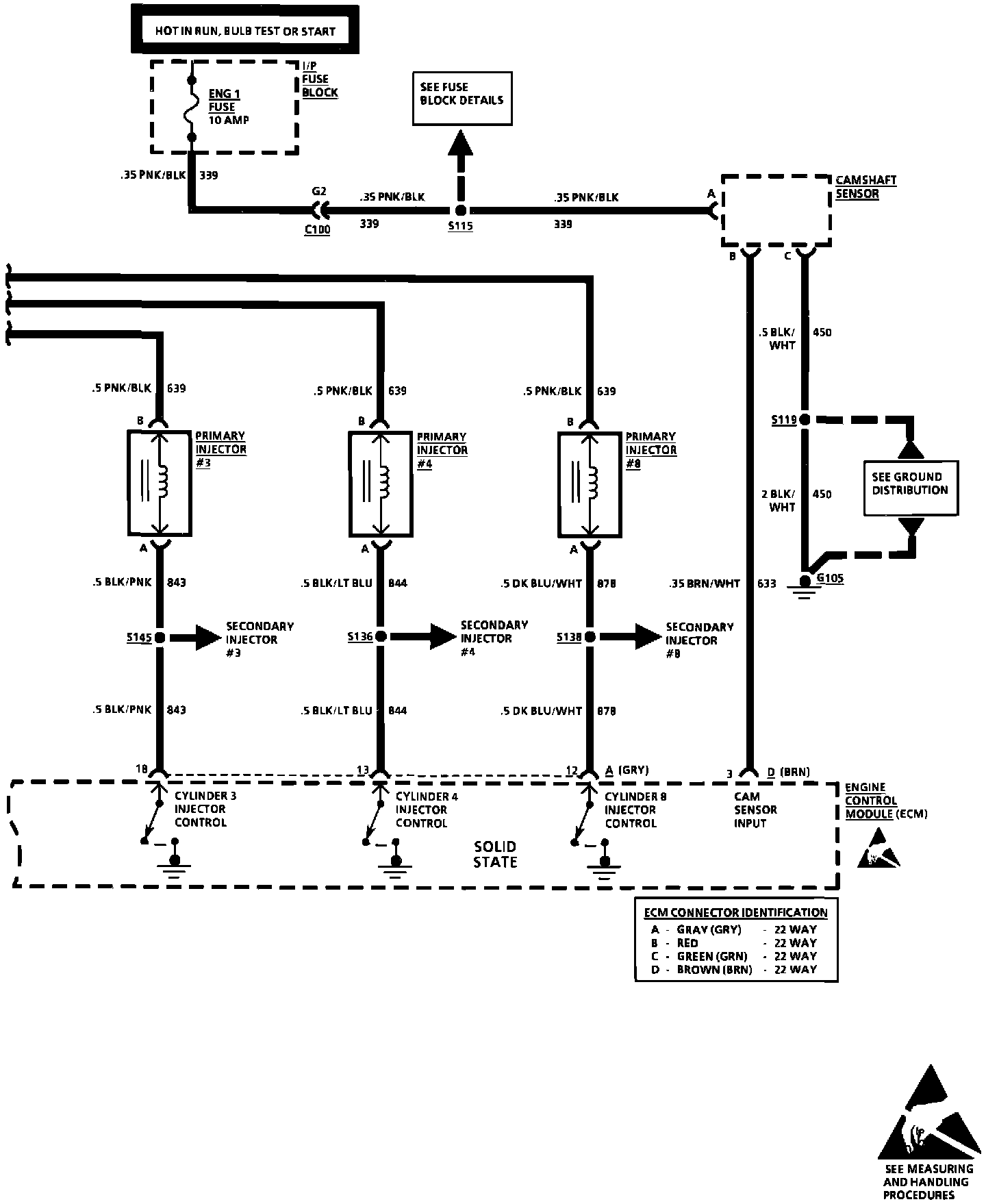

SMFI: Fuel Control And Fuel Delivery, Primary Injector Circuit:
