Idle Air Control (IAC)

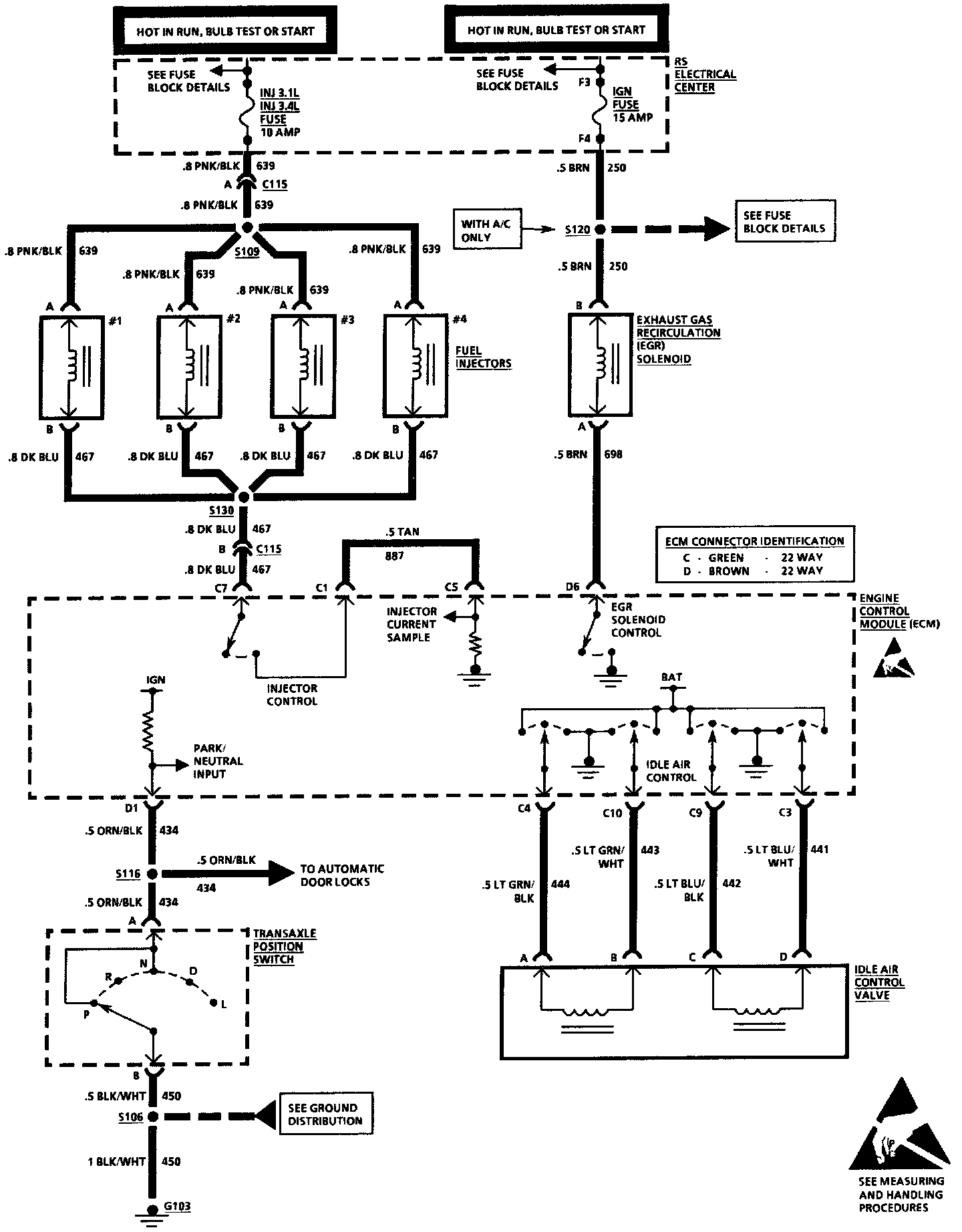

Multiport Fuel Injection: Idle Air Control, Fuel Control And Vehicle Speed Sensors:



Multiport Fuel Injection: Idle Air Control, Fuel Control And Vehicle Speed Sensors Cont.:
