System Specifications

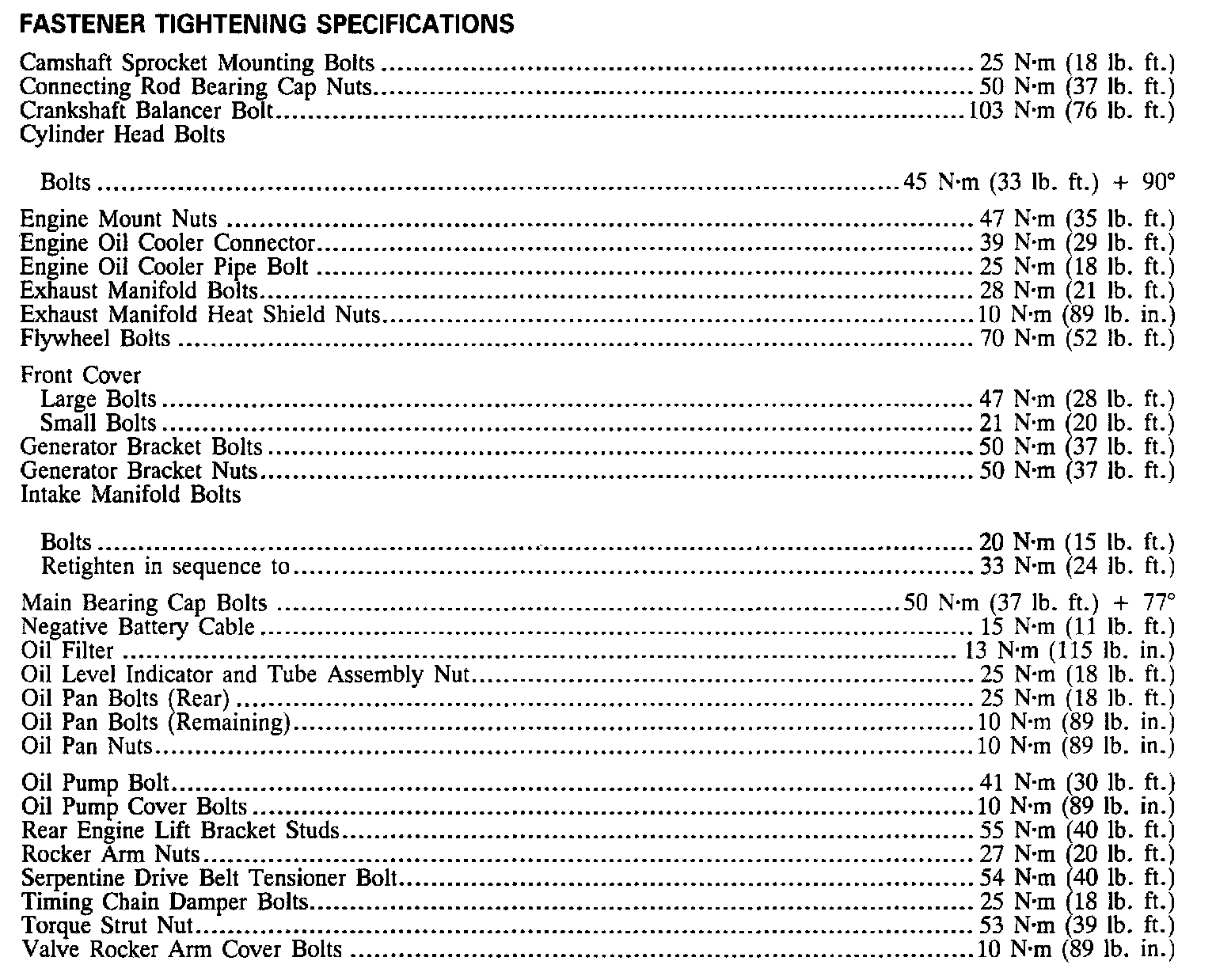

Torque Specifications:

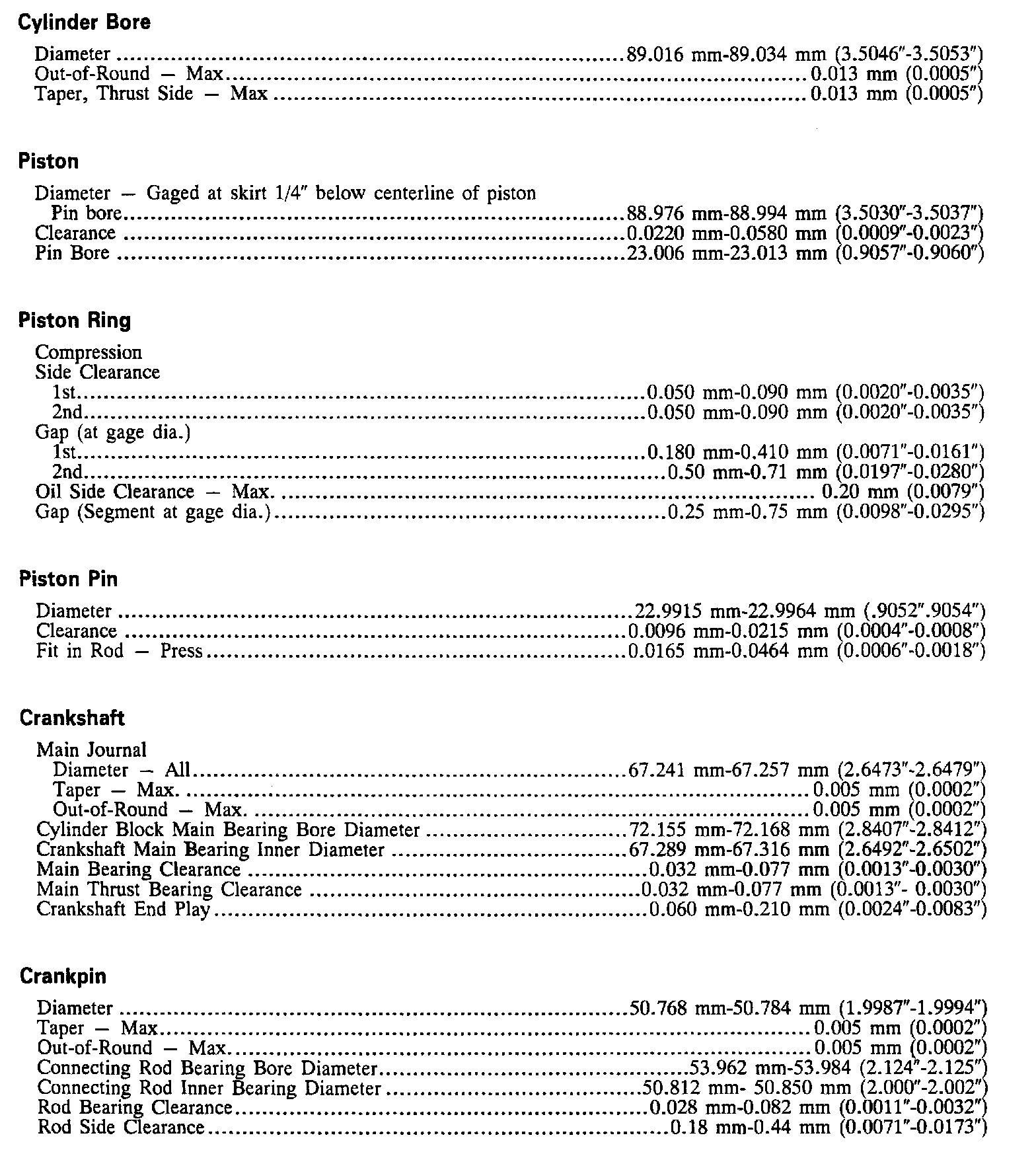

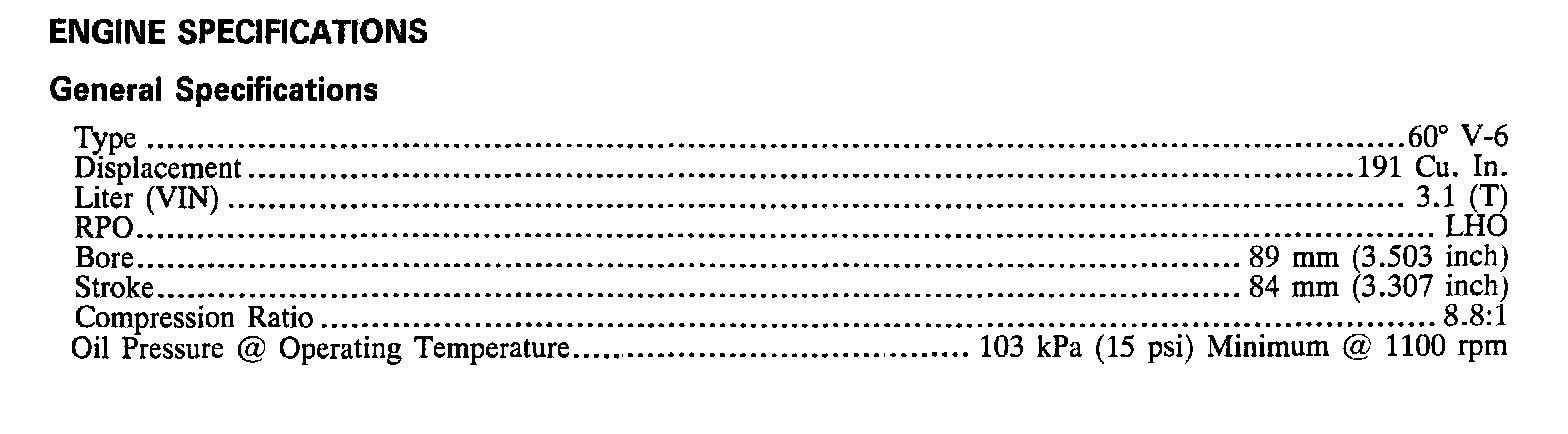

Engine Specifications:

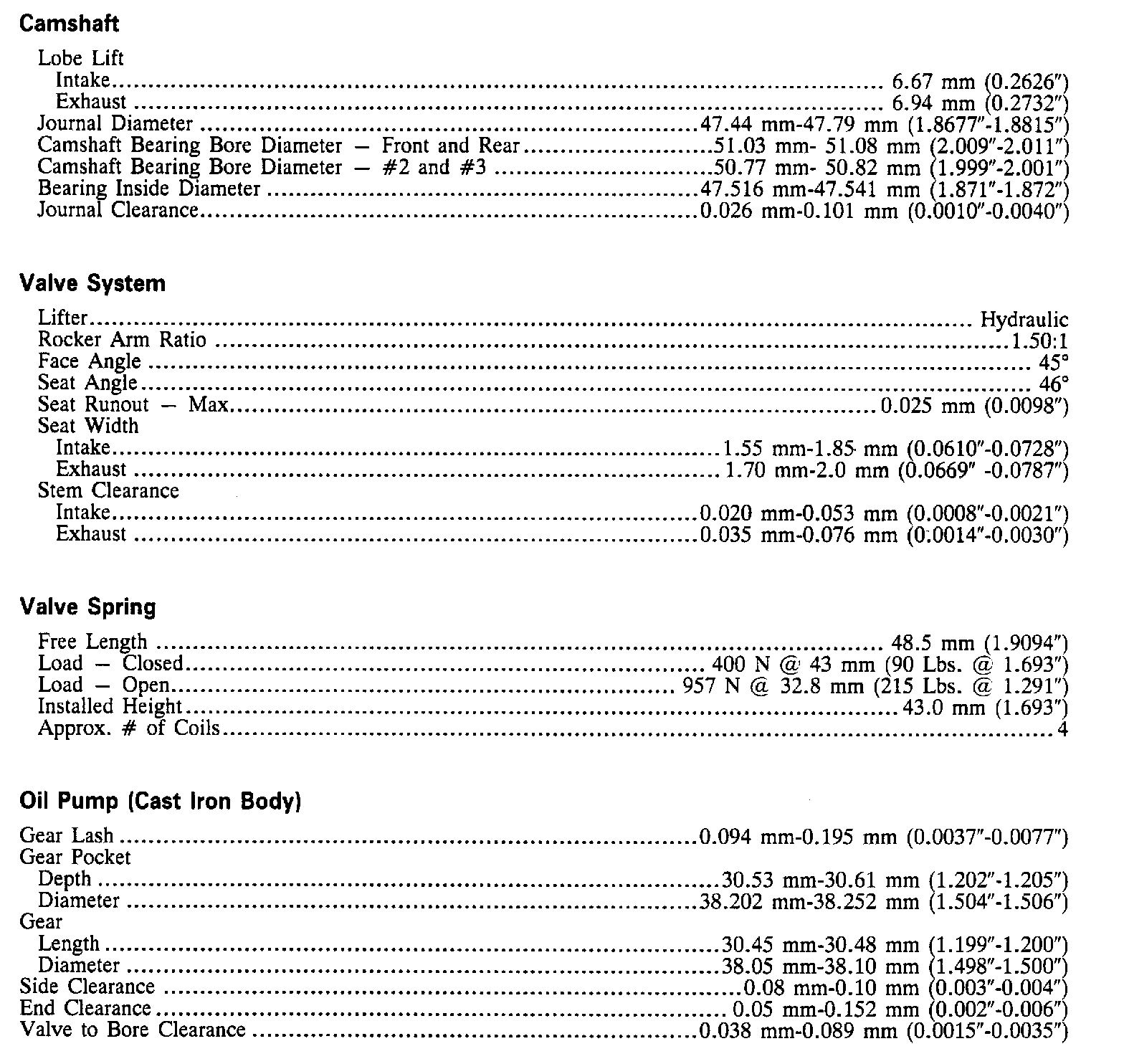

Continued Engine Specifications:






Continued Engine Specifications:






Intake Manifold Sequence:
