Engine Control Module
Engine Control Module

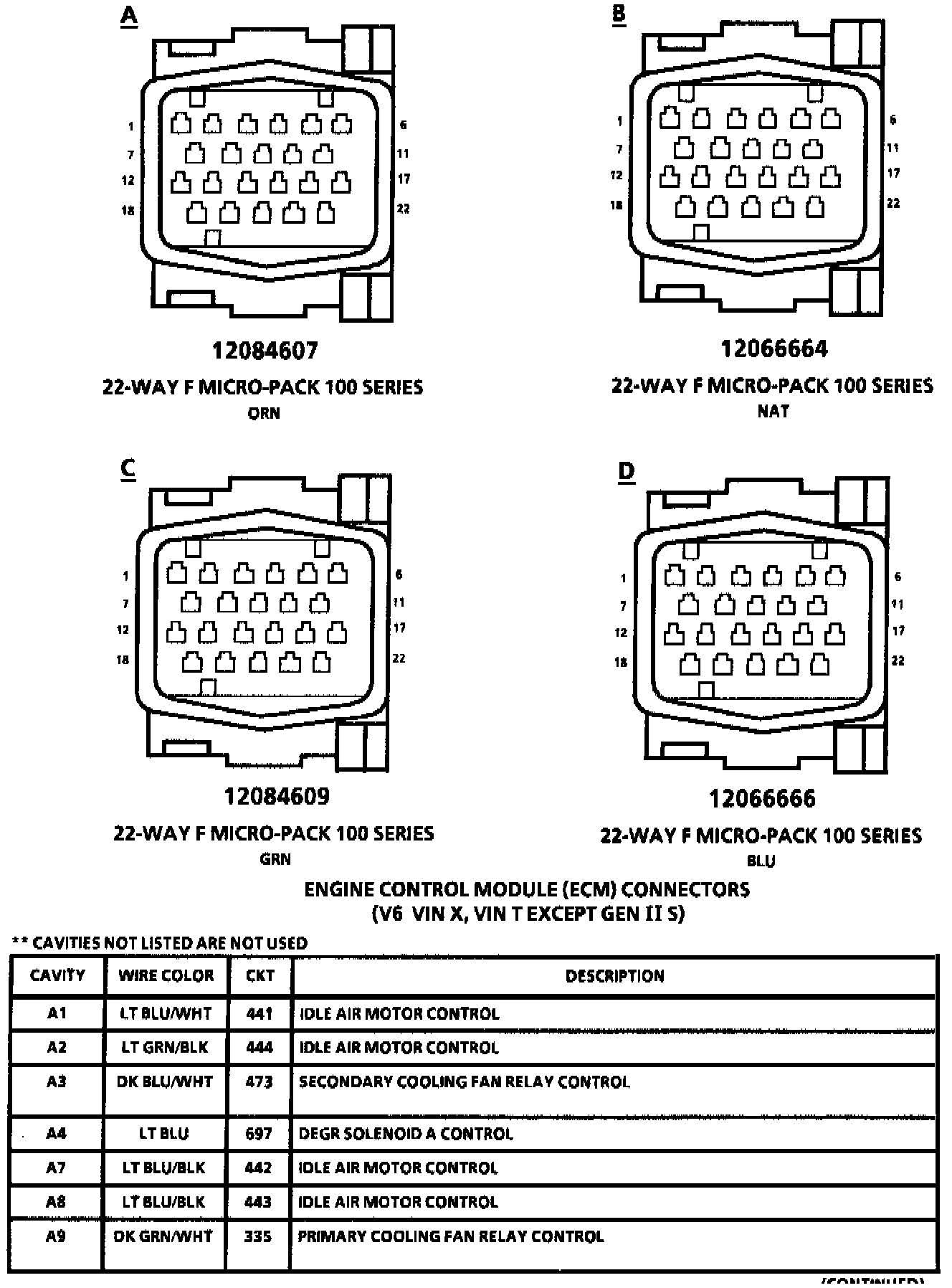

Engine Control Module (ECM):
ECM Connector:
ECM Connector:
