Home >> Chevrolet >> 1993 >> Lumina V6-204 3.4L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Blower Motor >> Blower Controls

Blower Controls

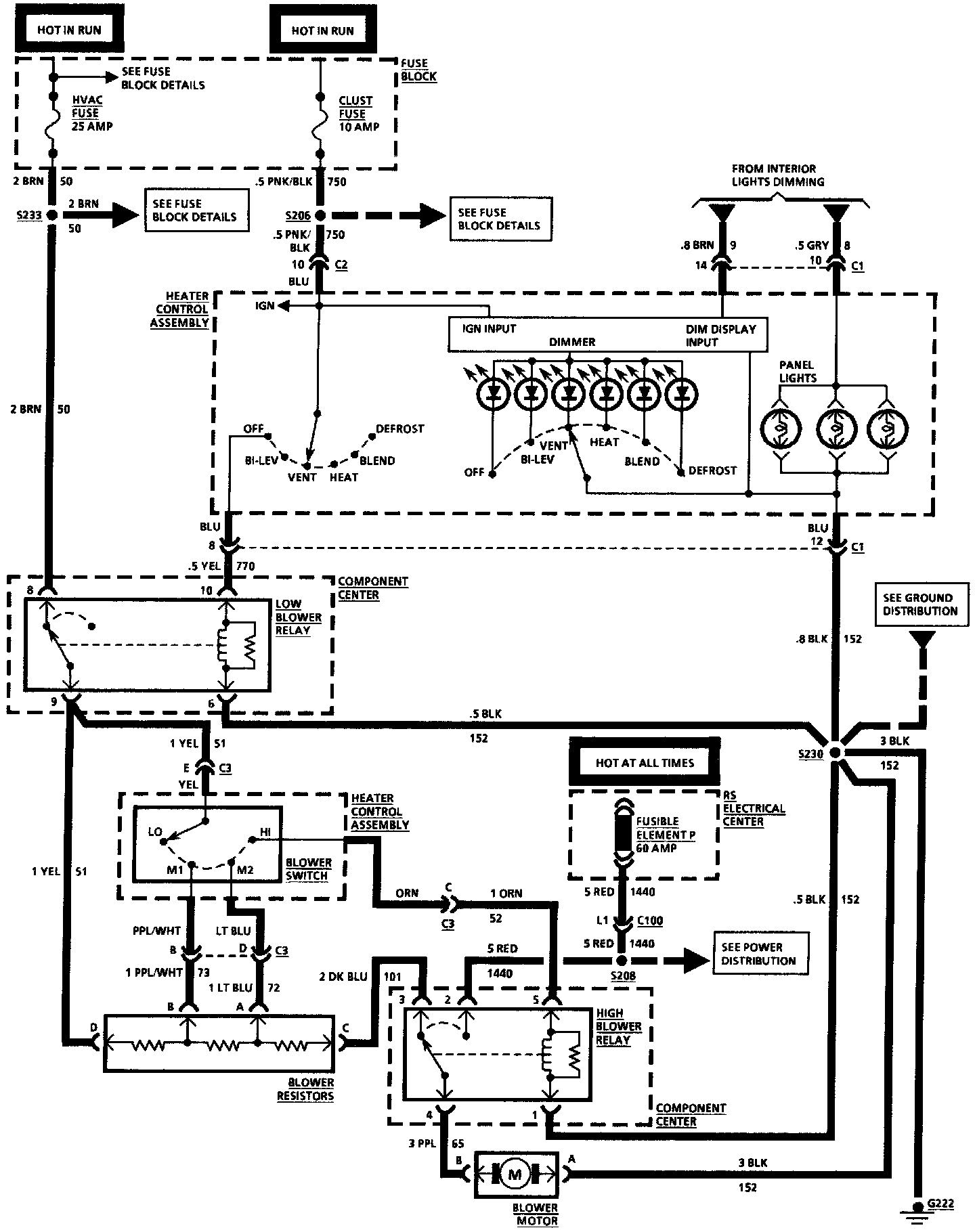

Heater (C40) Blower Controls:
