Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1993
>>
Lumina V6-204 3.4L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Air Delivery and Temperature Controls
Air Delivery and Temperature Controls

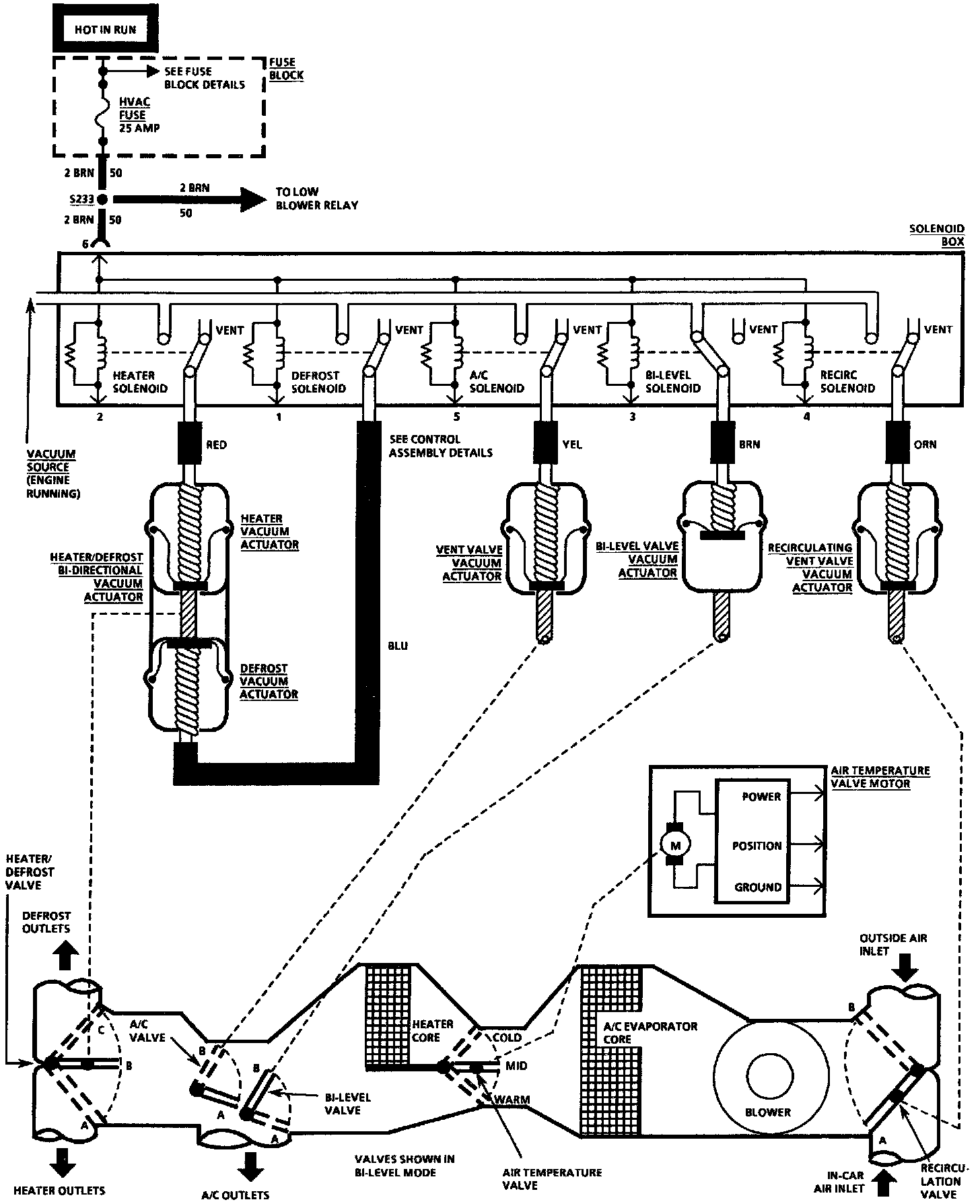

Vacuum; Air Delivery And Temperature Control:
