Home >> Chevrolet >> 1993 >> Lumina V6-204 3.4L DOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Gauges Cluster

Gauges Cluster

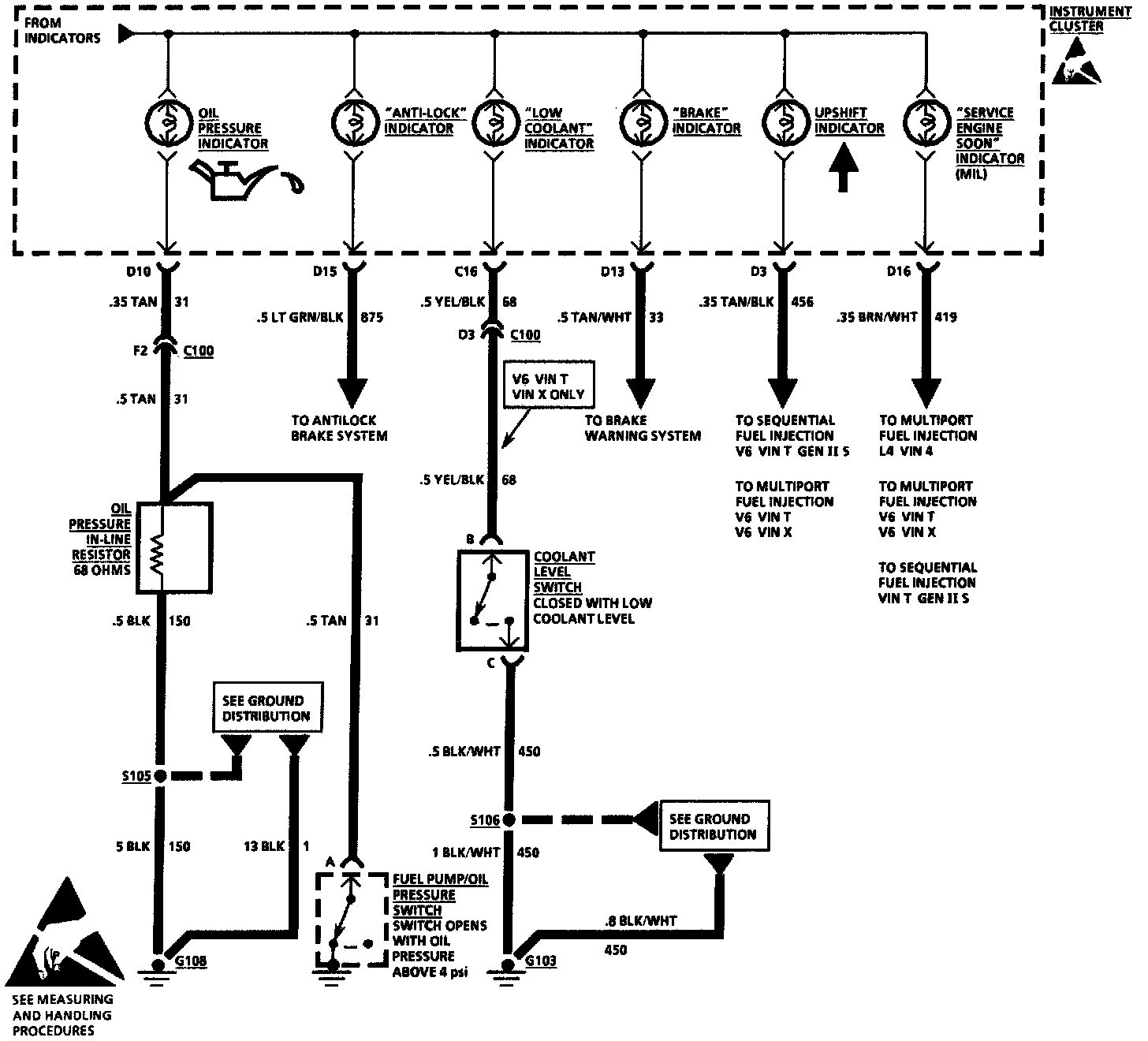

Instrument Cluster: With Gages:

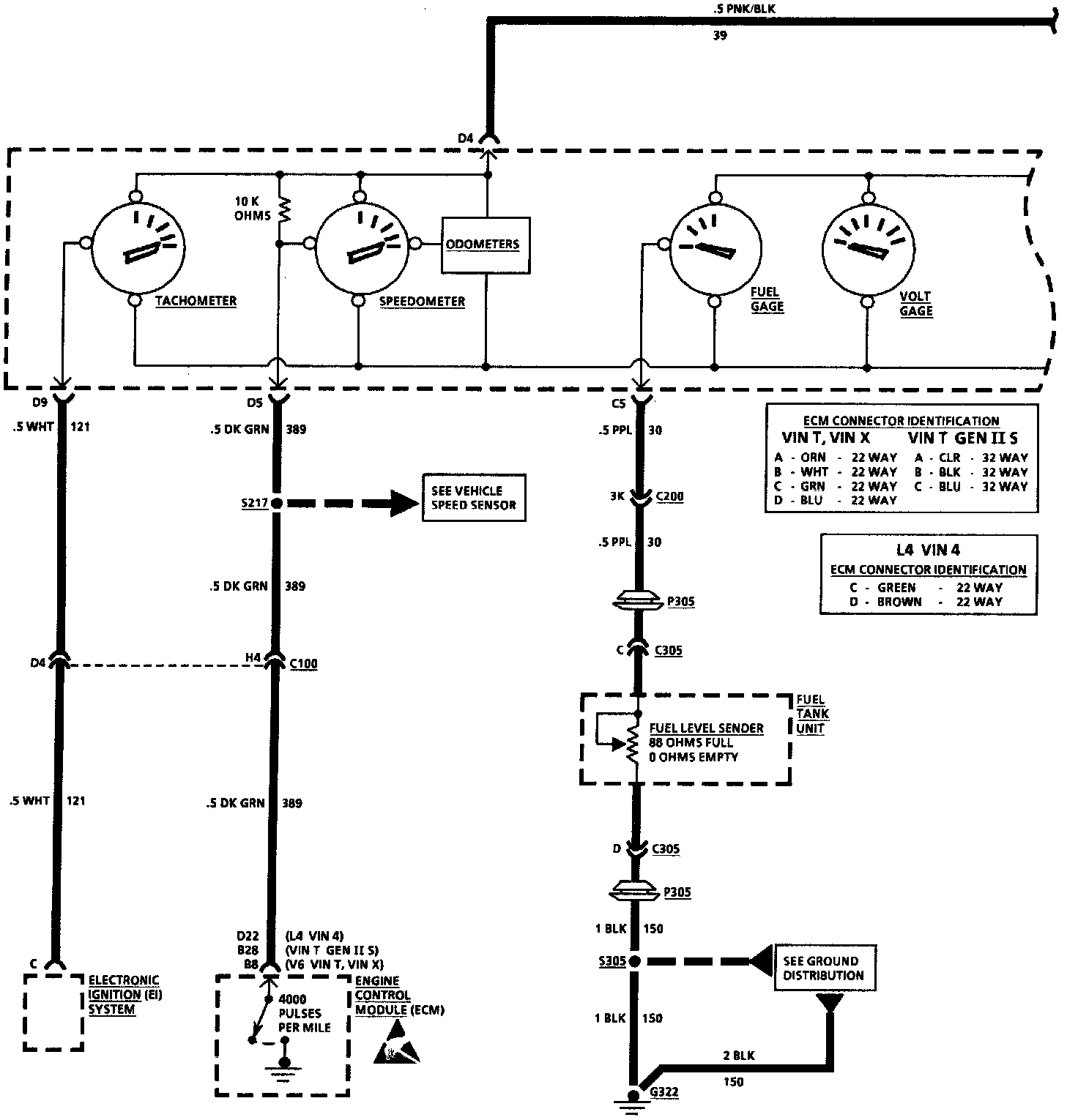

Instrument Cluster: With Gages Cont.:



Instrument Cluster: With Gages Cont.:



Instrument Cluster: With Gages Cont.:
