Diagnosis By Symptom - Interior Lights
Diagnosis By Symptom - Interior Lights

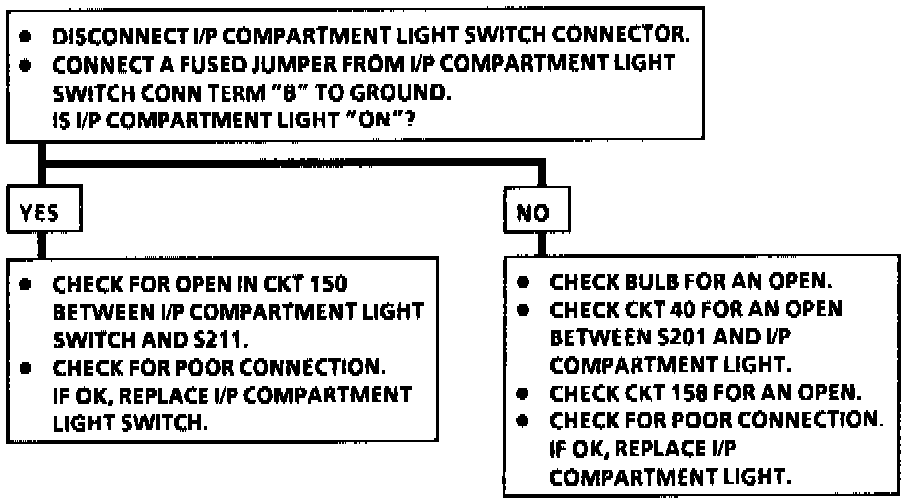

Chart 1 Instrument Panel Compartment Light Test:
