Ignition Control Module

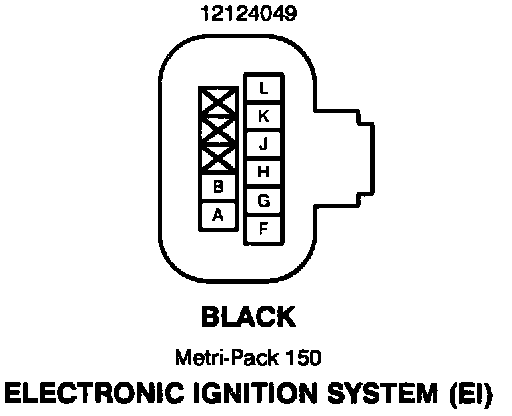

Harness Connector Faces: Electronic Ignition System (EI):

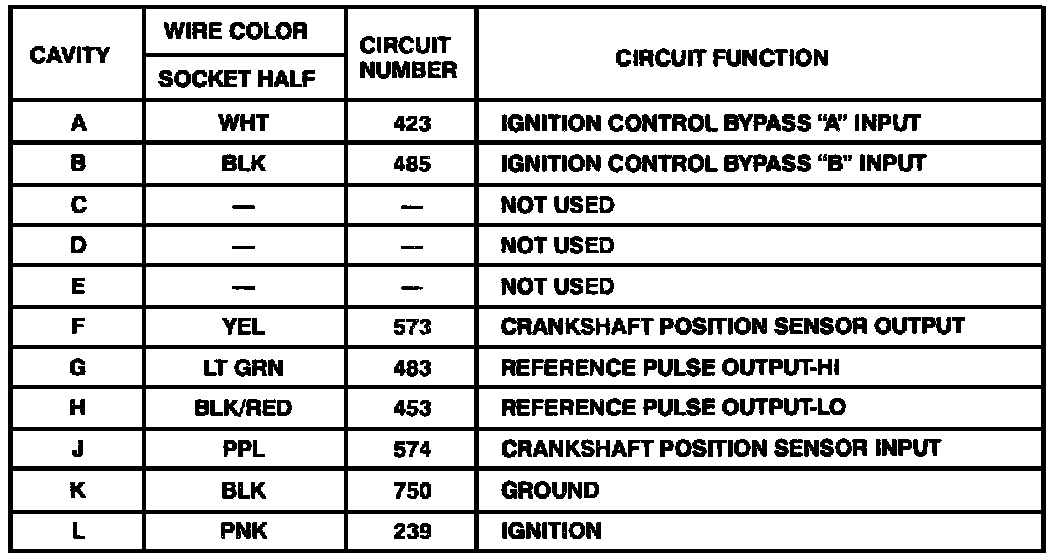

Harness Connector Faces: Electronic Ignition System (EI) (Description):
