Pinout Values and Diagnostic Parameters

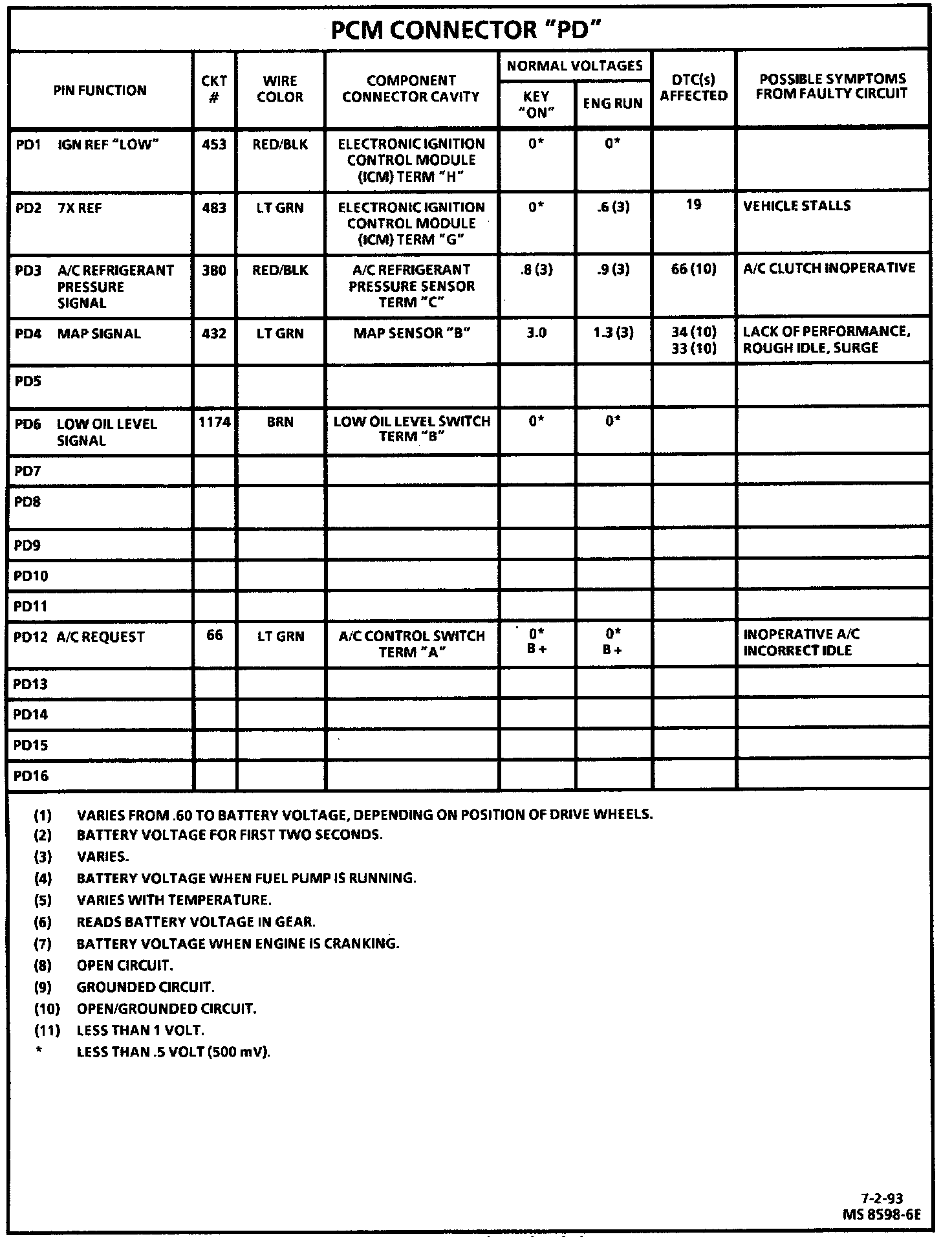

PCM Connector/Circuit Symptom Chart (1 Of 6):

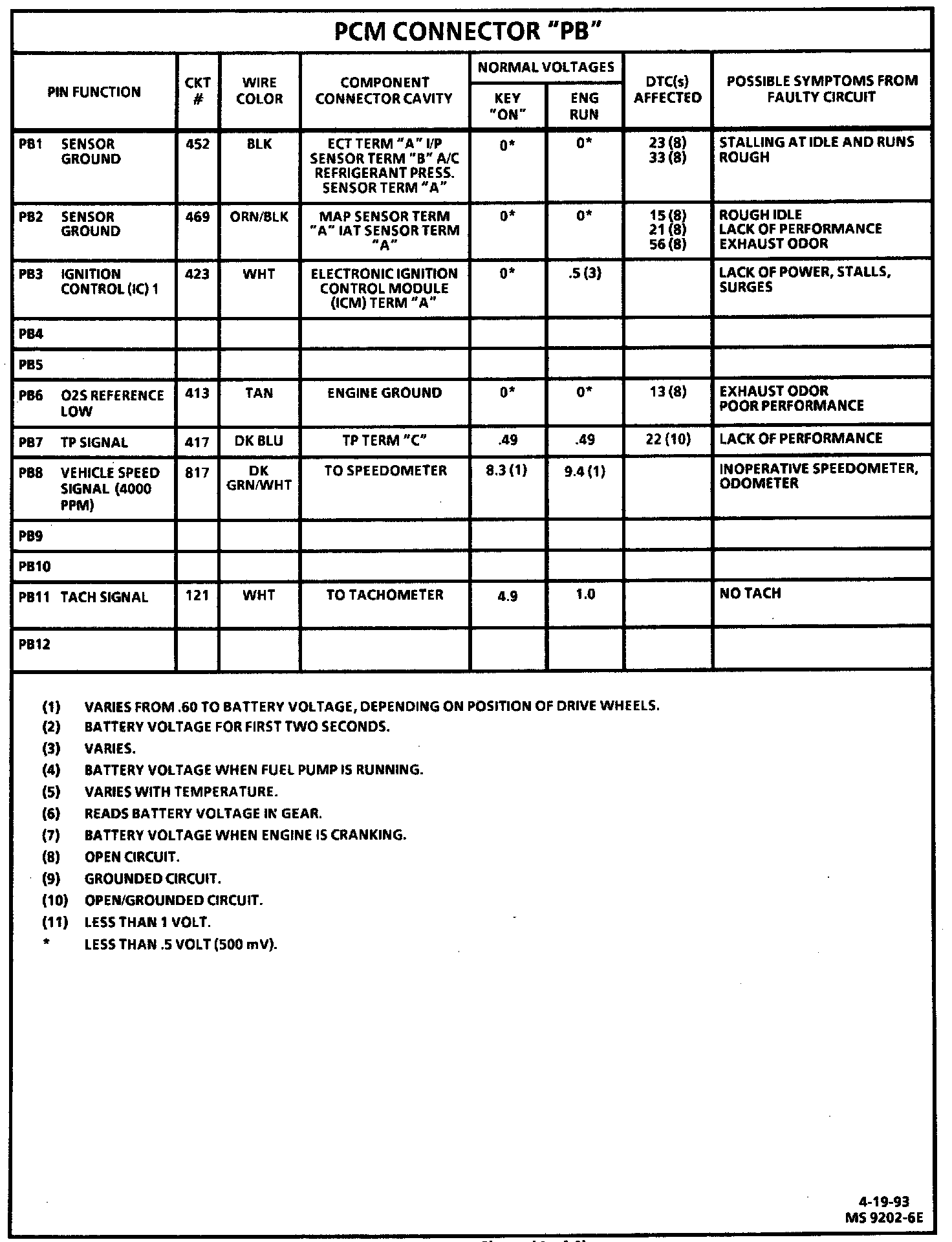

PCM Connector/Circuit Symptom Chart (2 Of 6):

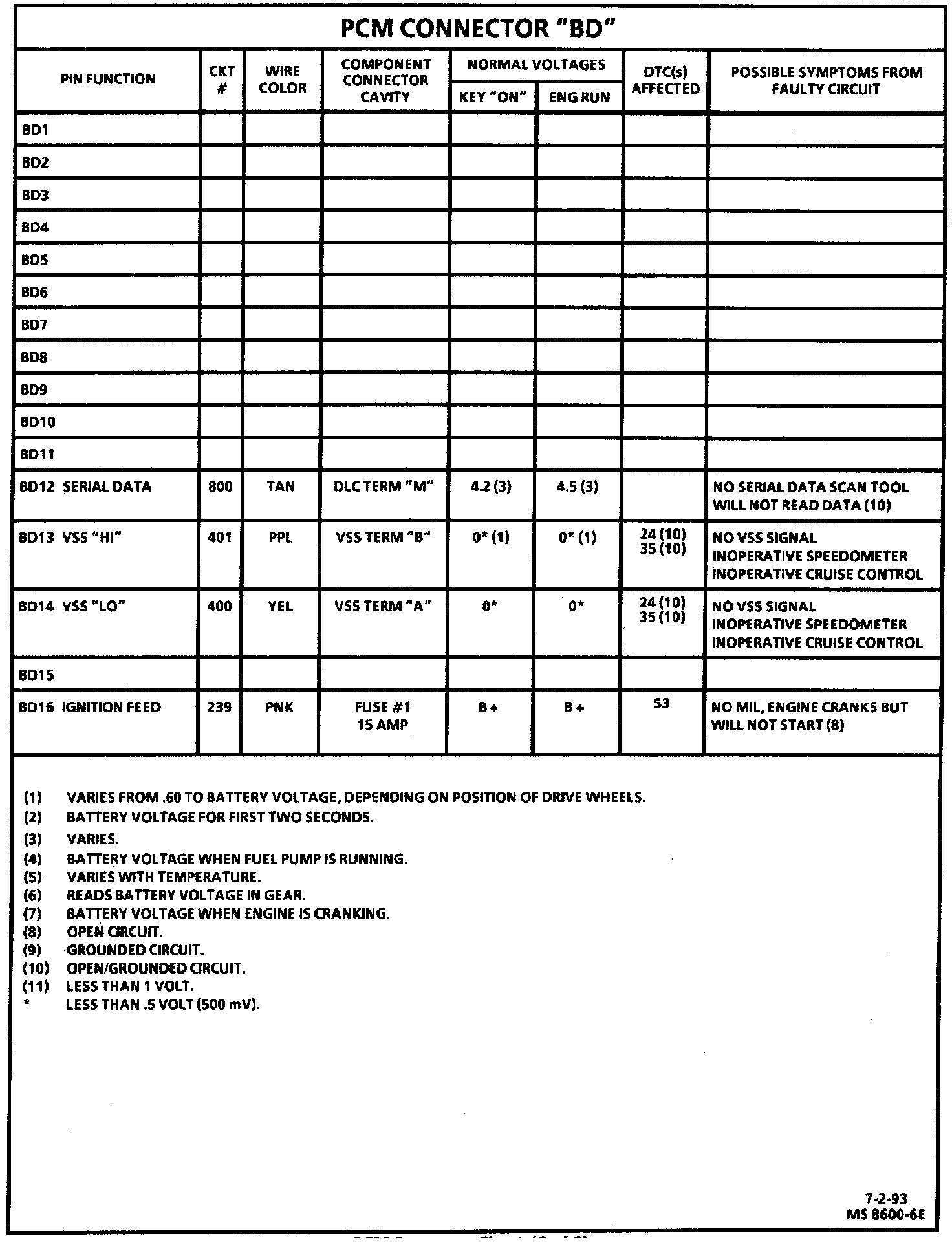

PCM Connector/Circuit Symptom Chart (3 Of 6):

PCM Connector/Circuit Symptom Chart (4 Of 6):

PCM Connector/Circuit Symptom Chart (5 Of 6):

PCM Connector/Circuit Symptom Chart (6 Of 6):
