Beretta L4-138 2.3L DOHC QUAD 4 HO MFI VIN A
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Injectors & Vehicle Data Sensors
Fuel Injectors & Vehicle Data Sensors

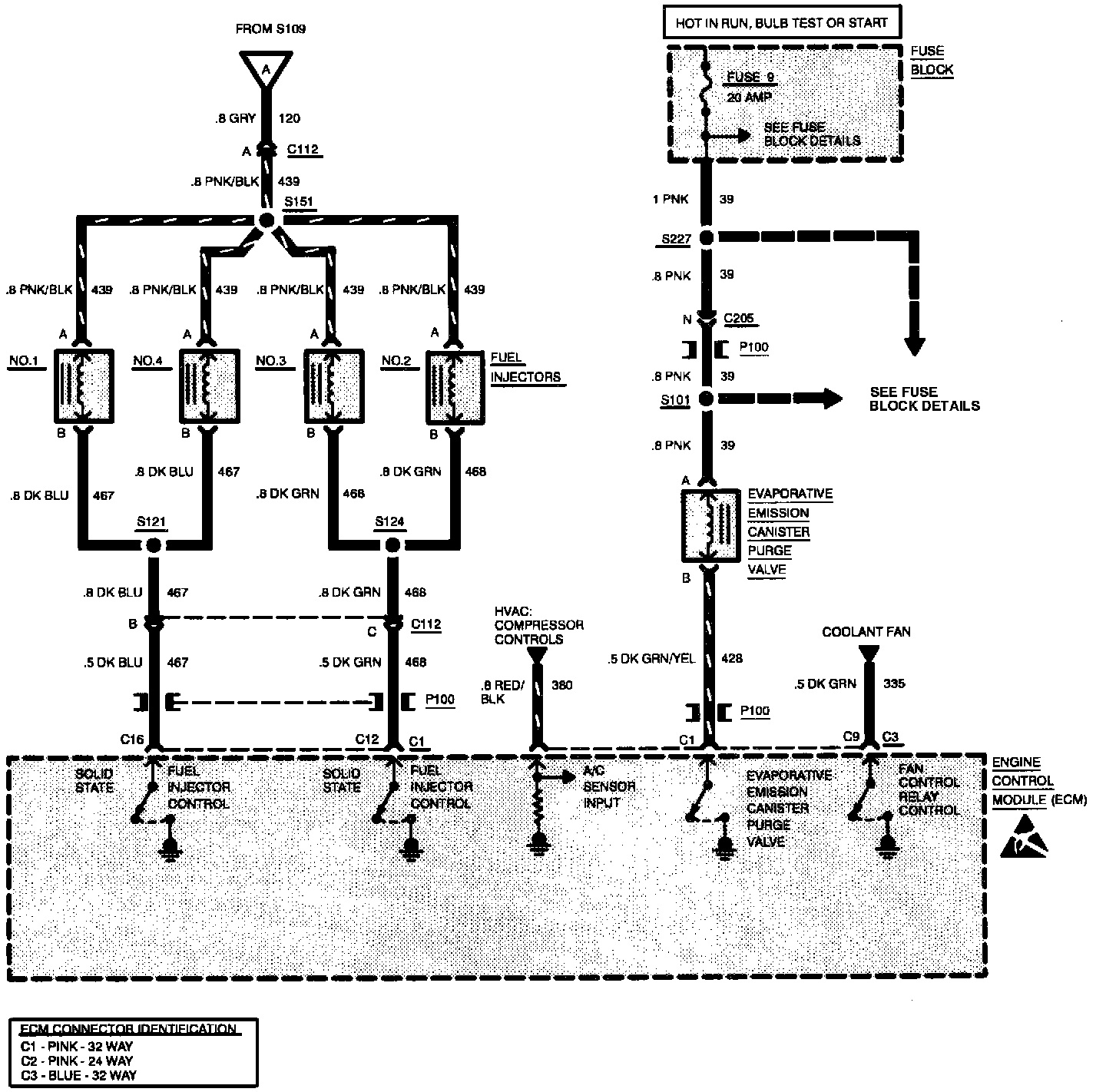

Multiport Fuel Injection: Injectors And Vehicle Data Sensors:
