Home >> Chevrolet >> 1994 >> Beretta L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Compressor HVAC

Compressor HVAC

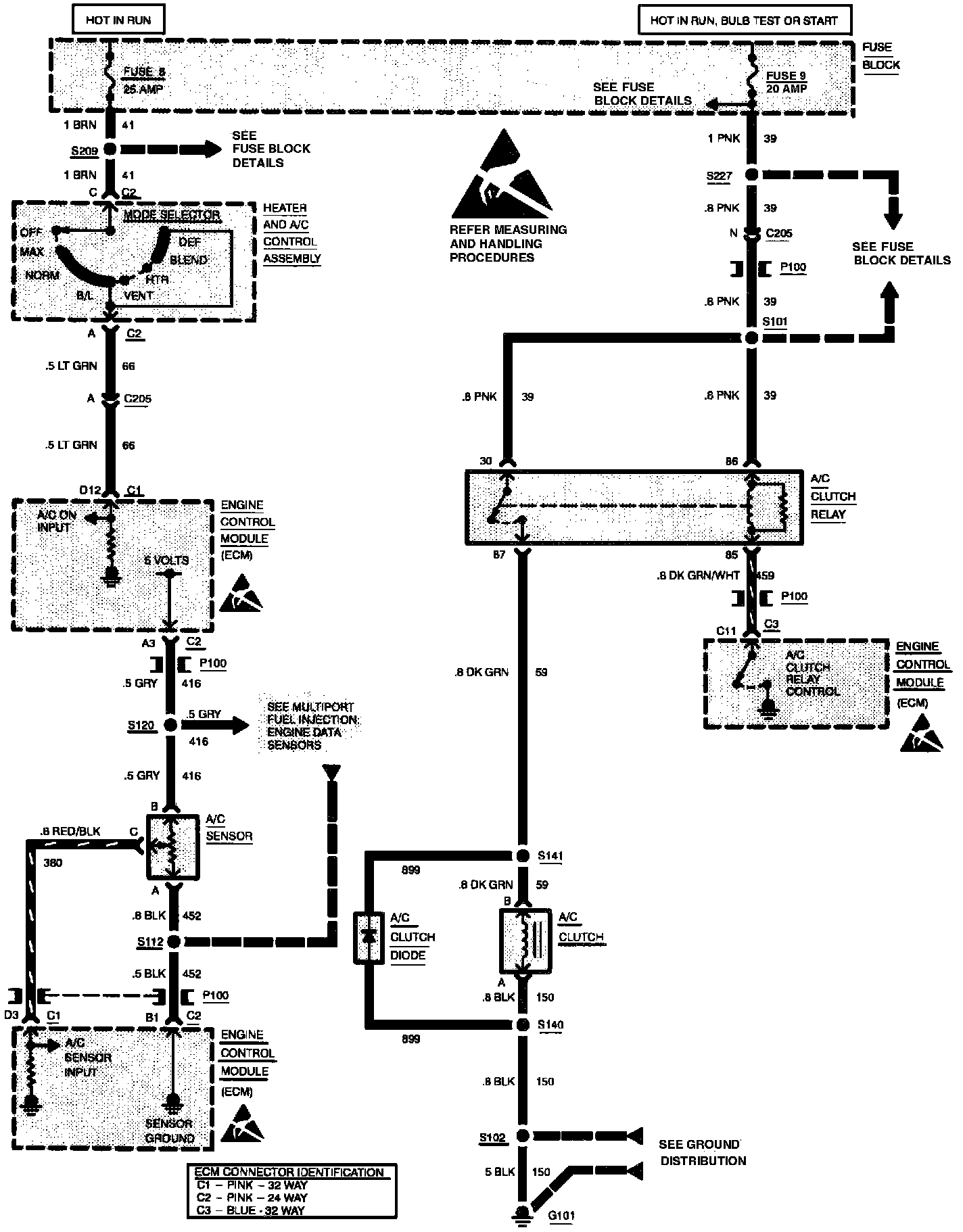

HVAC: Compressor Control- C60, Manual (Part 1 Of 3):
