Pictorial Views

Relay Location:

1 = ENGINE HARNESS
2 = BLOWER MOTOR
3 = ABS RELAY CONNECTOR
4 = ABS LEADS
5 = BLOWER MOTOR CONNECTOR
6 = COOLING FAN RELAY
7 = FUEL PUMP RELAY
8 = BLOWER MOTOR RELAY
9 = A/C COMPRESSOR RELAY

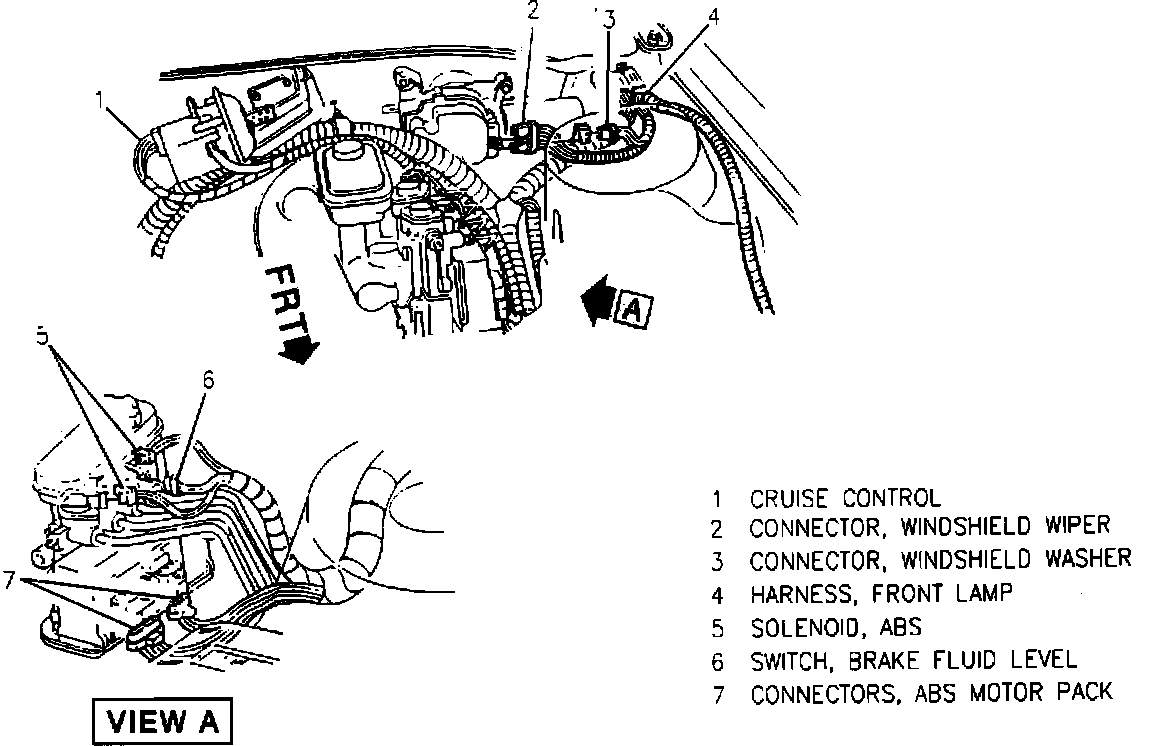

Connector Locations:

1 = CRUISE CONTROL
2 = WINDSHIELD WIPER CONNECTOR
3 = WINDSHIELD WASHER CONNECTOR
4 = FRONT LAMP HARNESS
5 = ABS SOLENOID
6 = BRAKE FLUID LEVEL SWITCH
7 = ABS MOTOR PACK CONNECTORS

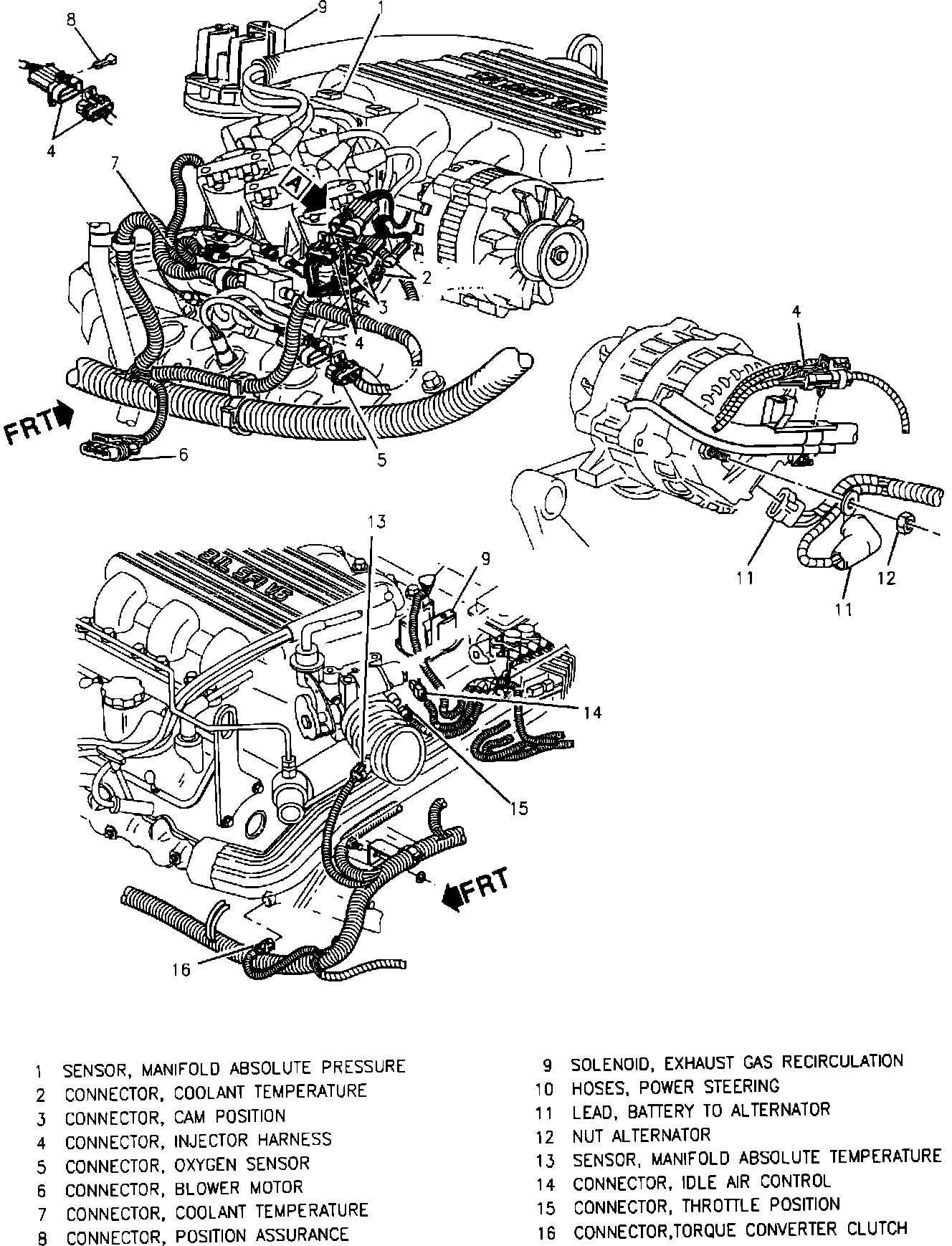

Connector Locations:

1 = MAP SENSOR
2 = COOLANT TEMPERATURE CONNECTOR
3 = CAM POSITION CONNECTOR
4 = INJECTOR HARNESS CONNECTOR
5 = OXYGEN SENSOR CONNECTOR
6 = BLOWER MOTOR CONNECTOR
7 = COOLANT TEMPERATURE CONNECTOR
8 = POSITION ASSURANCE CONNECTOR
9 = EGR SOLENOID
10 = POWER STEERING HOSES
11 = BATTERY TO ALTERNATOR LEAD
12 = ALTERNATOR NUT
13 = MAT SENSOR
14 = IAC CONNECTOR
15 = TP CONNECTOR
16 = TCC CONNECTOR

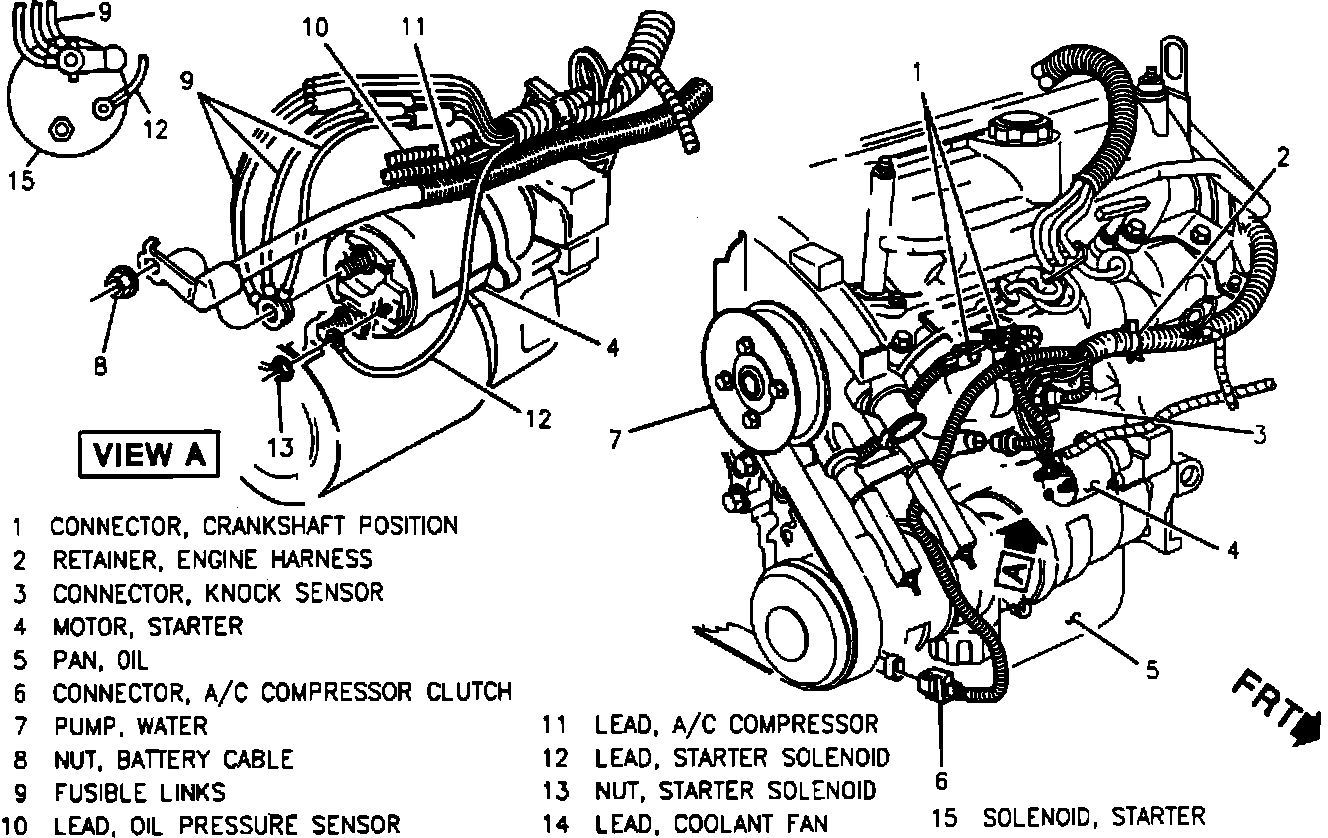

Connector Location:

1 = CRANKSHAFT POSITION CONNECTOR
2 = ENGINE HARNESS RETAINER
3 = KNOCK SENSOR CONNECTOR
4 = STARTER MOTOR
5 = OIL PAN
6 = A/C COMPRESSOR CLUTCH CONNECTOR
7 = WATER PUMP
8 = BATTERY CABLE NUT
9 = FUSIBLE LINKS
10 = OIL PRESSURE SENSOR LEAD
11 = A/C COMPRESSOR LEAD
12 = STARTER SOLENOID LEAD
13 = STARTER SOLENOID NUT
14 = COOLANT FAN LEAD
15 = STARTER SOLENOID
