Audible Warning Device

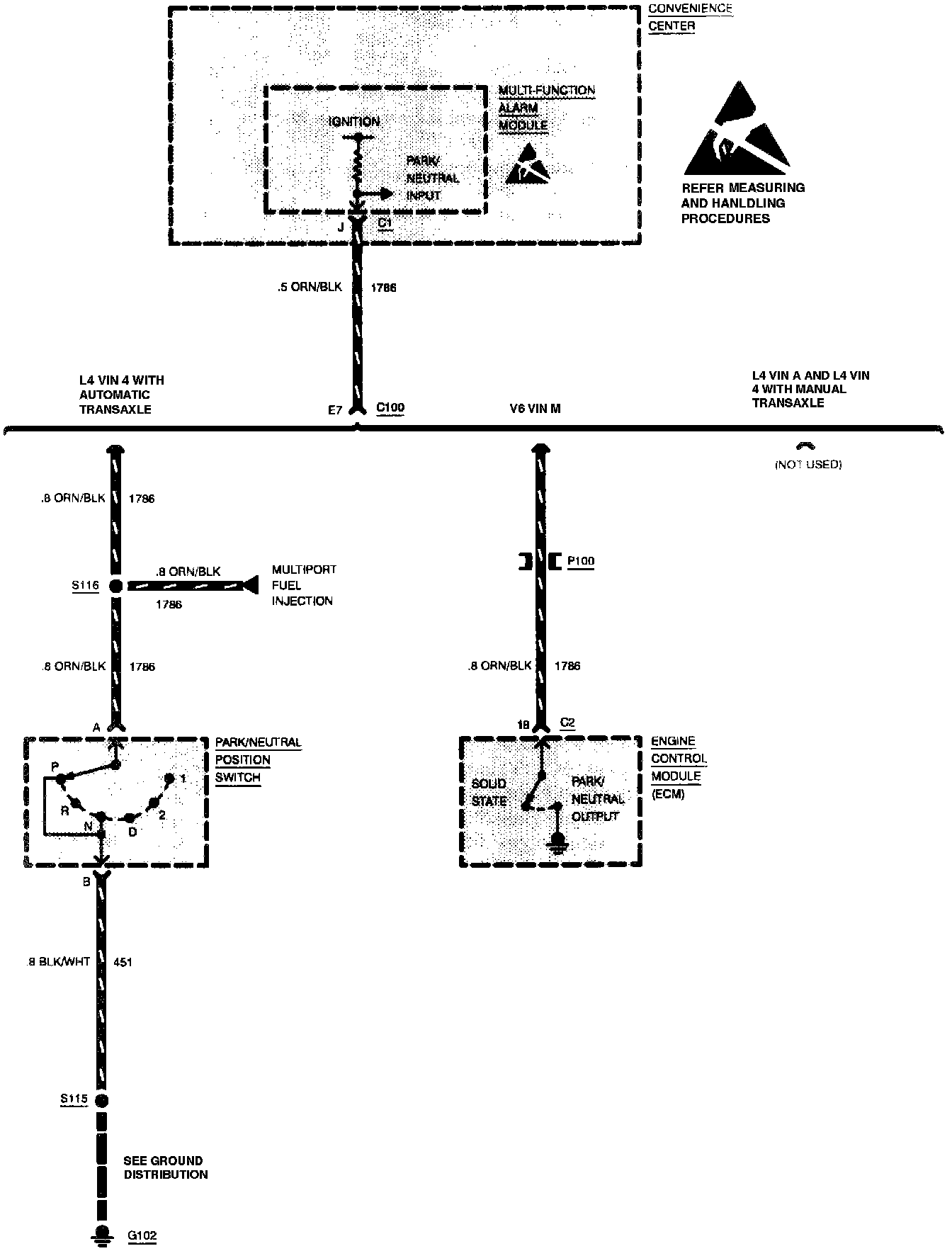

Audible Warning: Chime (Part 1 Of 4):

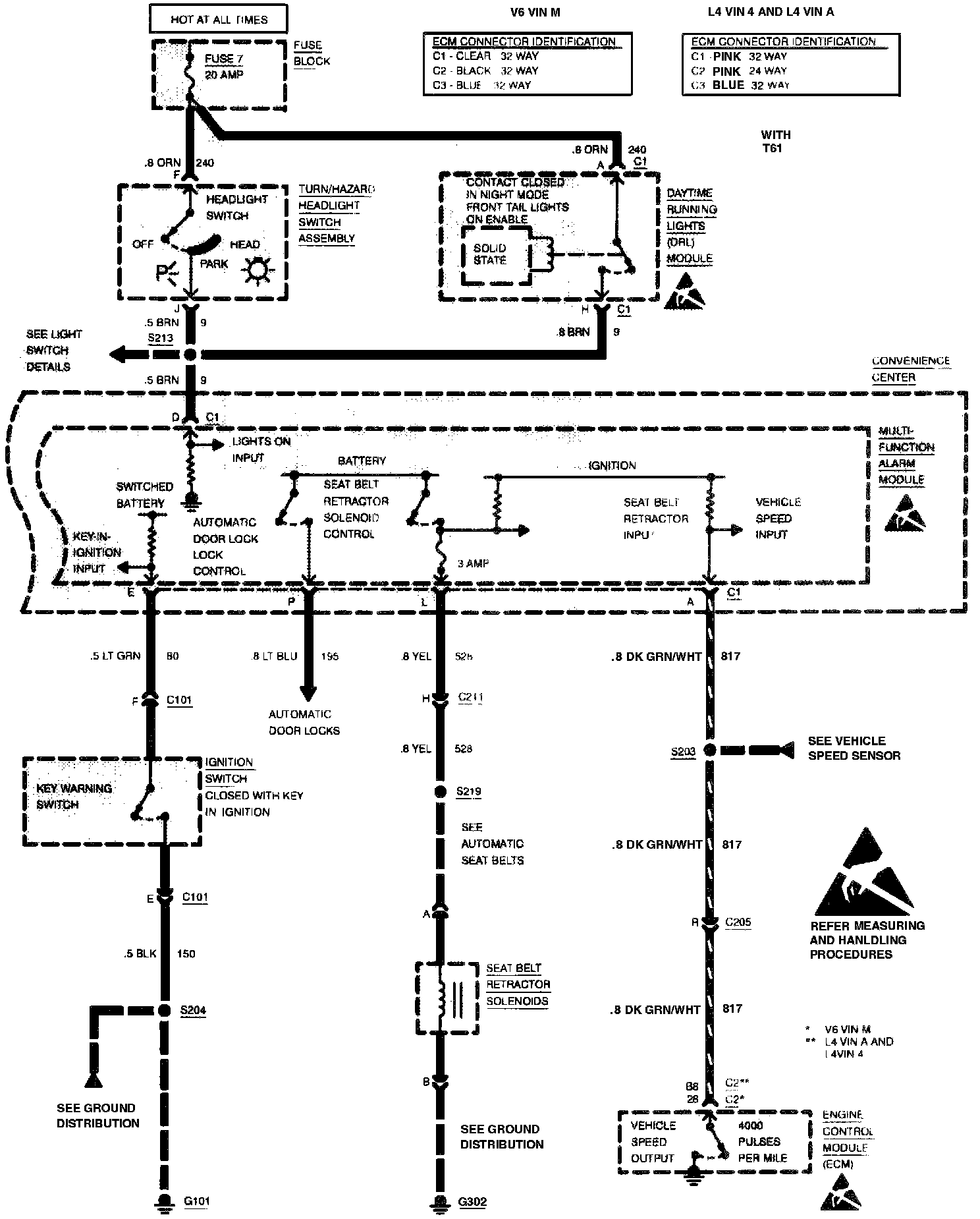

Audible Warning: Chime (Part 2 Of 4):




Audible Warning: Chime (Part 3 Of 4):




Audible Warning: Chime (Part 4 Of 4):
