Home >> Chevrolet >> 1994 >> Beretta V6-3100 3.1L MFI VIN M >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Heating and Air Conditioning

Heating and Air Conditioning

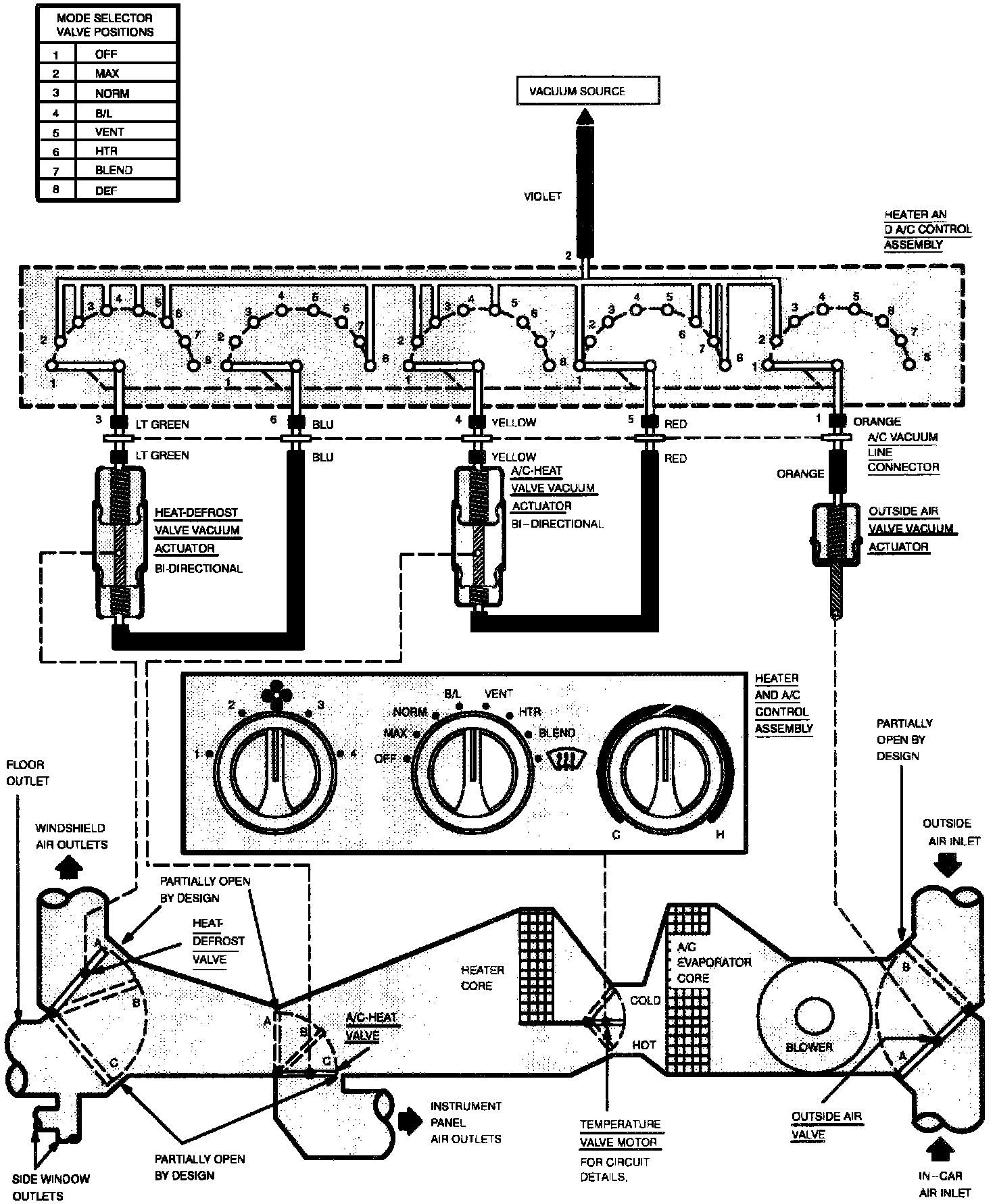

HVAC: Air Delivery- C60, Manual:

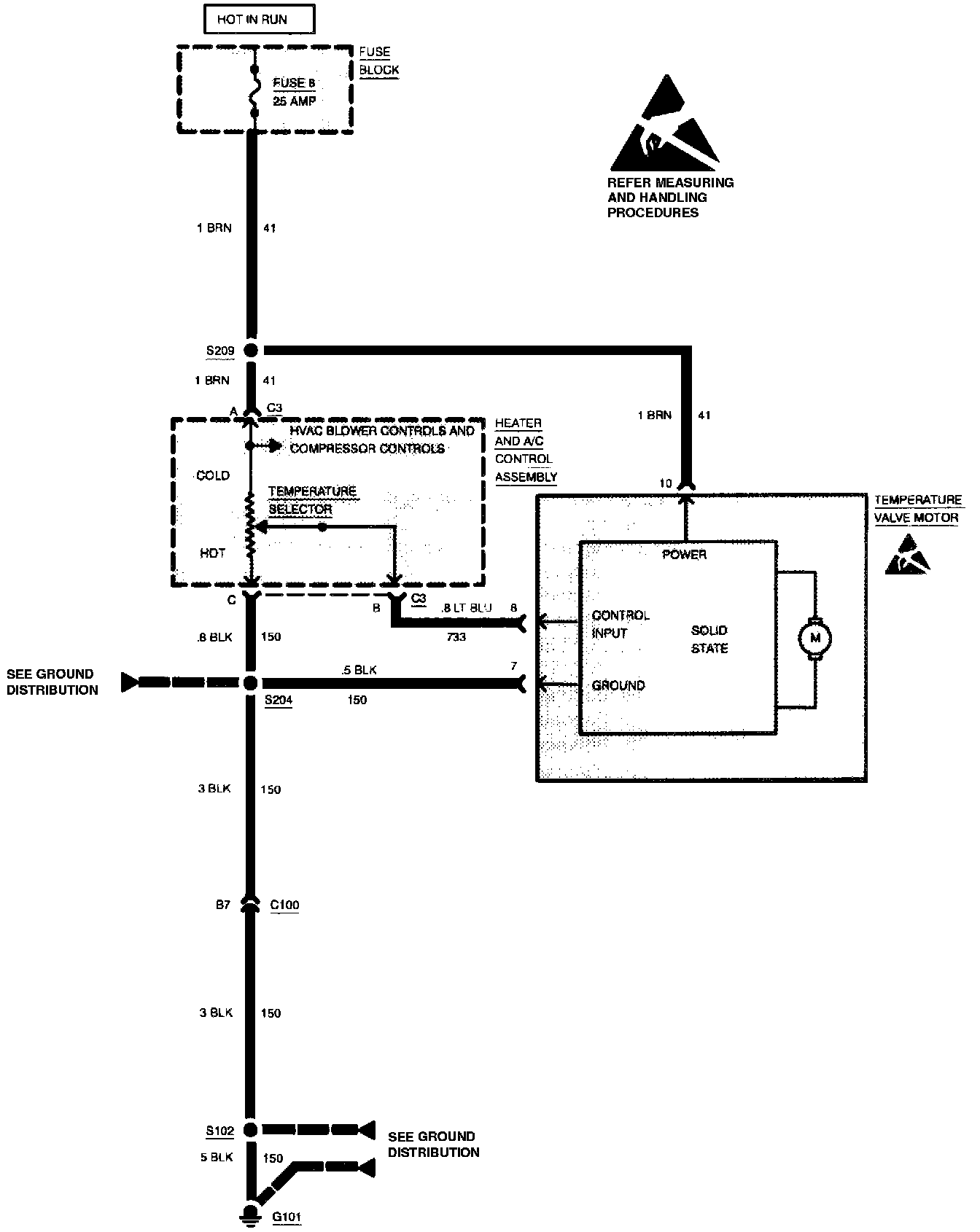

HVAC: Air Delivery- C60, Manual:
