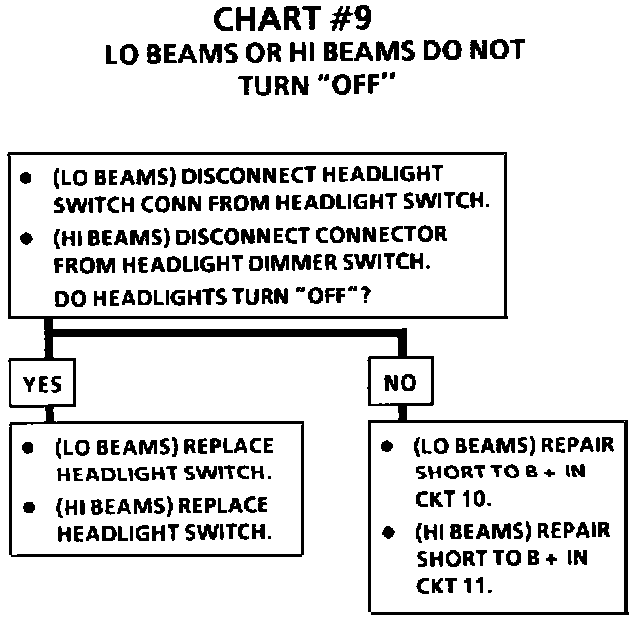

Chart #9 LO Beams Or HI Beams Do Not Turn OFF
Chart #9 LO Beams Or HI Beams Do Not Turn OFF
Chart #9 LO Beams Or HI Beams Do Not Turn OFF:
