Home >> Chevrolet >> 1994 >> Caprice V8-265 4.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Blower Motor

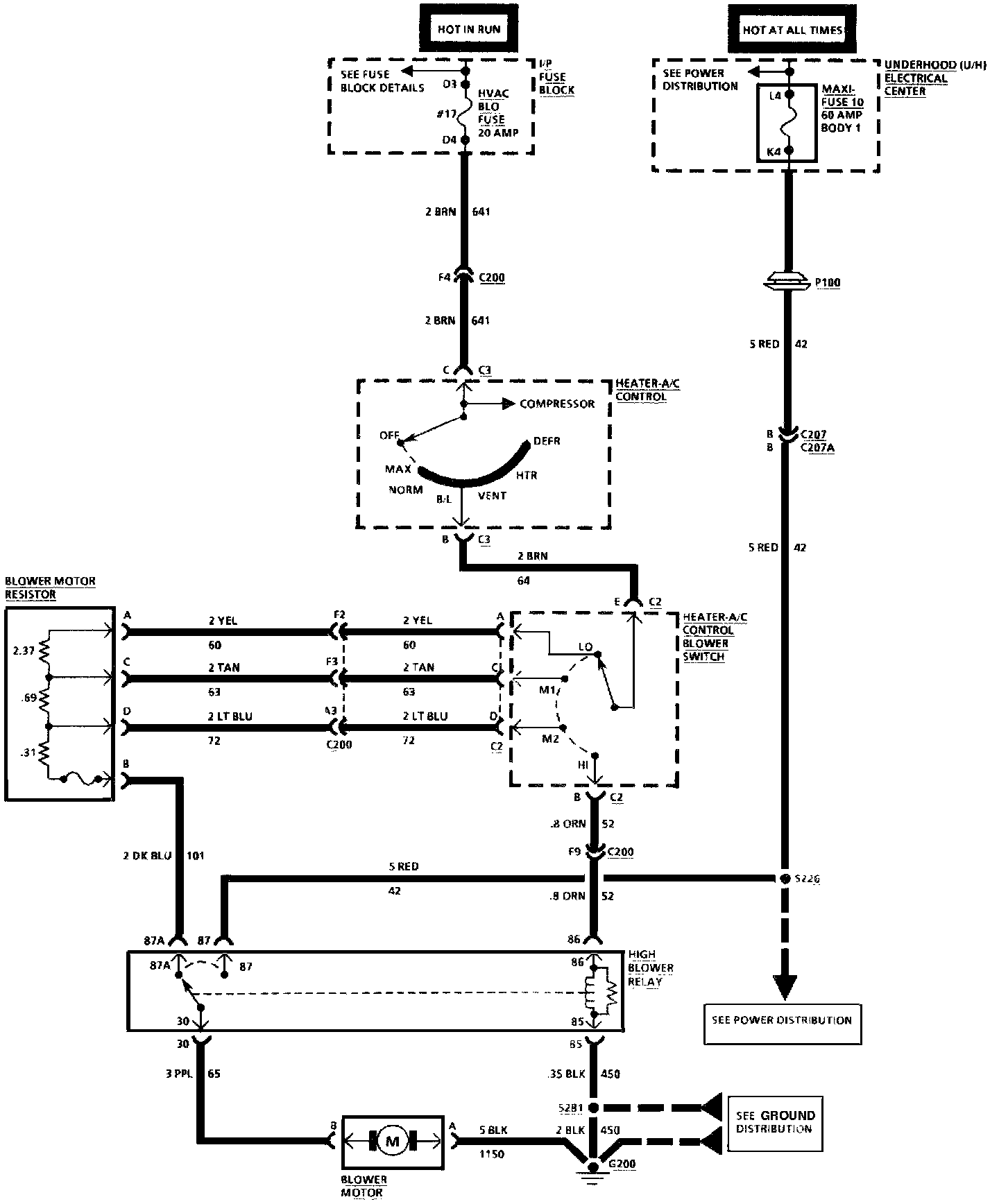

Blower Motor

HVAC Blower Control: Manual A/C (C60):
