Chart #1 Headlights and/or Tail, FRT Park & Opera Lamp on
Chart #1 Headlights and/or Tail, FRT Park & Opera Lamp on

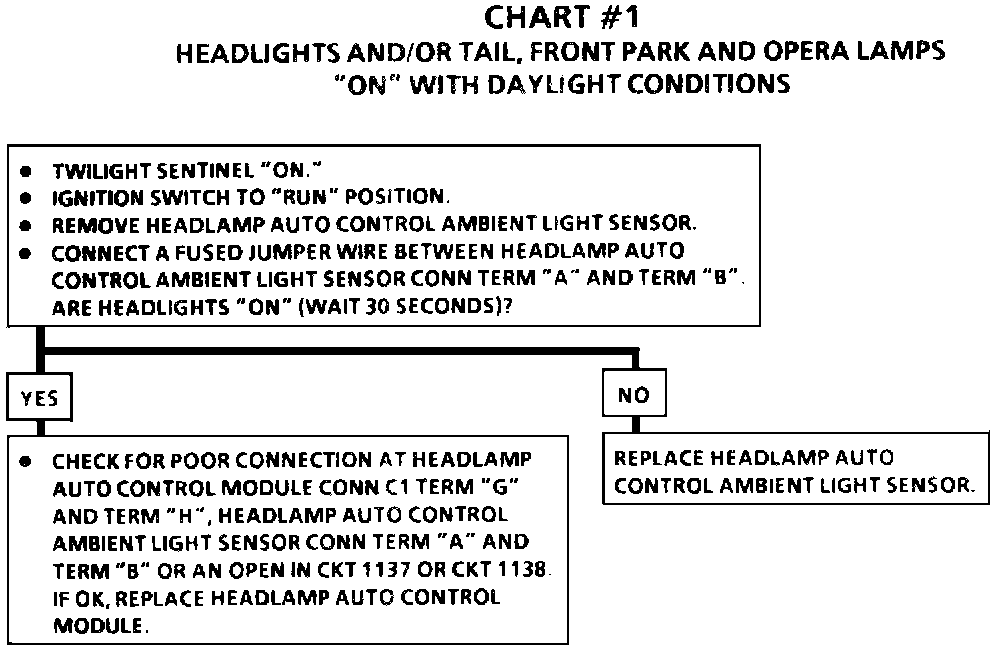

Chart #1 Headlights And/Or Tail, Front Park & Opera Lamps ON With Daylight Conditions:
