Tail/Turn Stoplamp, Rear Inboard
Tail/Turn Stoplamp, Rear Inboard

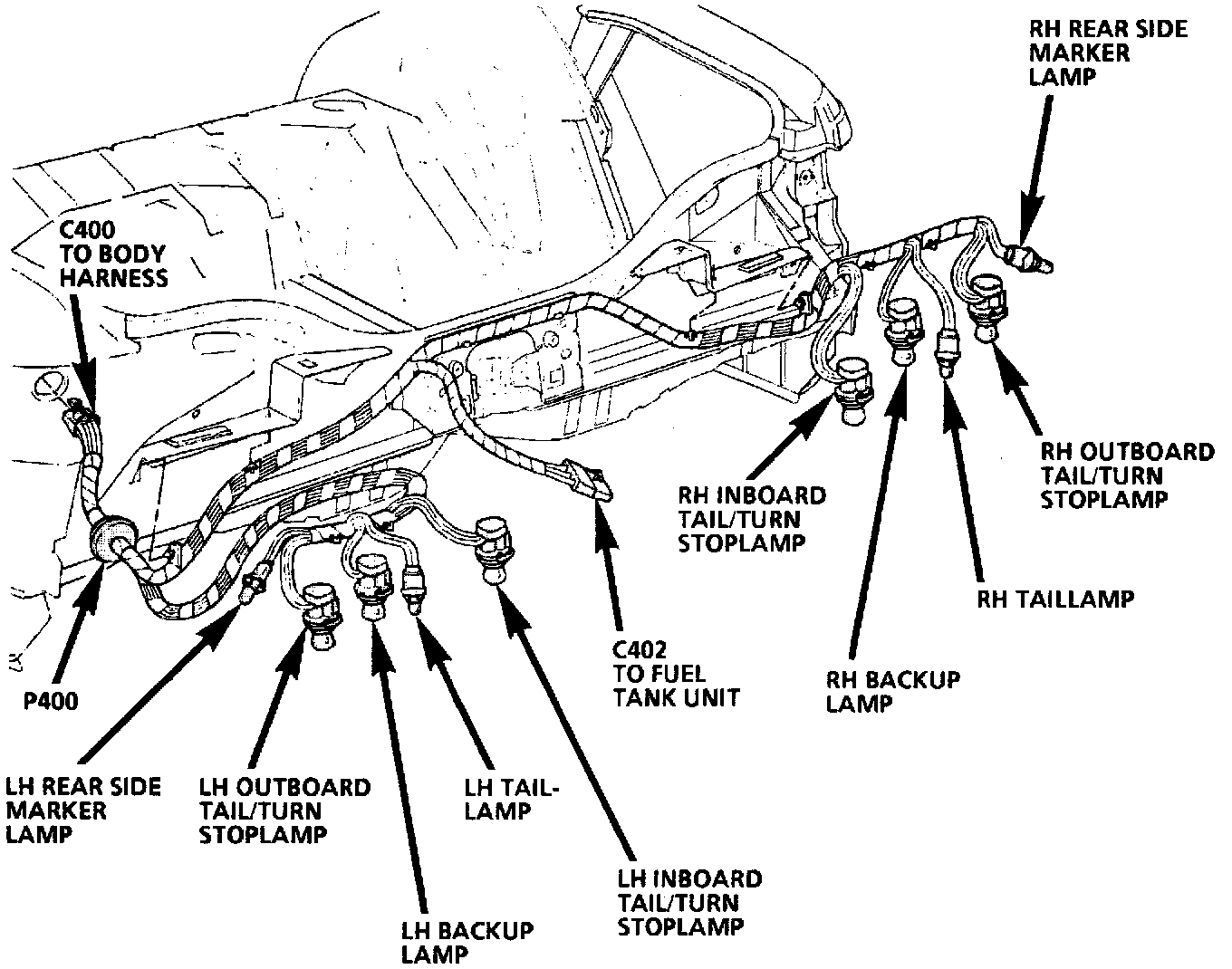

Rear Lamps:
LH Taillamp Harness (Wagon):
