System Diagram

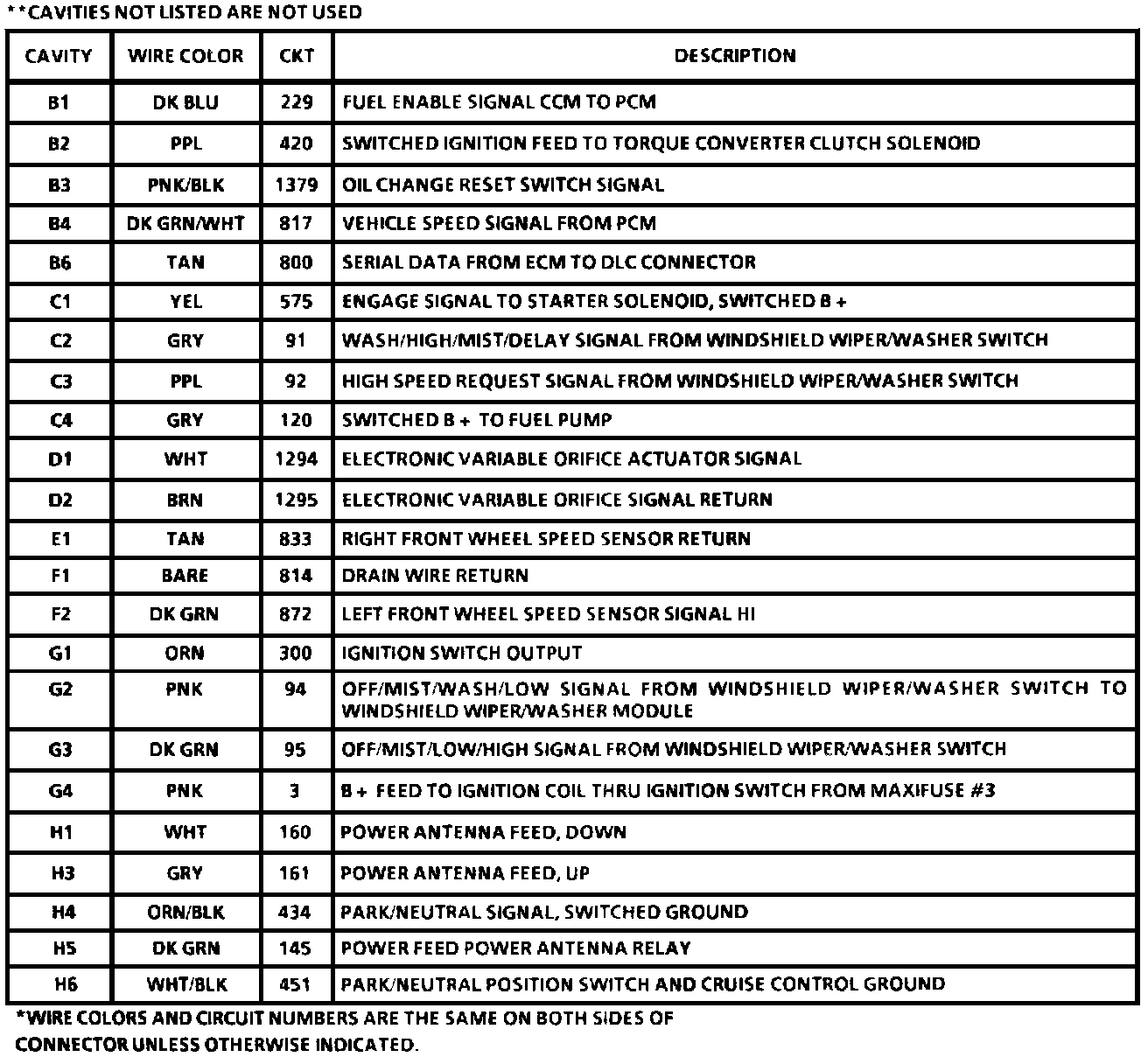

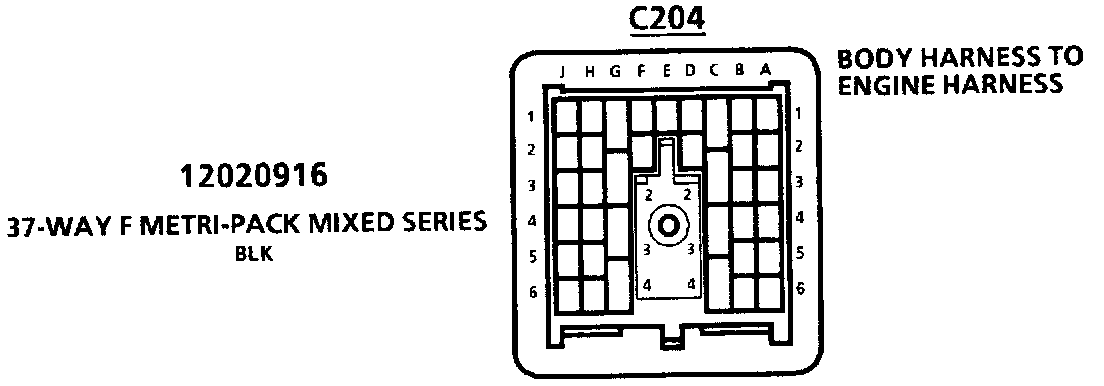

C204: Body Harness To Engine Harness:




C204: Body Harness To Engine Harness:

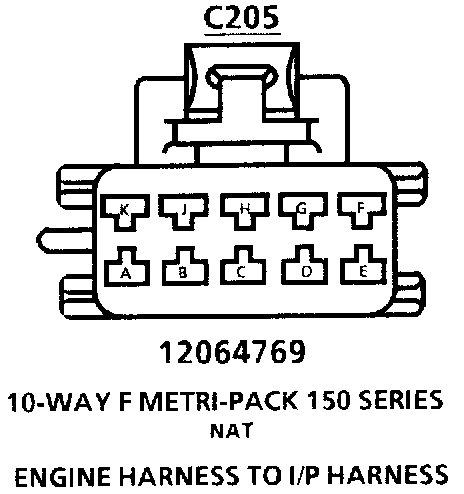

C205: Engine Harness To I/P Harness:
