System Diagram
System Diagram

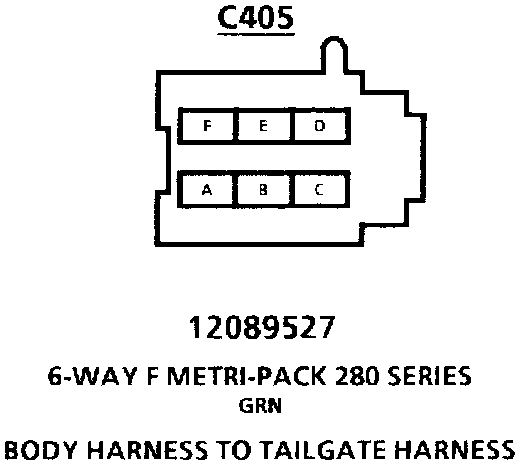

C405: Body Harness To Tailgate Harness:
C406: Body Harness To Tailgate Harness, Headlamp Auto Control Module (C1), Remote Control Door Lock Receiver (C2):
