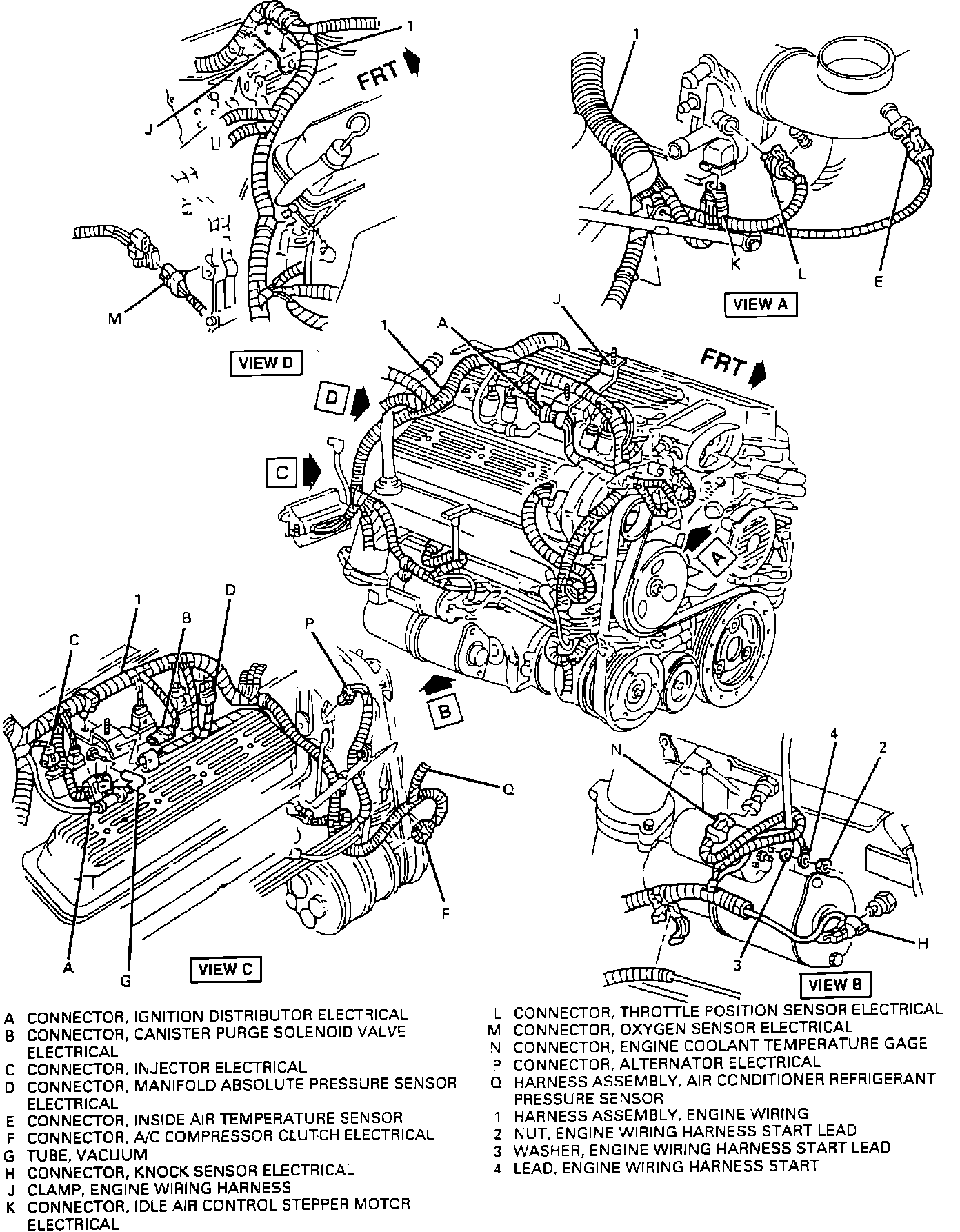

Right Side View
Right Side Engine Wiring Harness Assembly:
A CONNECTOR, IGNITION DISTRIBUTOR ELECTRICAL
B CONNECTOR, CANISTER PURGE SOLENOID VALVE ELECTRICAL
C CONNECTOR, INJECTOR ELECTRICAL
D CONNECTOR, MANIFOLD ABSOLUTE PRESSURE SENSOR ELECTRICAL
E CONNECTOR, INSIDE AIR TEMPERATURE SENSOR
F CONNECTOR, A/C COMPRESSOR CLUTCH ELECTRICAL
G TUBE, VACUUM
H CONNECTOR, KNOCK SENSOR ELECTRICAL
J CLAMP, ENGINE WIRING HARNESS
K CONNECTOR, IDLE AIR CONTROL STEPPER MOTOR ELECTRICAL
L CONNECTOR, THROTTLE POSITION SENSOR ELECTRICAL
M CONNECTOR, OXYGEN SENSOR ELECTRICAL
N CONNECTOR, ENGINE COOLANT TEMPERATURE GAGE
P CONNECTOR, ALTERNATOR ELECTRICAL
Q HARNESS ASSEMBLY, AIR CONDITIONER REFRIGERANT PRESSURE SENSOR
1 HARNESS ASSEMBLY, ENGINE WIRING
2 NUT, ENGINE WIRING HARNESS START LEAD
3 WASHER, ENGINE WIRING HARNESS START LEAD
4 LEAD, ENGINE WIRING HARNESS START
