Daytime Running Lamp

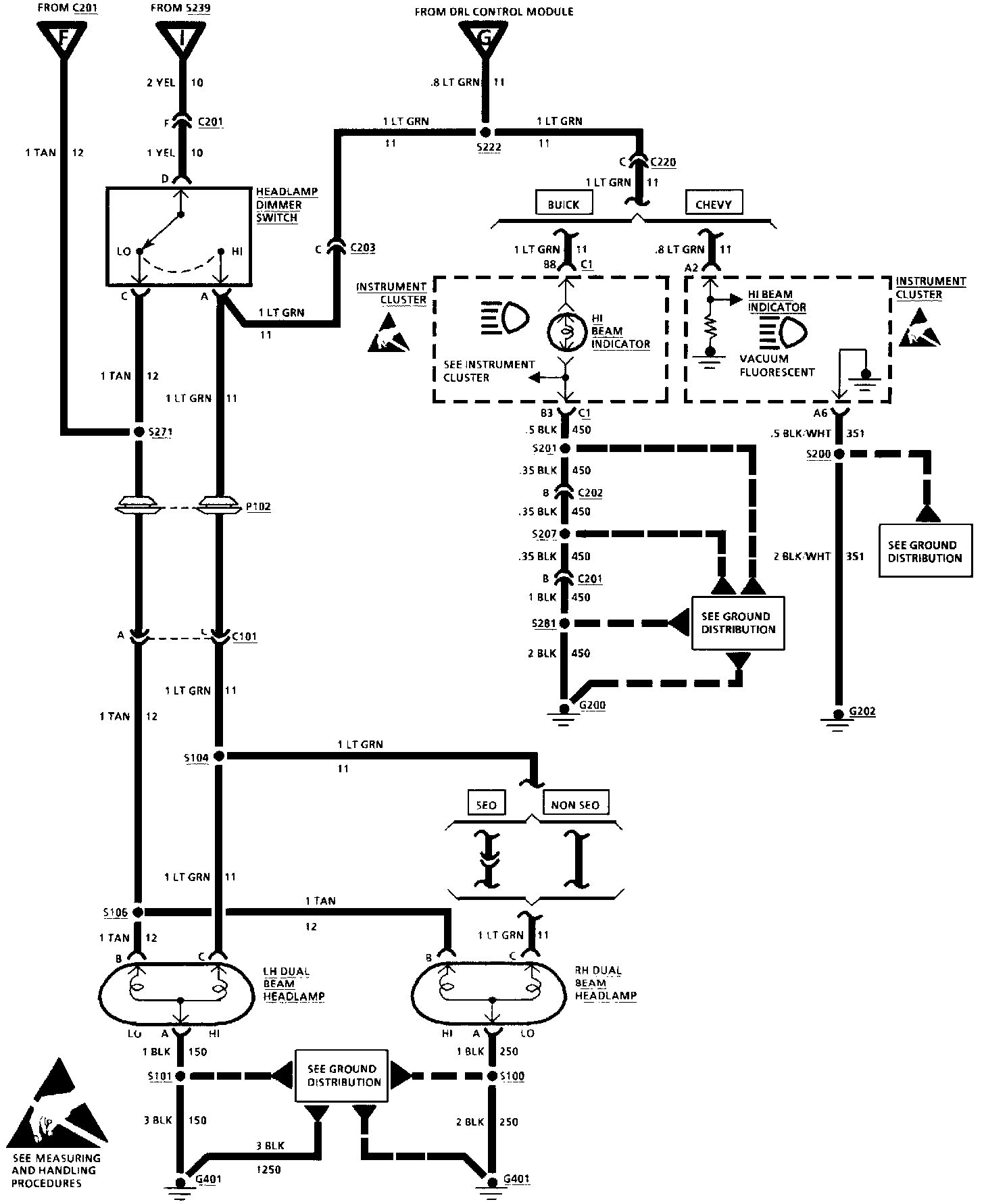

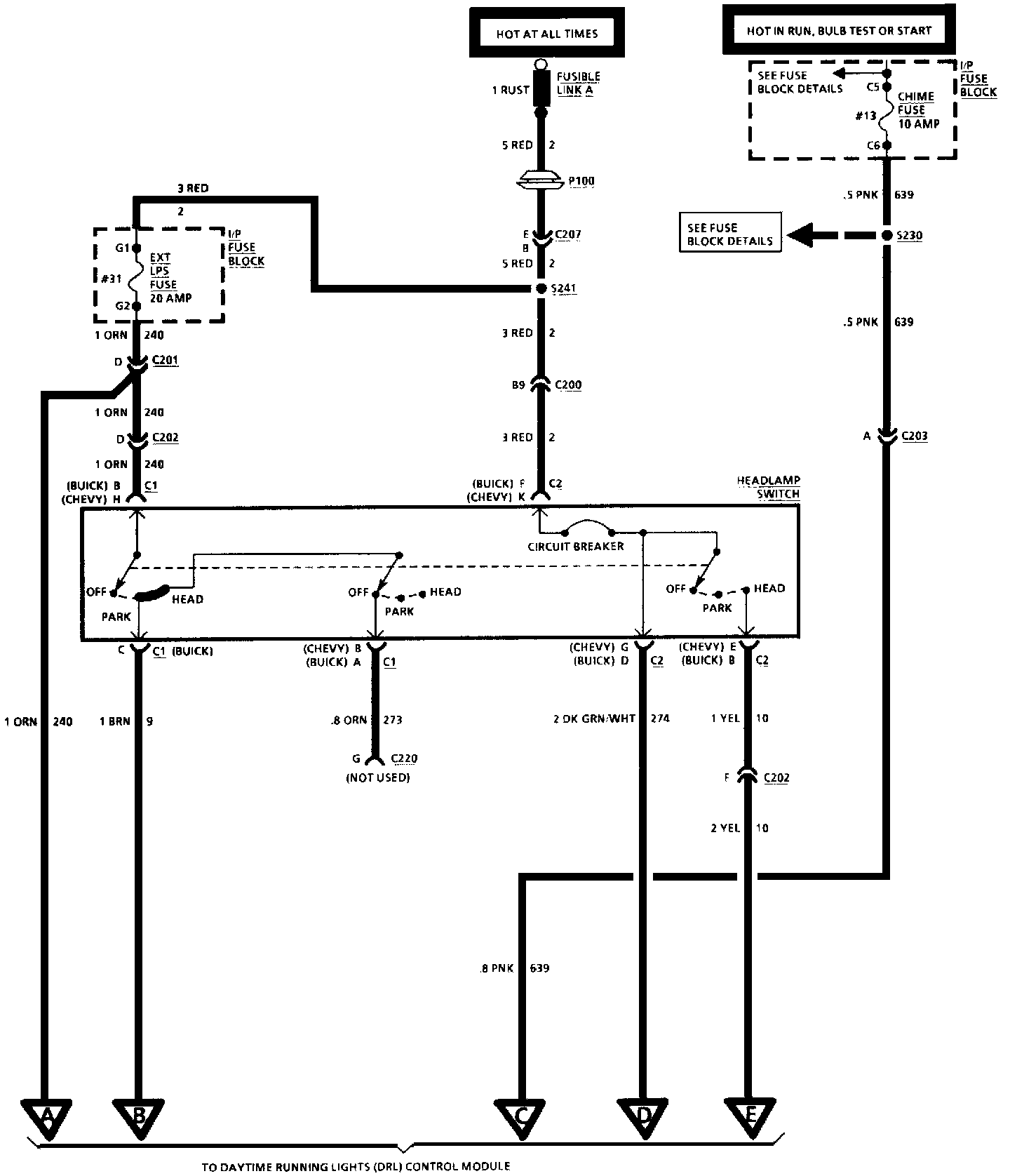

Headlights: Daytime Running Lights (Part 1 Of 4):





Headlights: Daytime Running Lights (Part 2 Of 4):





Headlights: Daytime Running Lights (Part 3 Of 4):





Headlights: Daytime Running Lights (Part 4 Of 4):
