Lamp Control Module
Lamp Control Module
Headlights With Twilight Sentinel (Part 1 Of 3):

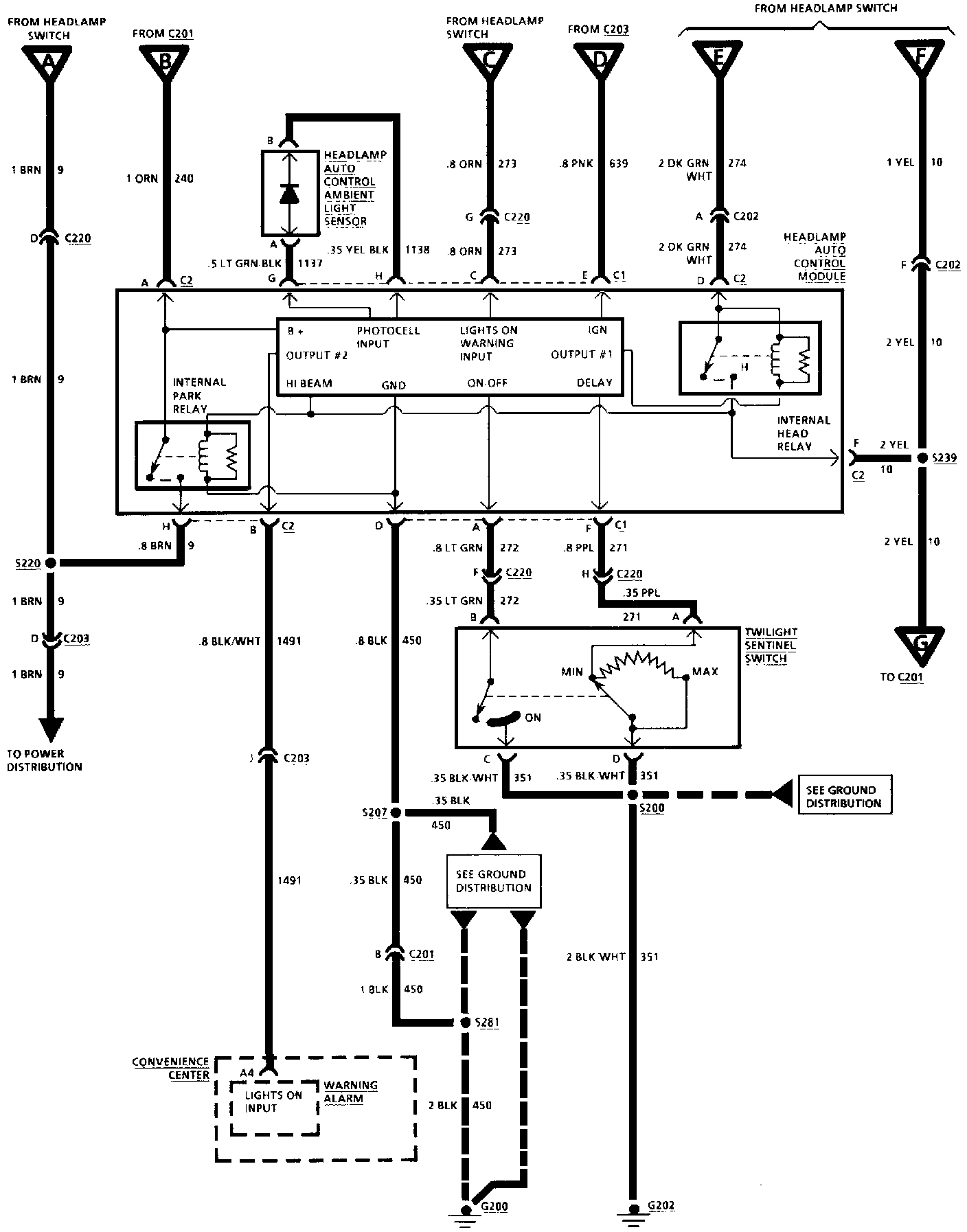

Headlights With Twilight Sentinel (Part 2 Of 3):
Headlights With Twilight Sentinel (Part 3 Of 3):
