Power Locks
>>
Power Door Locks and Tailgate Lock
Power Door Locks and Tailgate Lock

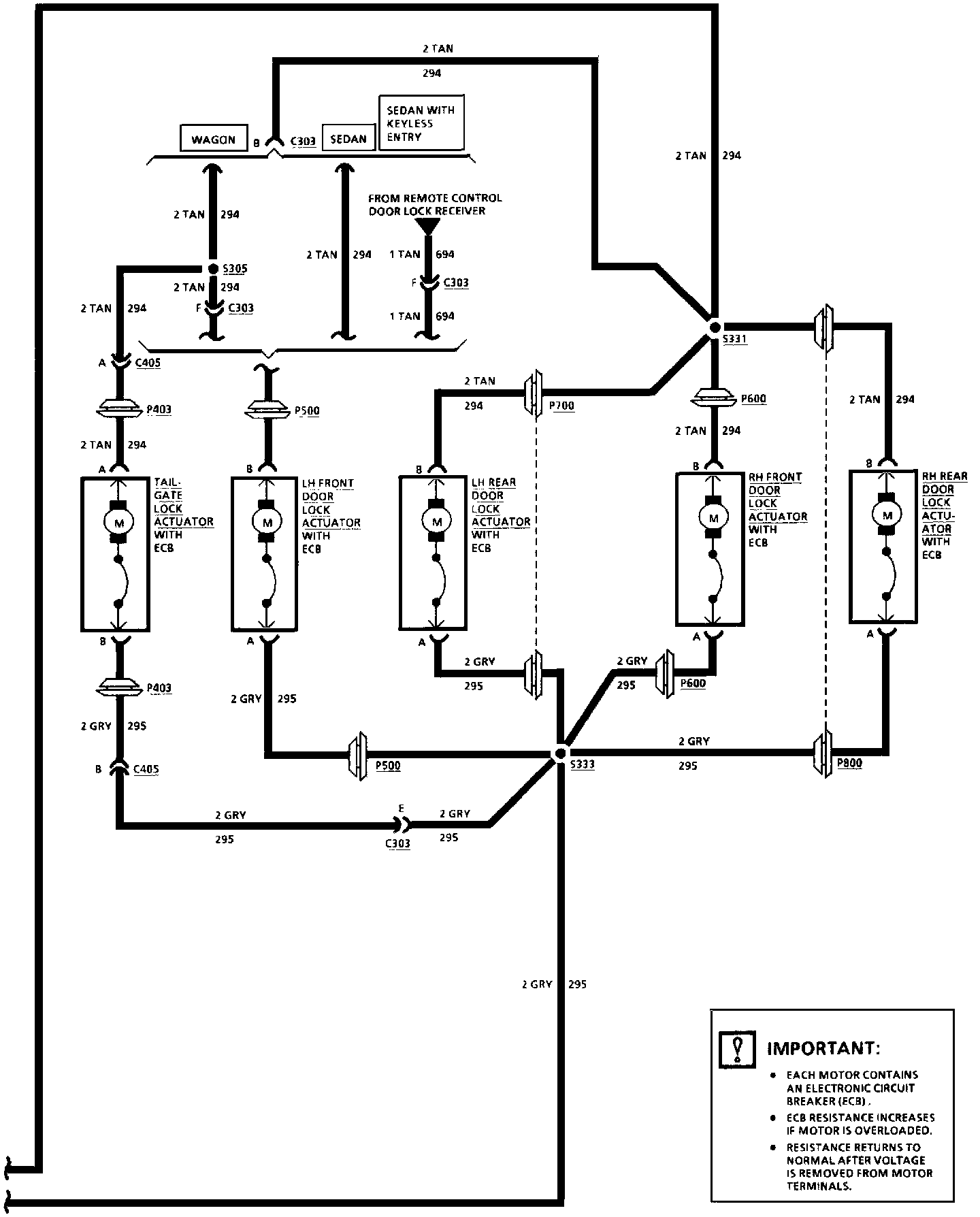

Power Door Locks And Tailgate Lock (Part 1 Of 2):
Power Door Locks And Tailgate Lock (Part 2 Of 2):
