Digital Cluster

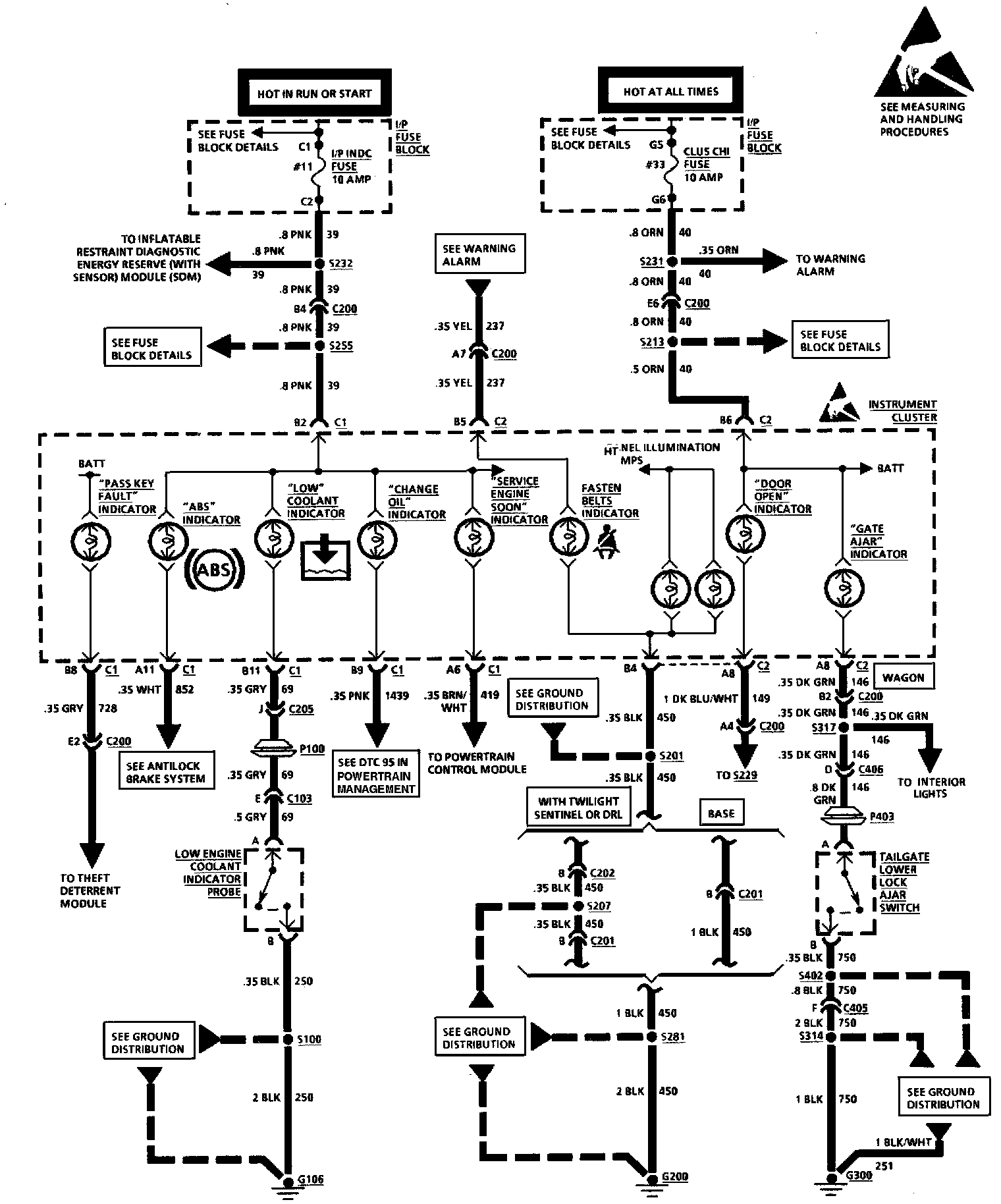

Instrument Cluster: Digital (Part 1 Of 3):



Instrument Cluster: Digital (Part 2 Of 3):



Instrument Cluster: Digital (Part 3 Of 3):
