Instrument Panel Dimming
Instrument Panel Dimming

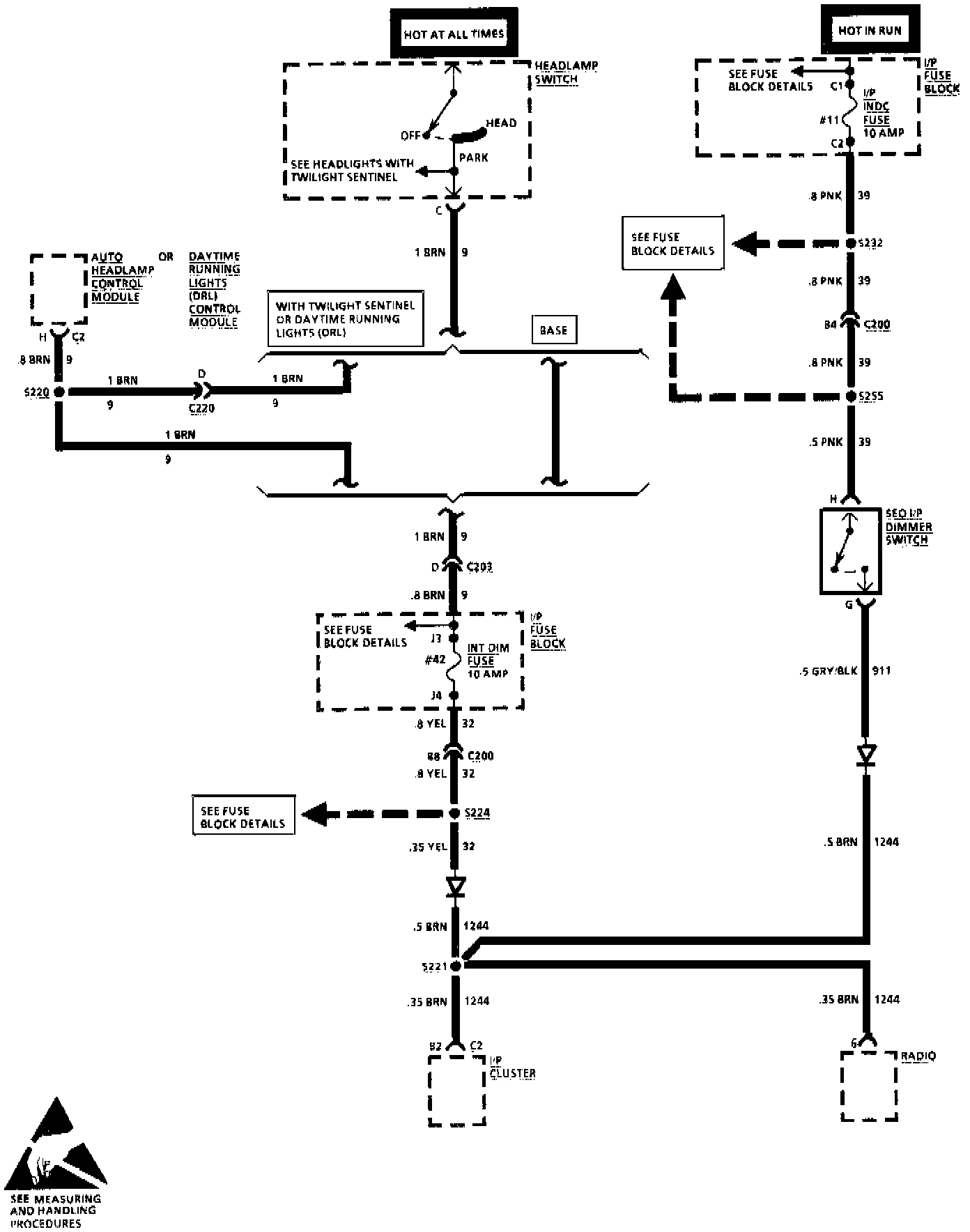

Instrument Panel Dimming (Part 1 Of 3):

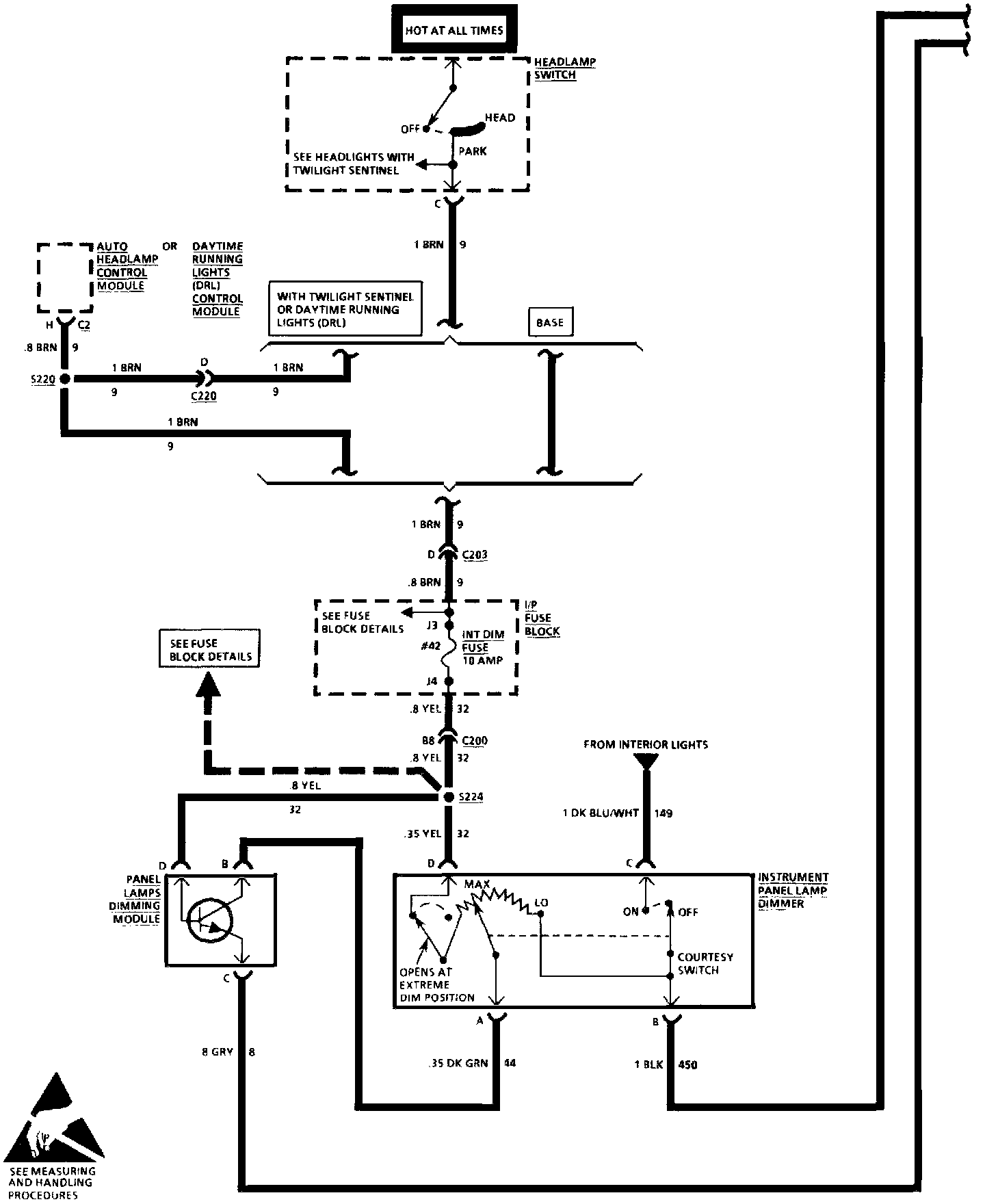

Instrument Panel Dimming (Part 2 Of 3):

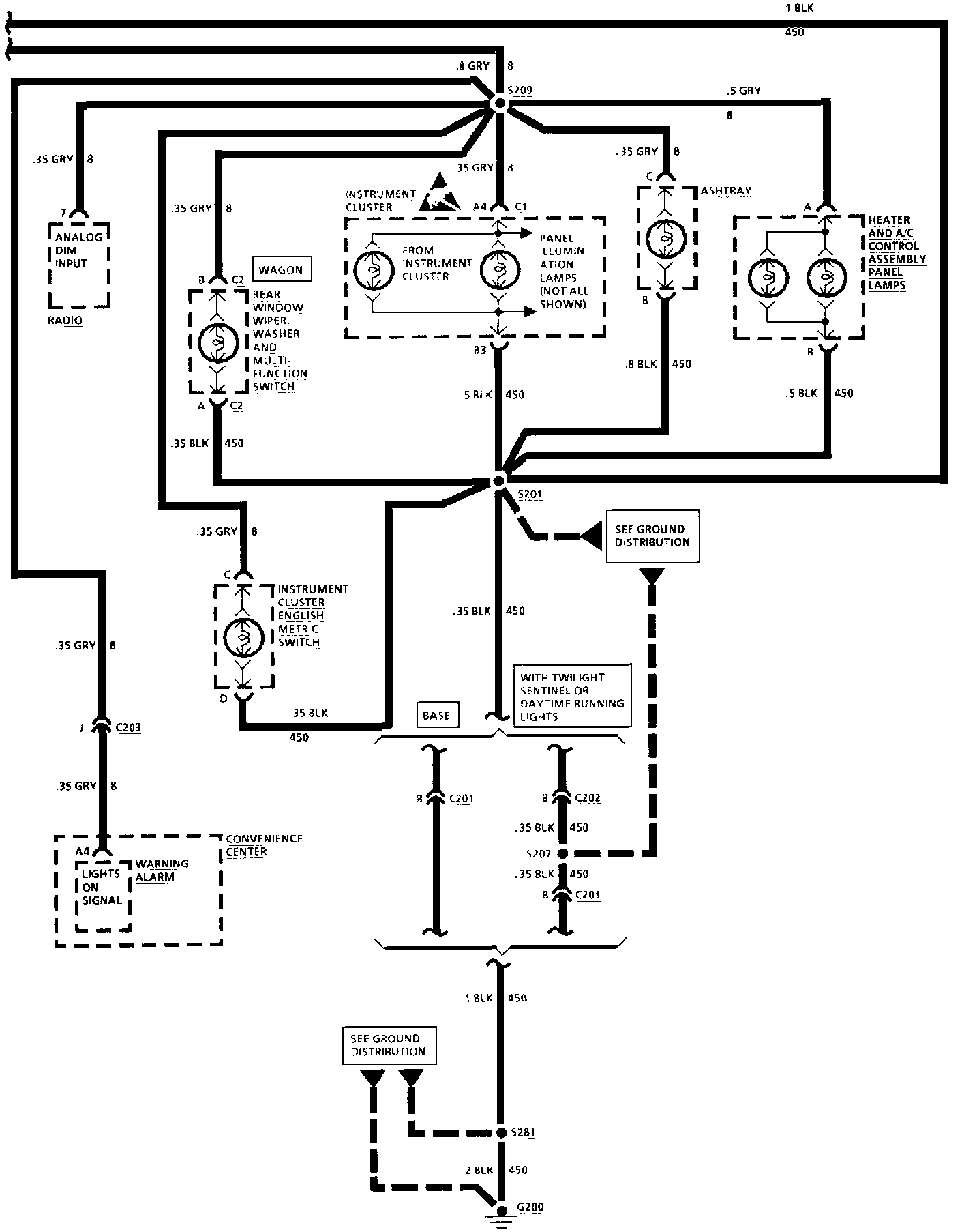

Instrument Panel Dimming (SEO) (Part 3 Of 3):
