Home >> Chevrolet >> 1994 >> Caprice V8-350 5.7L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Emission Controls, Power Steering Oil Level & PASS-Key

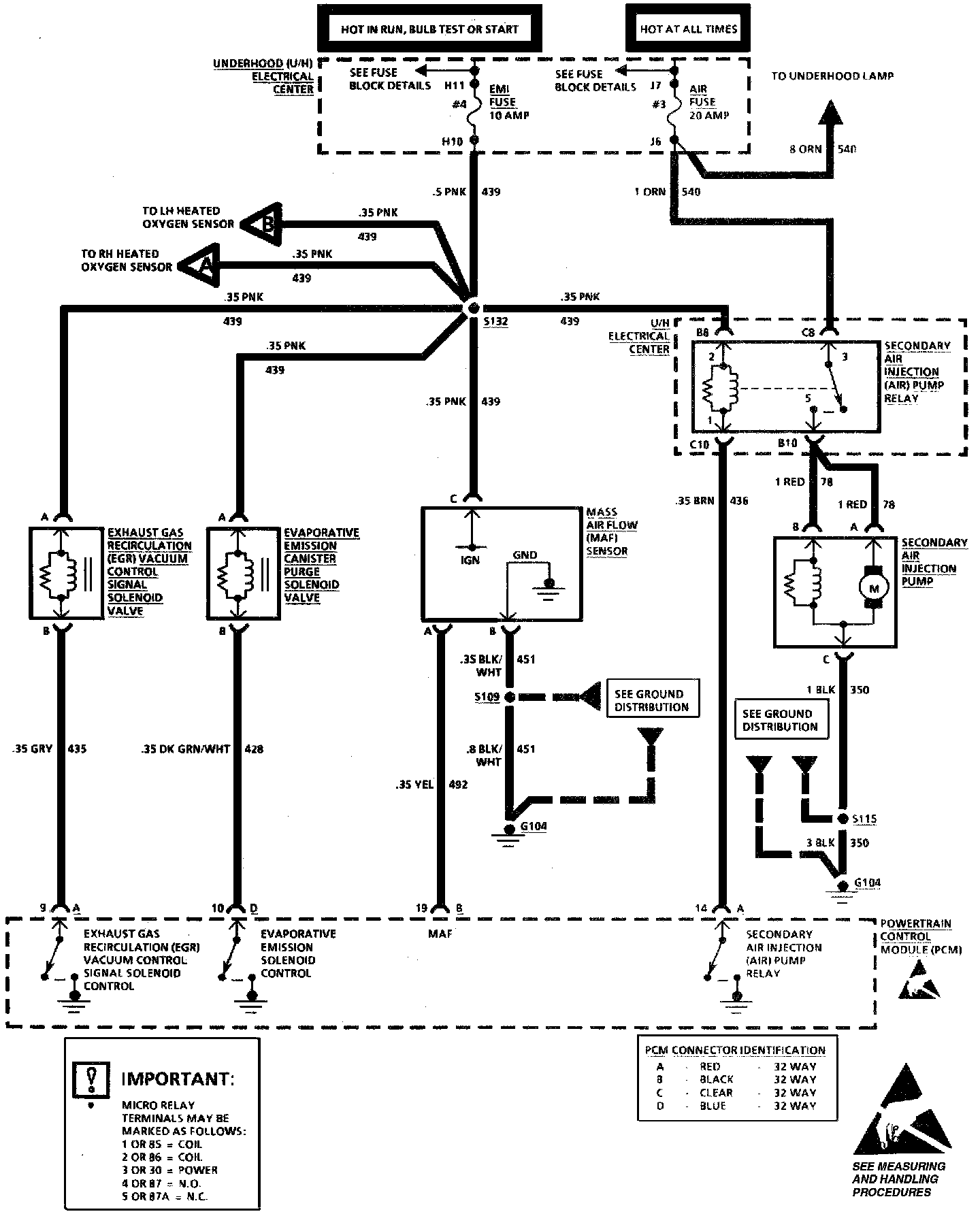

Emission Controls, Power Steering Oil Level & PASS-Key

Emission Controls:



Emission Controls, Power Steering, Oil Level, Oil Reset & Passkey:
