Malfunction Indicator Lamp & Data Link Connector
Malfunction Indicator Lamp & Data Link Connector

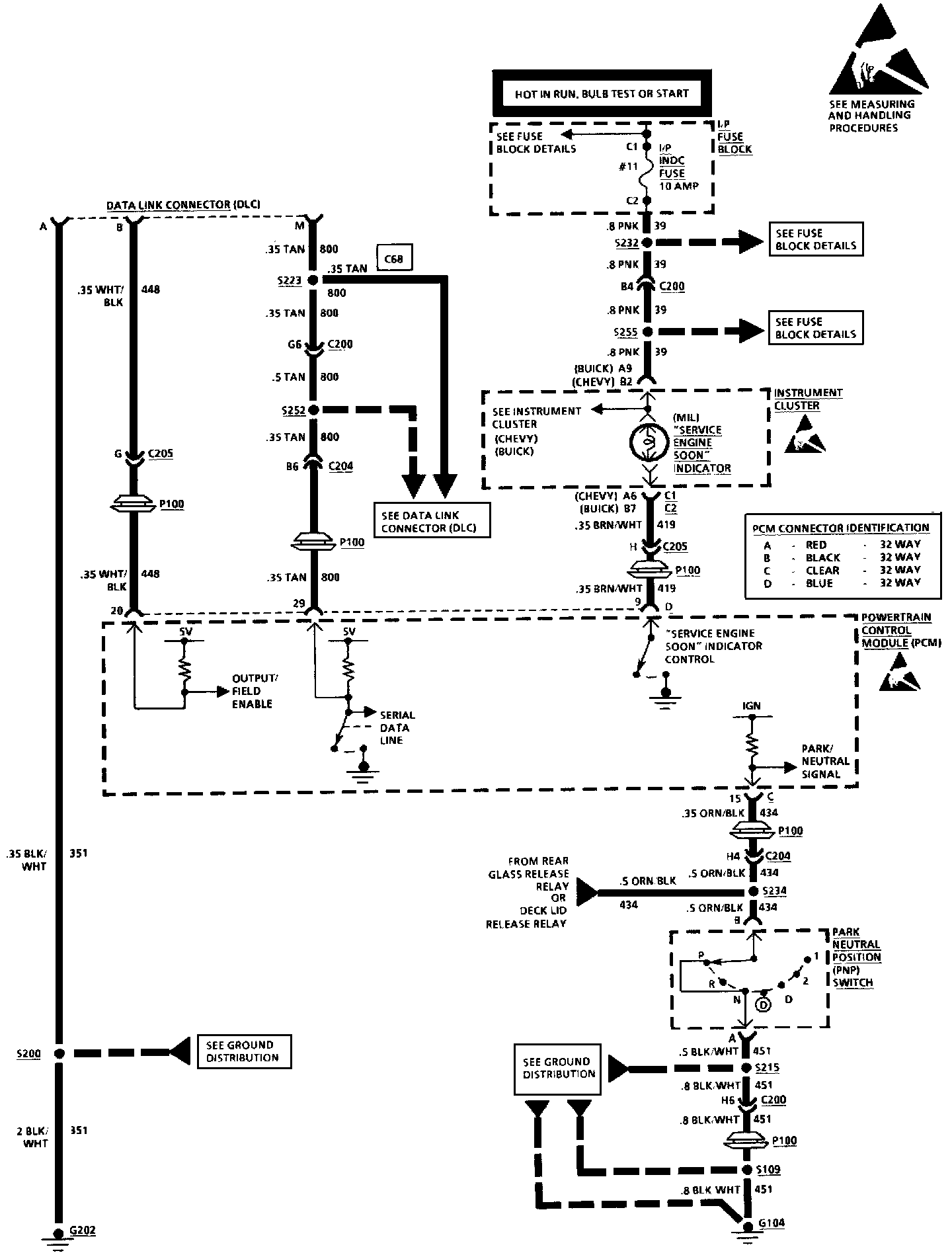

Malfunction Indicator Lamp And Data Link Connector:
