Home >> Chevrolet >> 1994 >> Caprice Wagon V8-265 4.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Backup Lamp

Backup Lamp

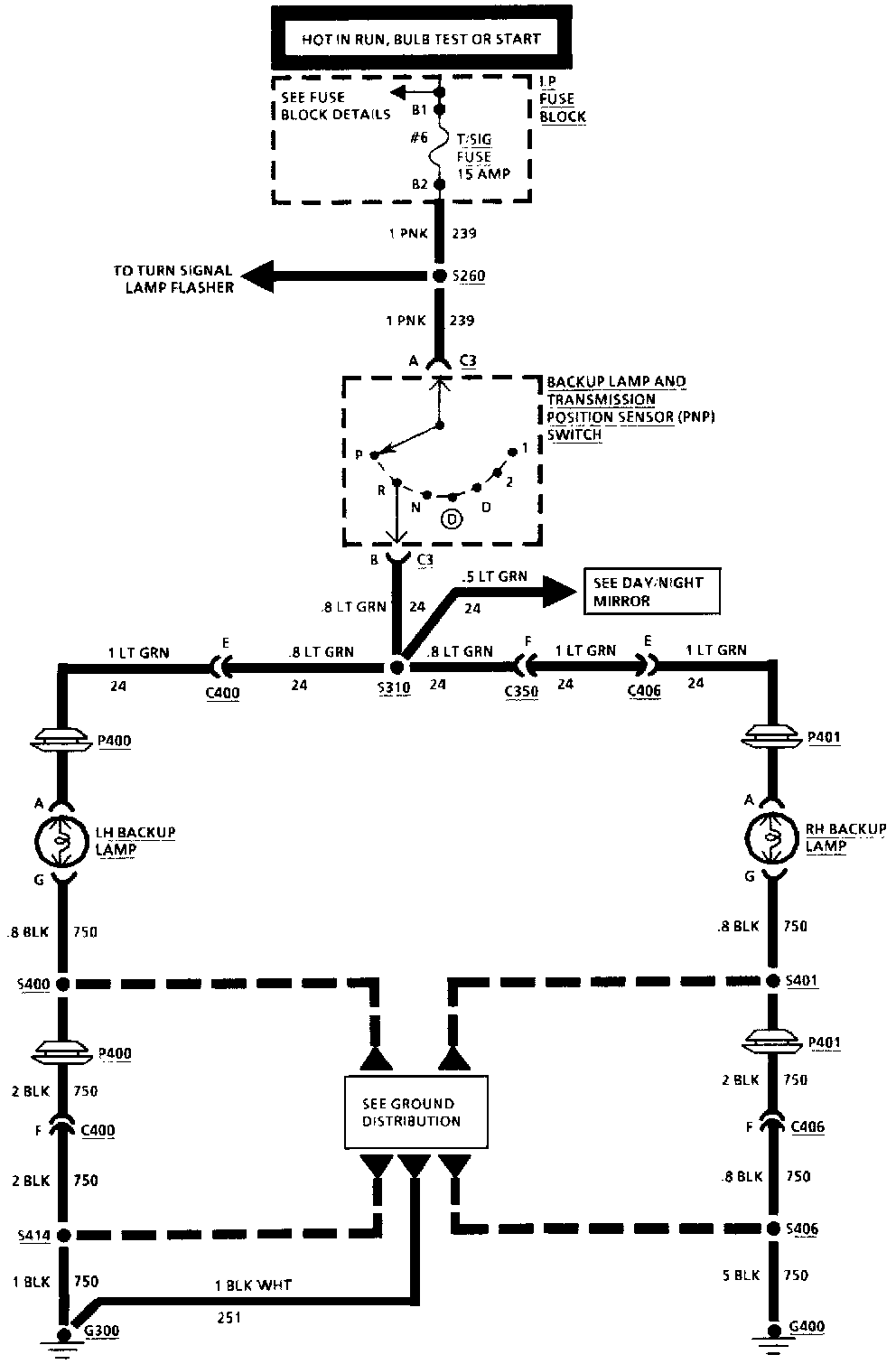

Backup Lights (Part 2 Of 2):
