Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1994
>>
Caprice Wagon V8-265 4.3L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Circuit Breaker
>>
Application and ID
Circuit Breaker: Application and ID

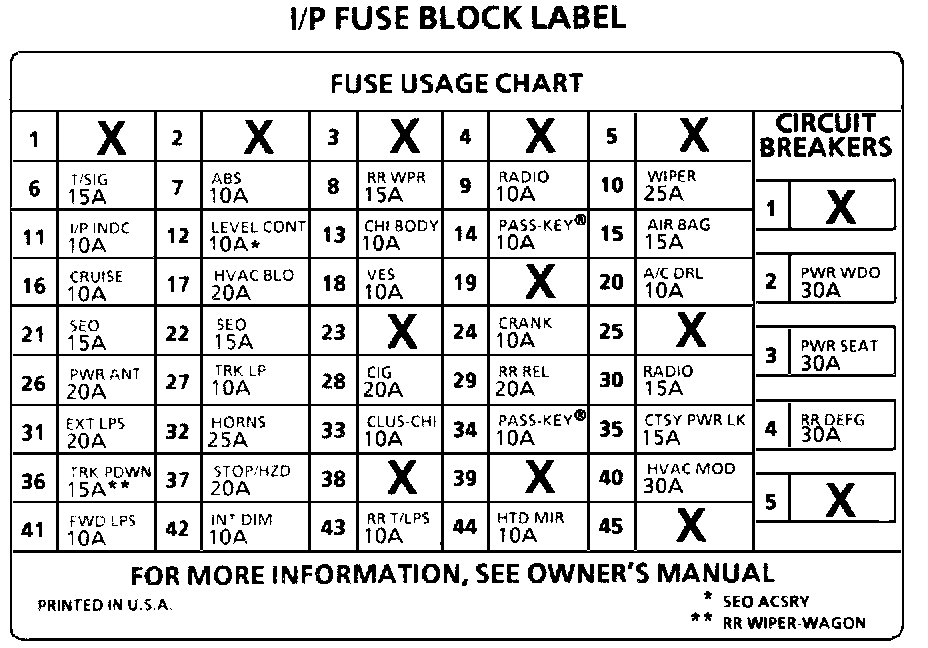

Fuse Data: I/P Fuse Block Label:

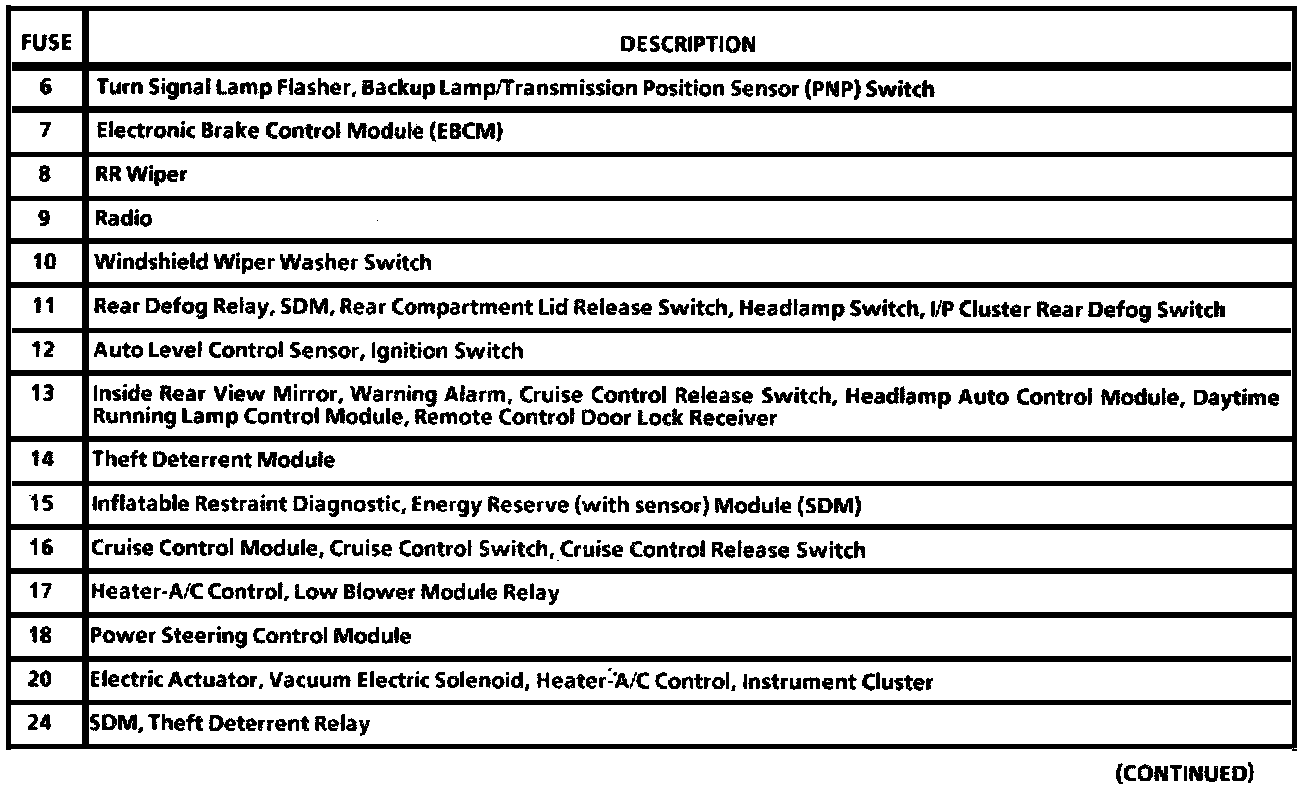

Fuse Data: I/P Fuse Block Label (Part 1 Of 3):
Fuse Data: I/P Fuse Block Label (Part 2 Of 3):
