Data Link Connector
Data Link Connector

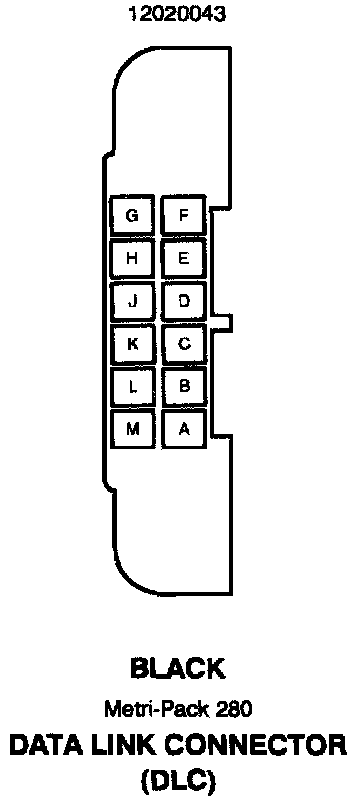

Harness Connector Faces: Data Link Connector (DLC):

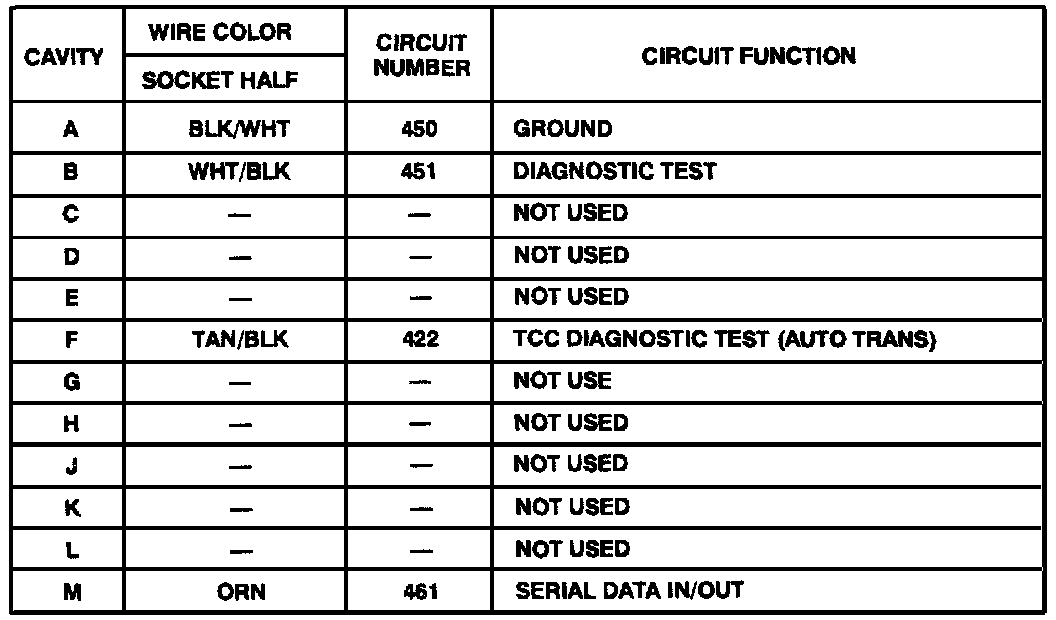

Harness Connector Faces: Data Link Connector (Description):
