Home >> Chevrolet >> 1994 >> Cavalier/Z24 L4-134 2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo

Radio/Stereo

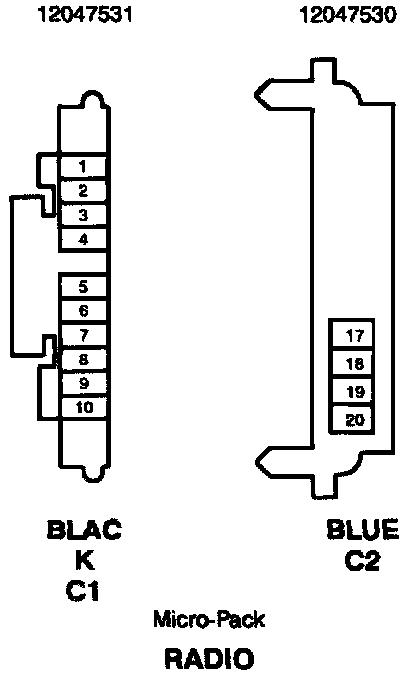

Harness Connector Faces: Radio:

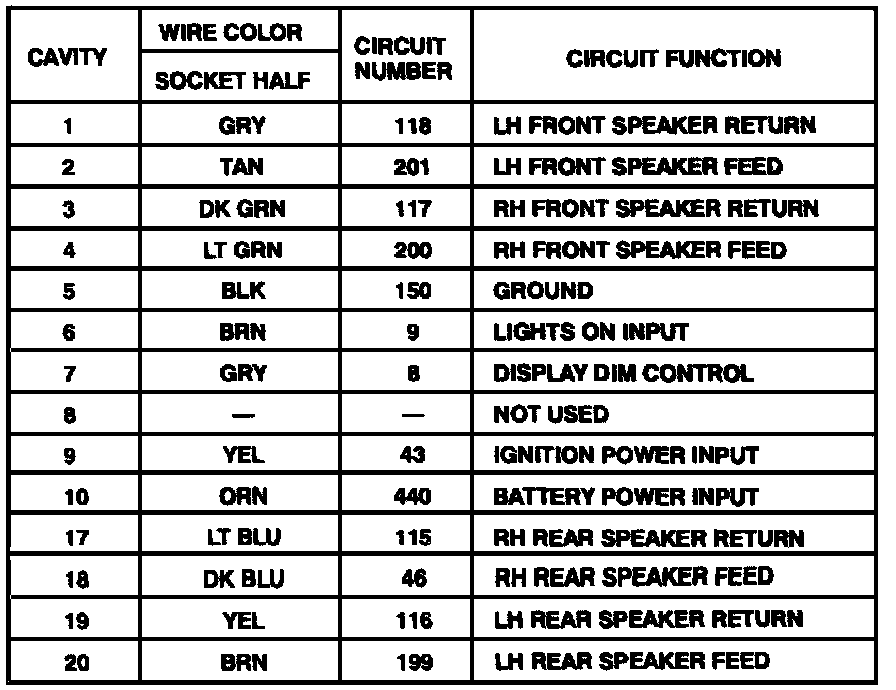

Harness Connector Faces: Radio (Description):
