Convertible Top Relay Connectors

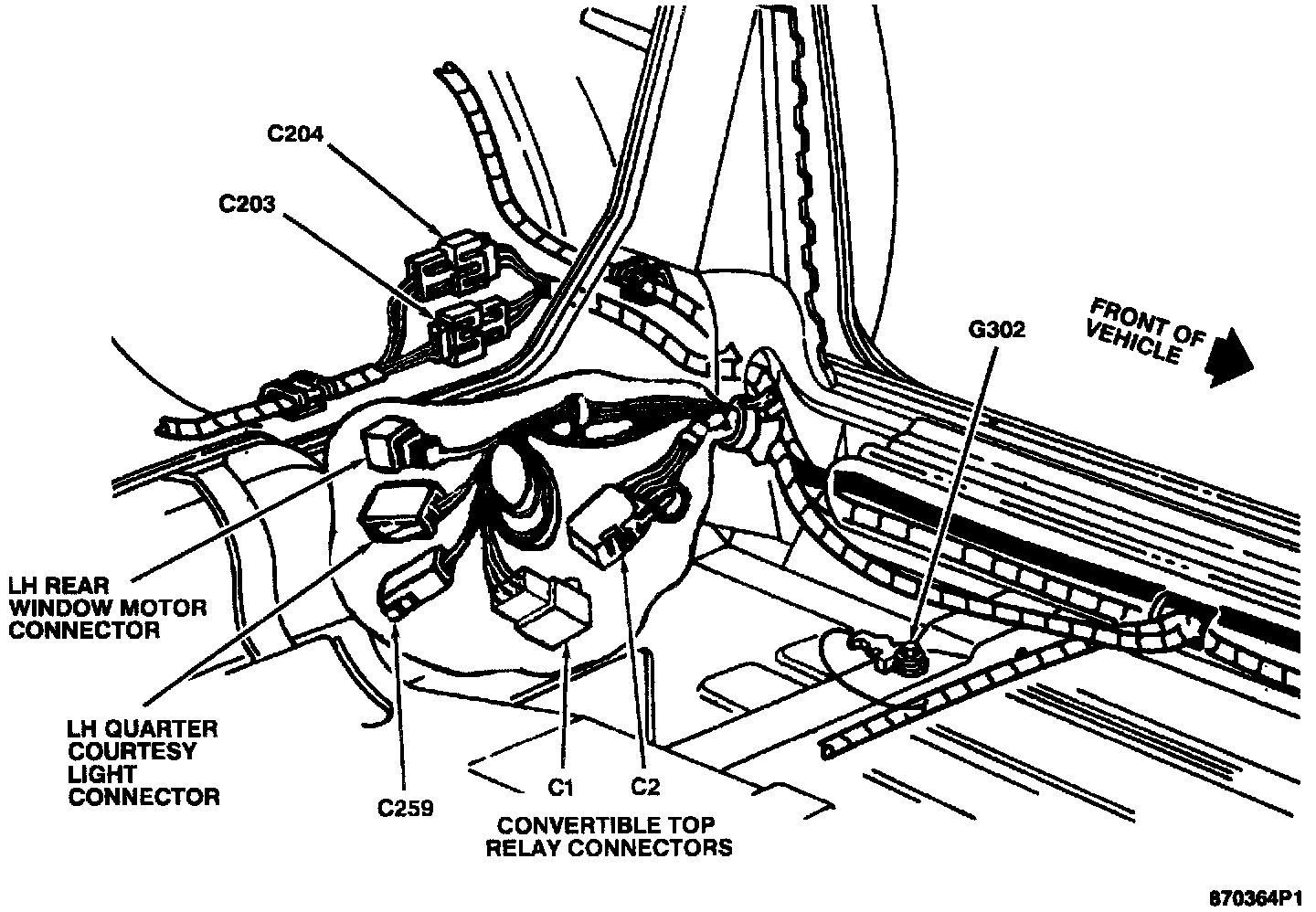

Convertible Top Relay Connectors
Rear Of Passenger Compartment (Convertible):
