Audible Warning Device
Audible Warning Device

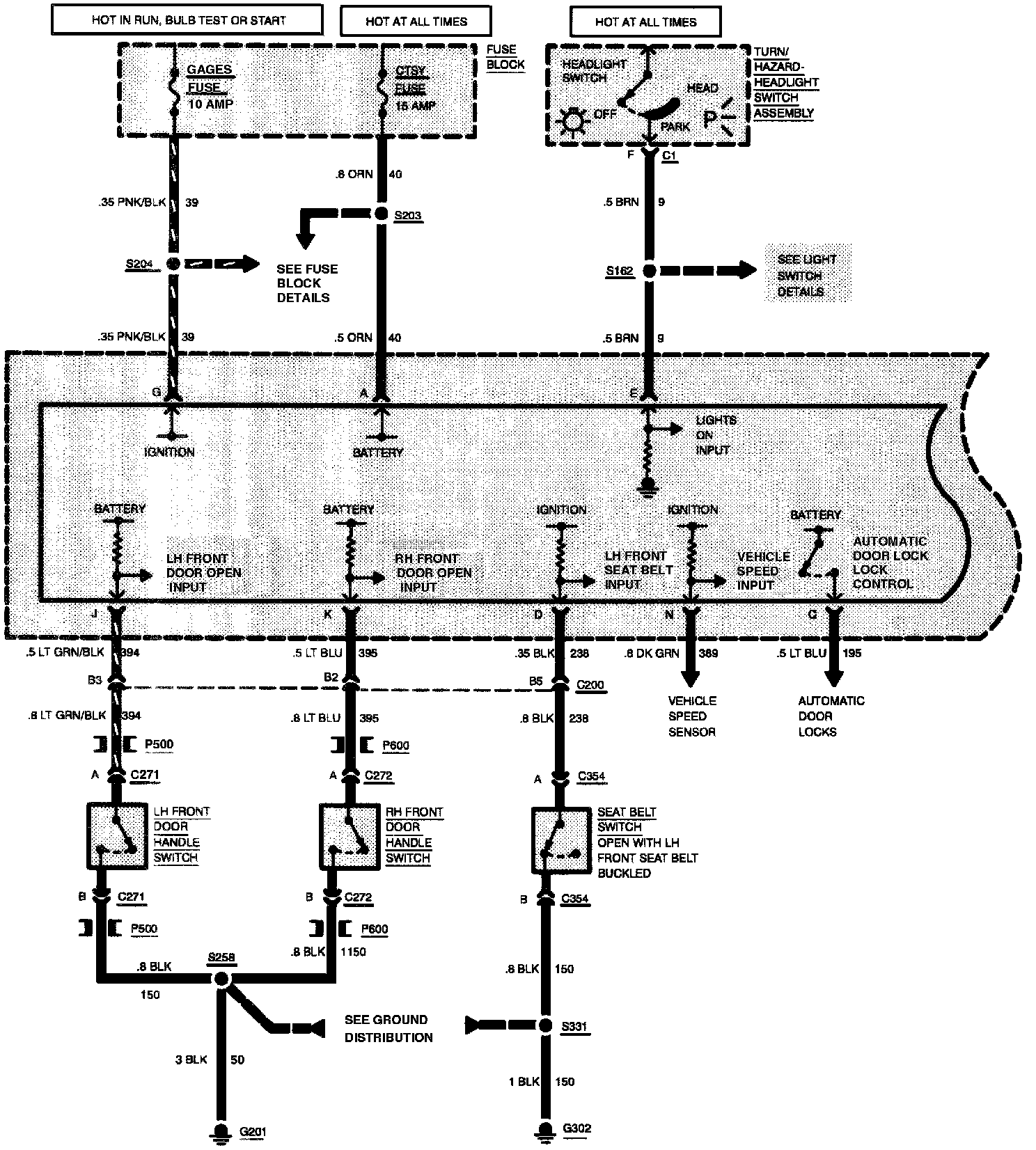

Audible Warning: Chime (Lights-On/Ignition/Fasten Belts) (Part 1 Of 2):

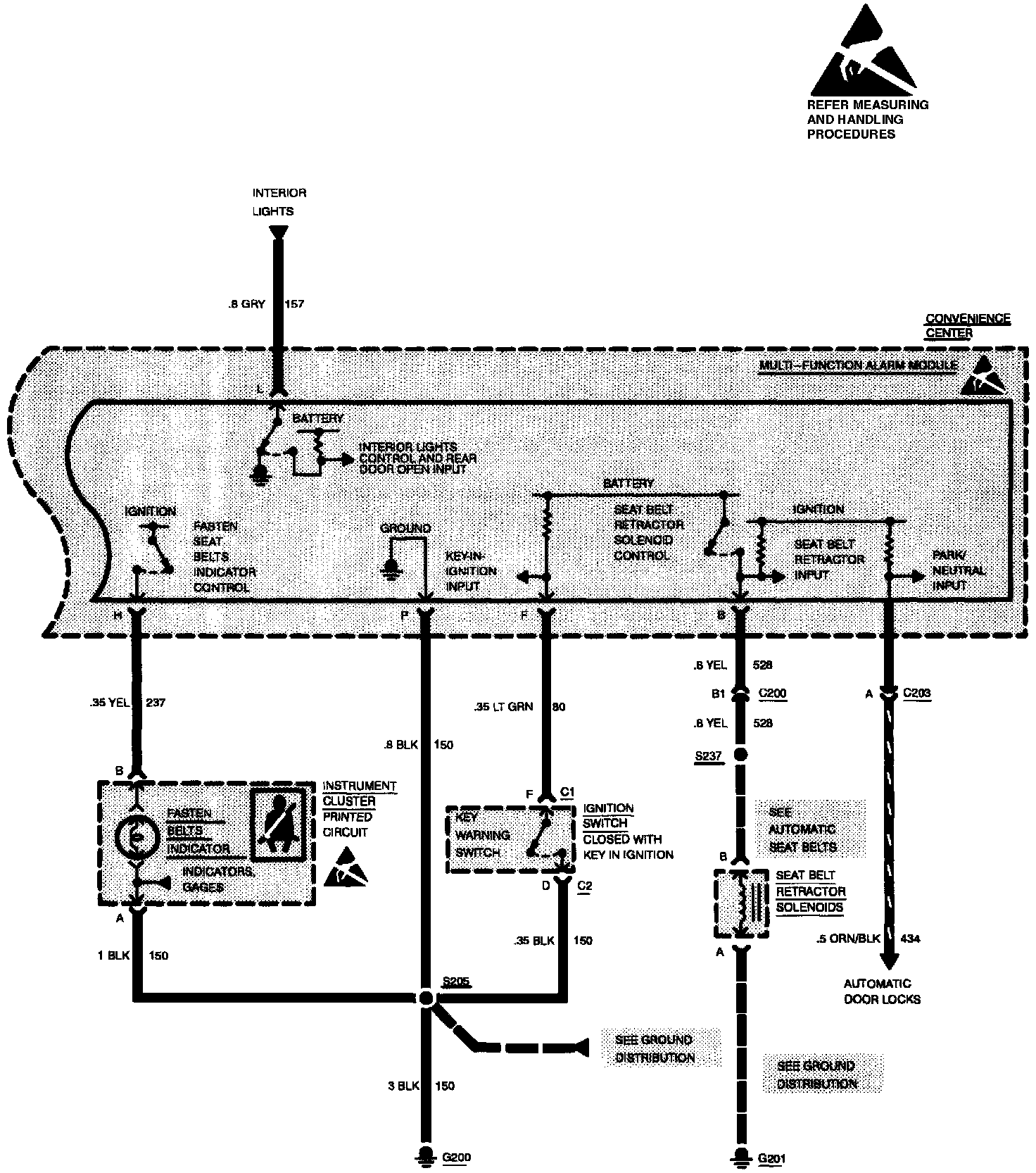

Audible Warning: Chime (Lights-On/Ignition/Fasten Belts) (Part 2 Of 2):
