Malfunction Indicator Lamp

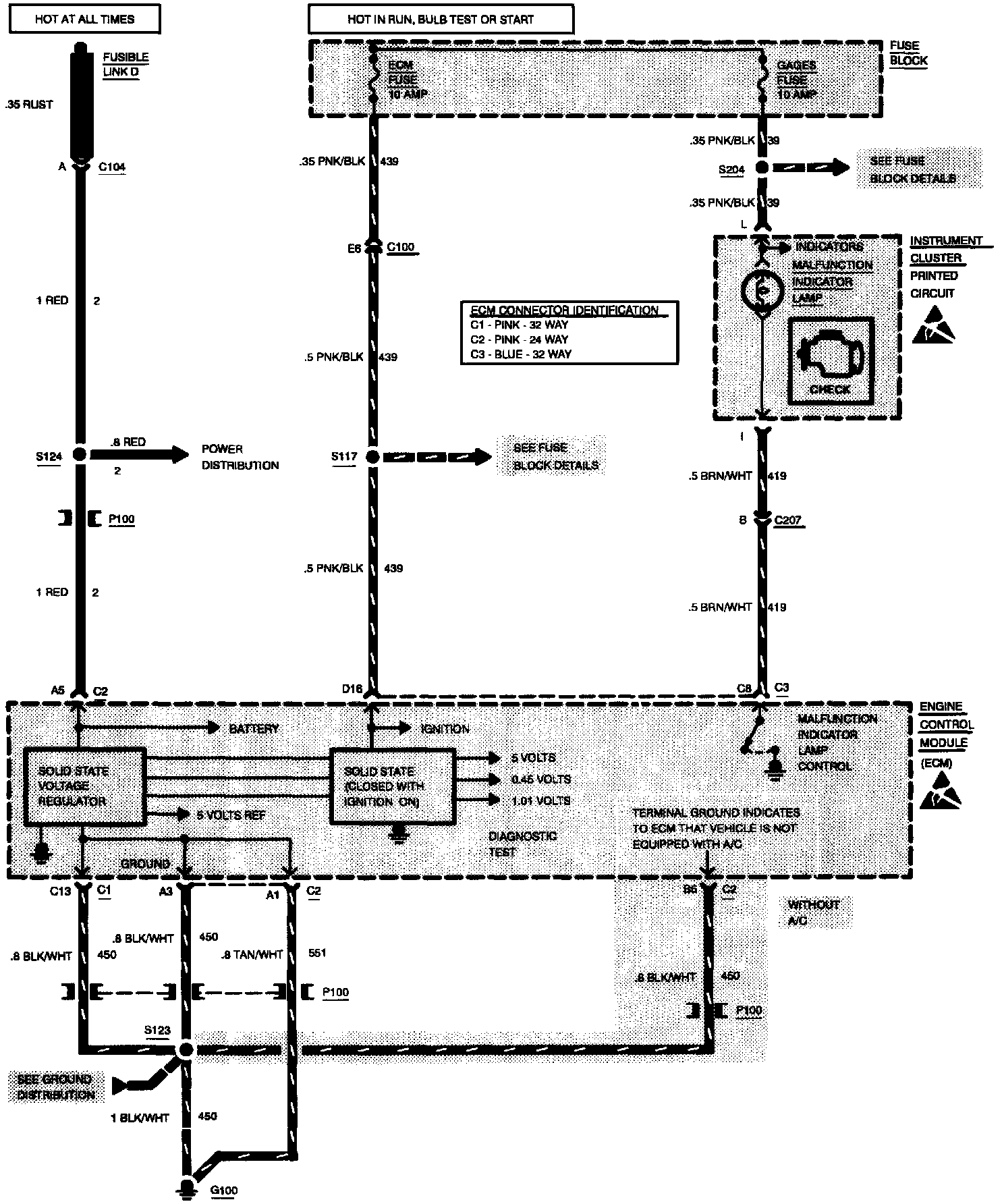

Multiport Fuel Injection: Power, Grounds And Malfunction Indicator Lamp:

This diagram is one part of the complete set of powertrain wiring diagram located under powertrain management. Refer to this area if you need the accompanying diagram. Powertrain Management
