Convertible

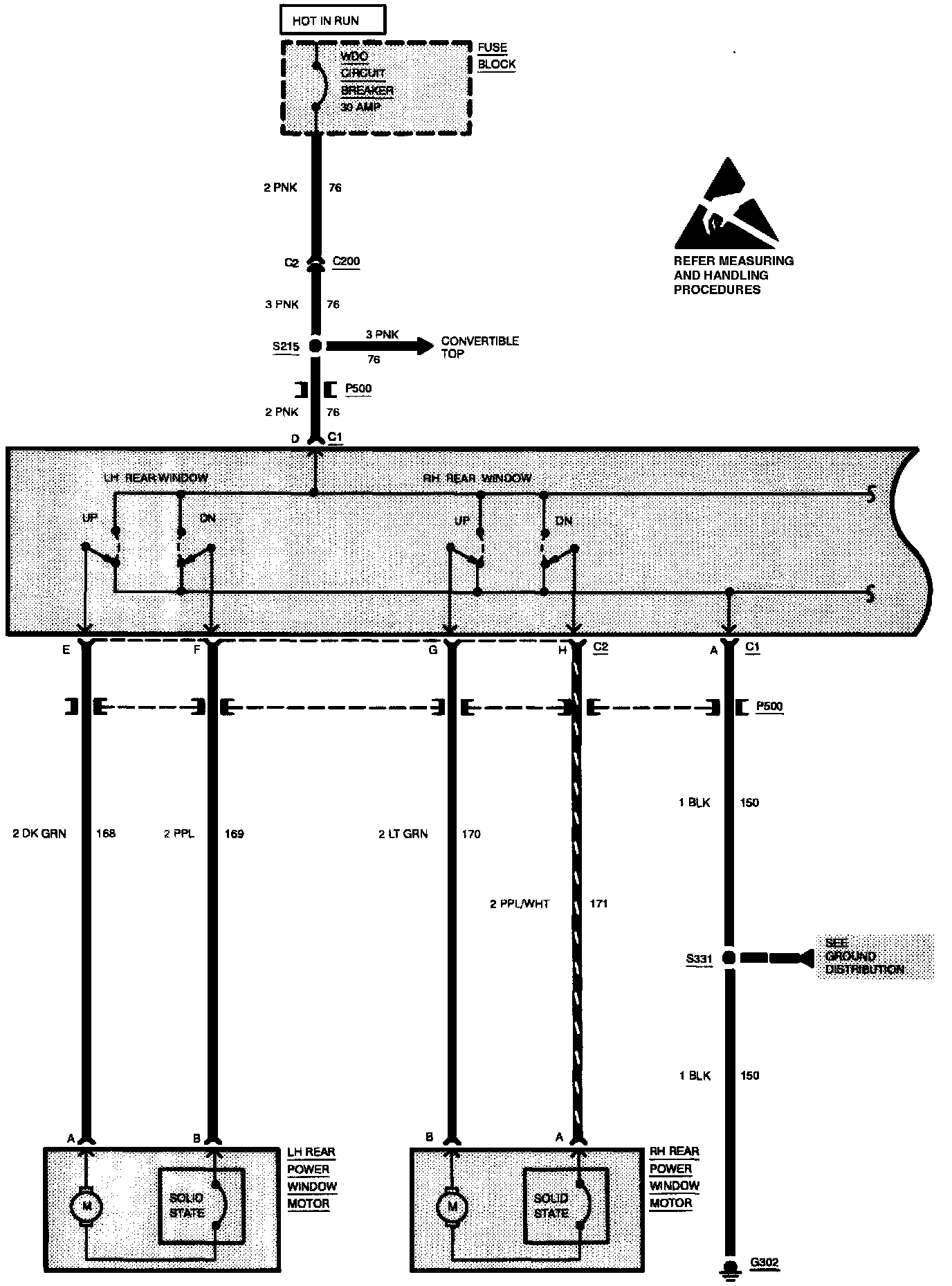

Power Windows: A31 (Convertible) (Part 1 Of 2):

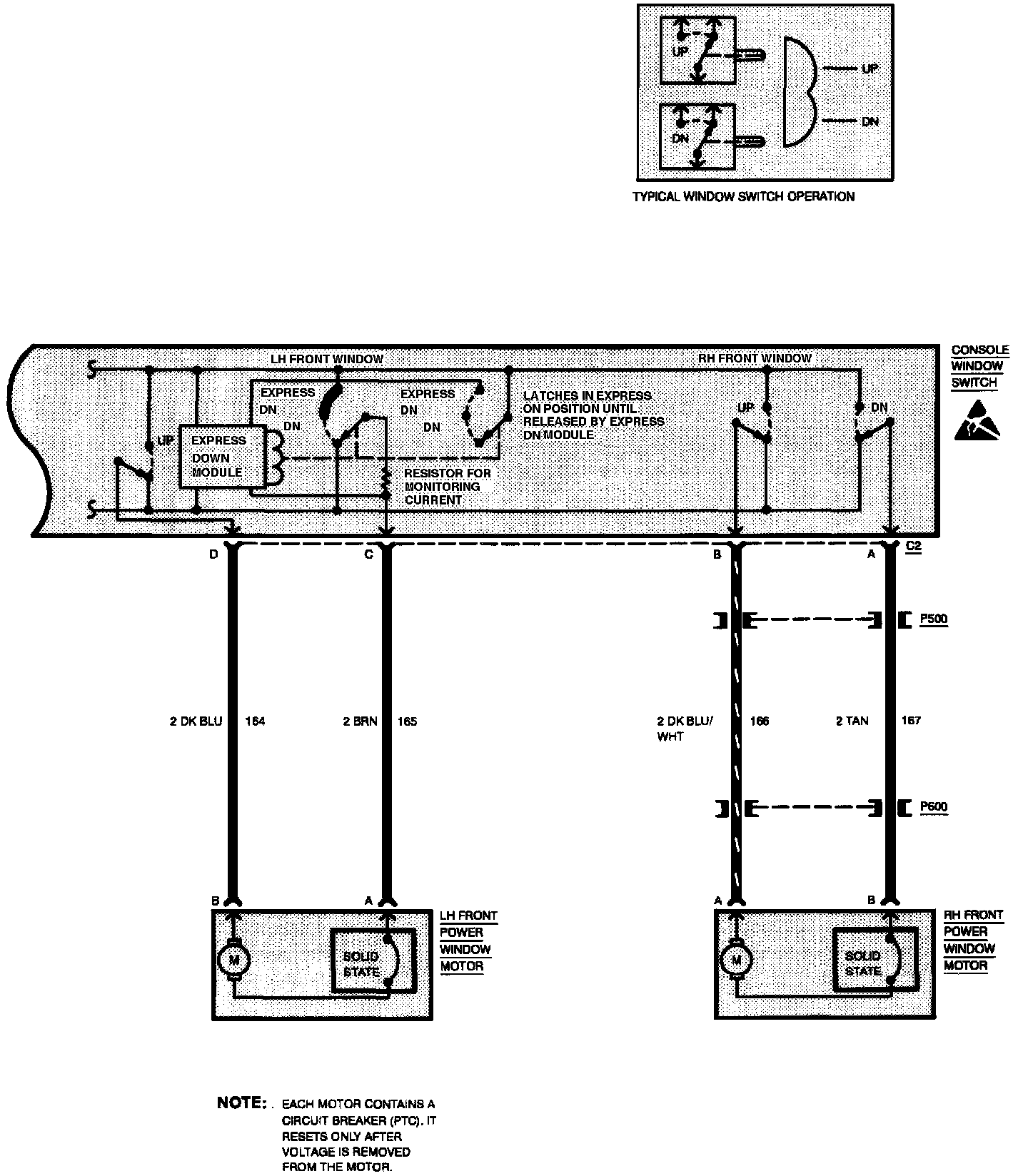

Power Windows: A31 (Convertible) (Part 2 Of 2):
