Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1994
>>
Cavalier/Z24 L4-134 2.2L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Compressor Controls
Compressor Controls

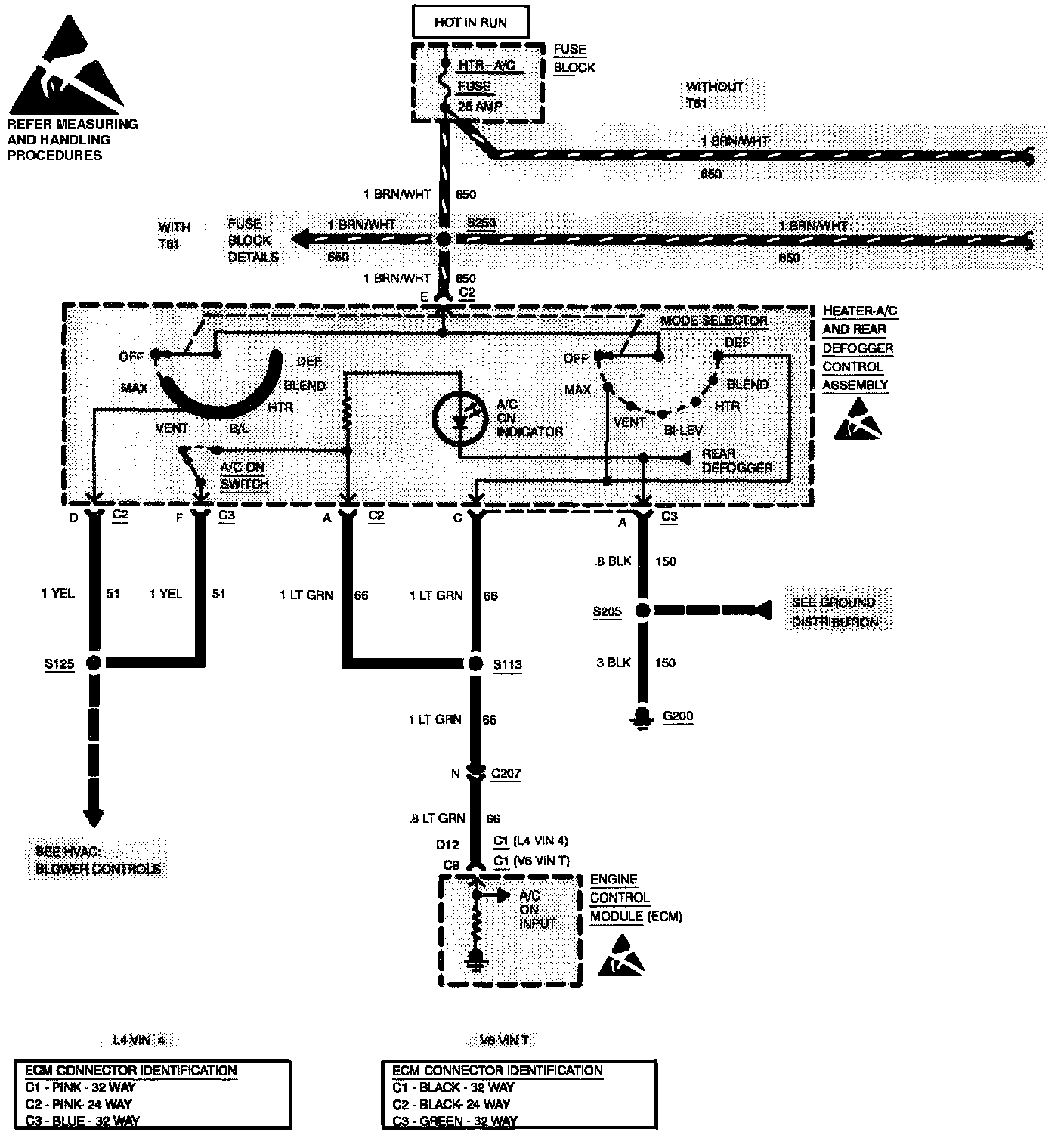

HVAC: Compressor Controls (C60, Manual) (Part 1 Of 2):
HVAC: Compressor Controls (C60, Manual) (Part 1 Of 2):
