Pinout Description
Pinout Description

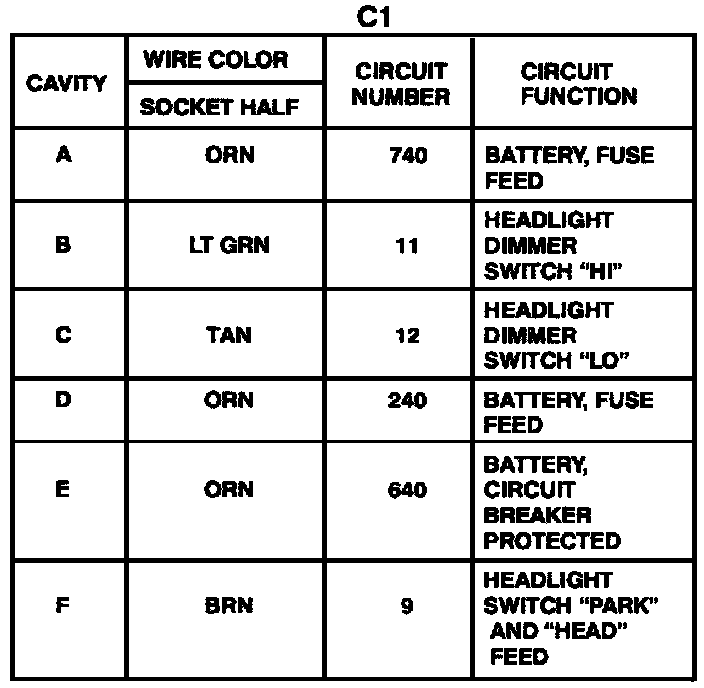

Harness Connector Faces: Turn/Hazard-Headlight Switch Assembly- C1 (Description):
Harness Connector Faces: Turn/Hazard-Headlight Switch Assembly- C2 (Description):
