Home >> Chevrolet >> 1994 >> Cavalier/Z24 L4-134 2.2L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Idle Speed Control & Vehicle Data Sensors

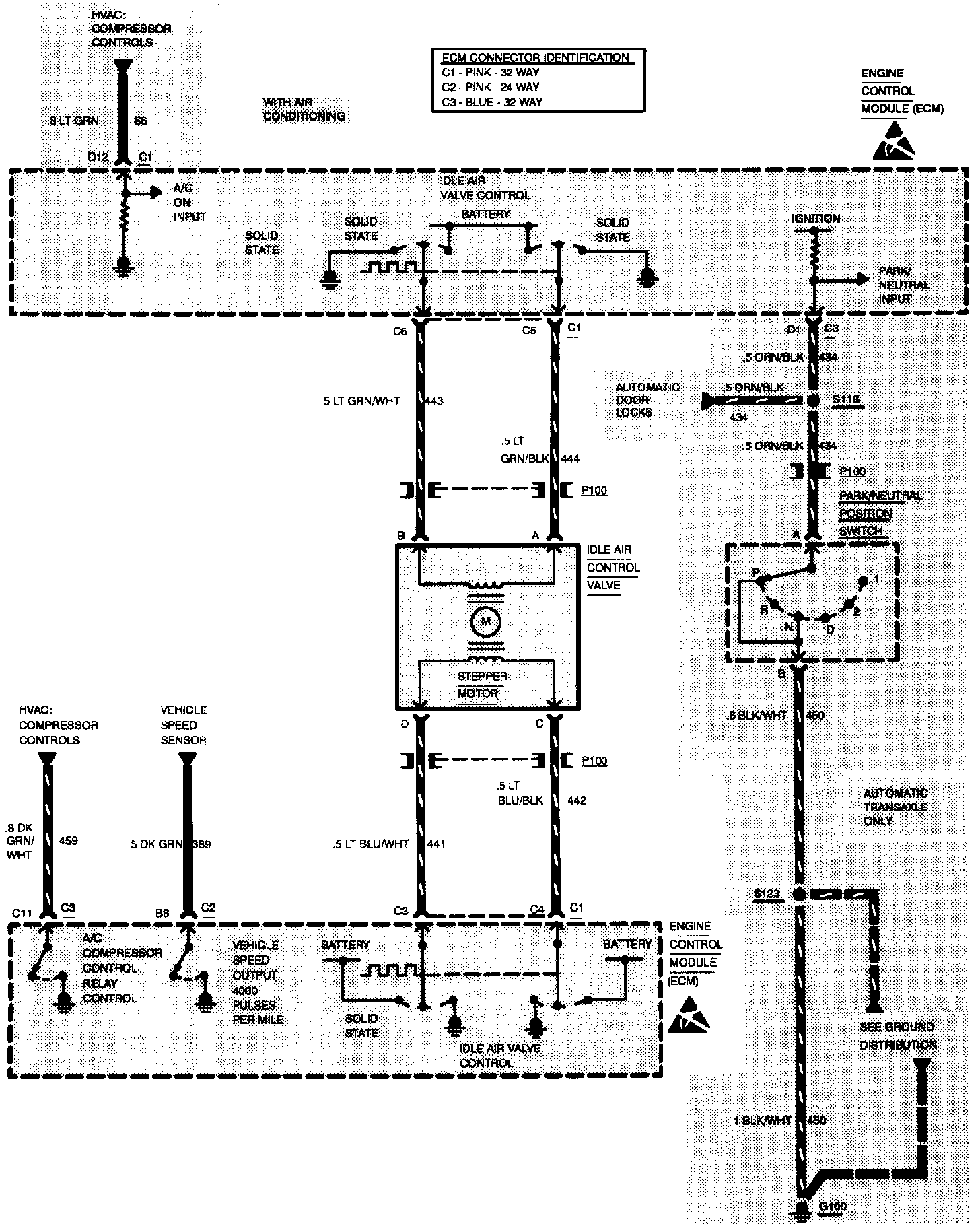

Idle Speed Control & Vehicle Data Sensors

Multiport Fuel Injection: Vehicle Data Sensors And Idle Air Control:
