Home >> Chevrolet >> 1994 >> Cavalier/Z24 L4-134 2.2L >> Repair and Diagnosis >> Powertrain Management >> Locations >> Engine Harness Routing >> Part 4 of 4, Engine Wiring Harness Routing

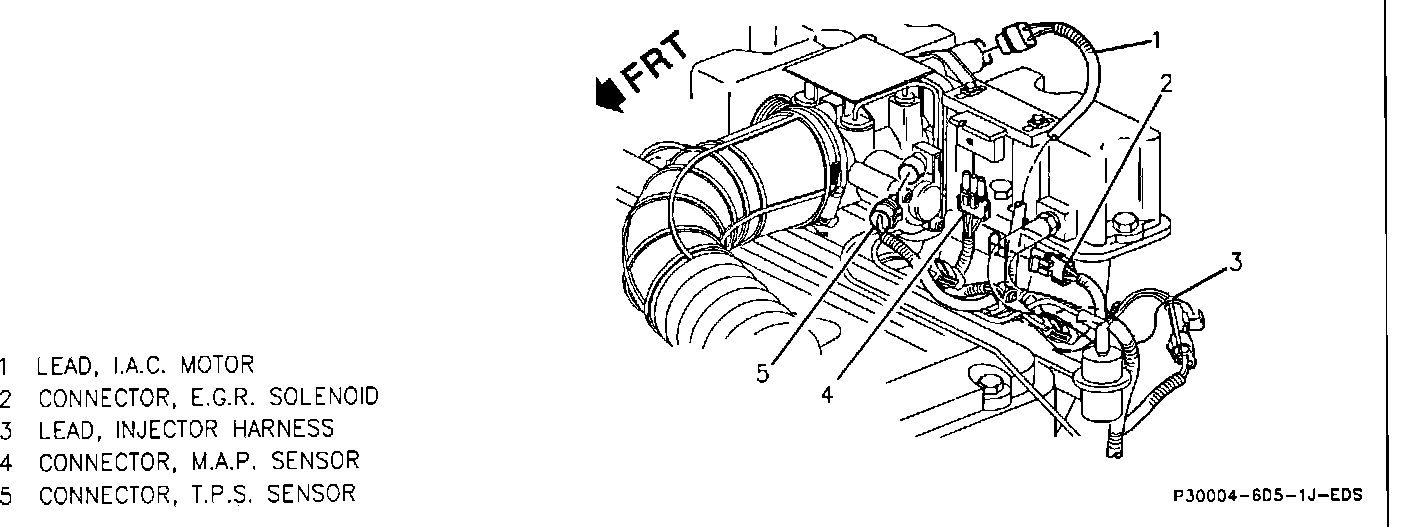

Part 4 of 4, Engine Wiring Harness Routing

Wiring Diagram Part 4 Of 4:
