System Diagram
System Diagram

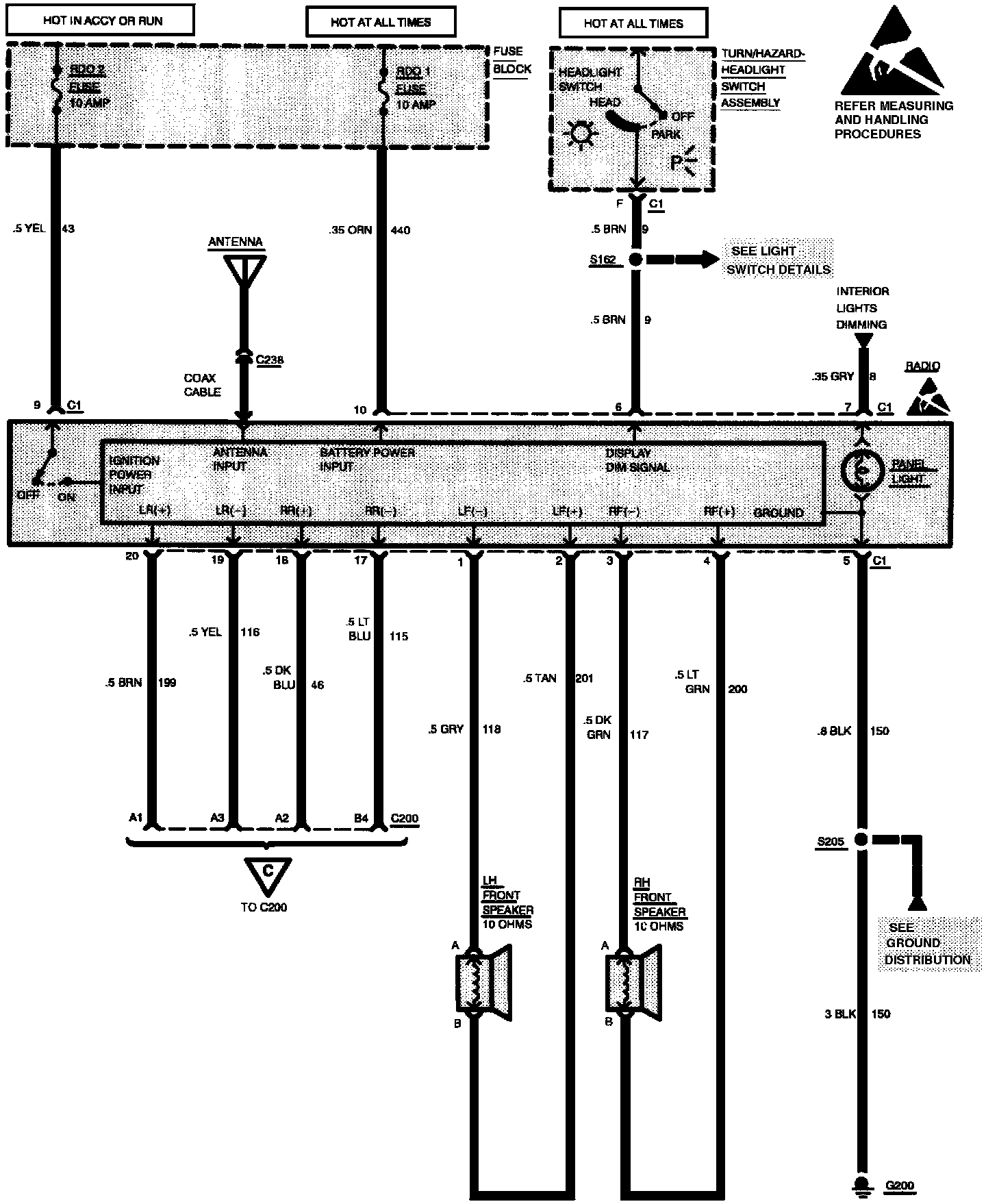

Radio/Audio System: UM6 And UM7 (Part 1 Of 2):

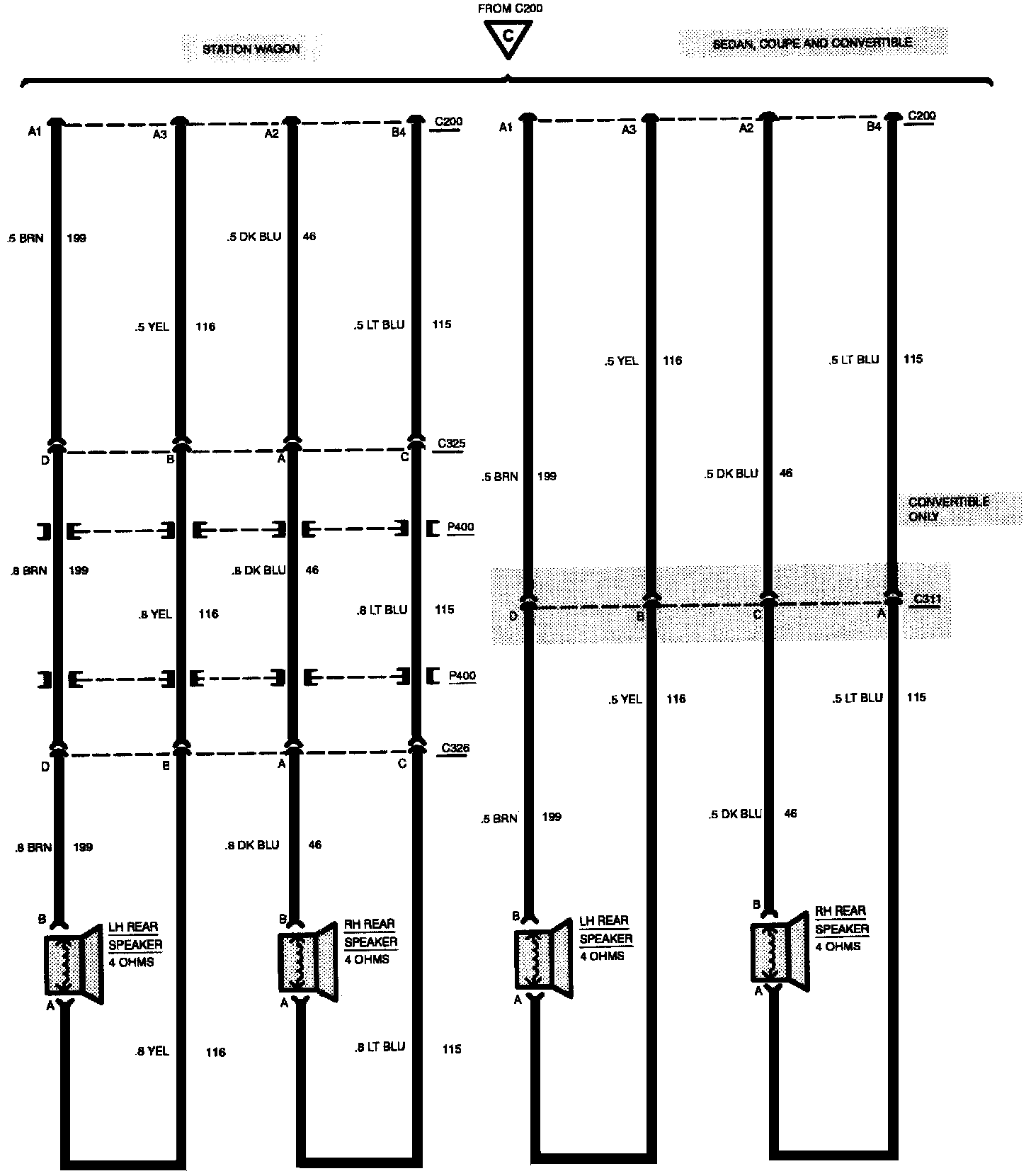

Radio/Audio System: UM6 And UM7 (Part 2 Of 2):
