Cavalier/Z24 V6-191 3.1L VIN T MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Heating and Air Conditioning
>>
Air Delivery
Air Delivery

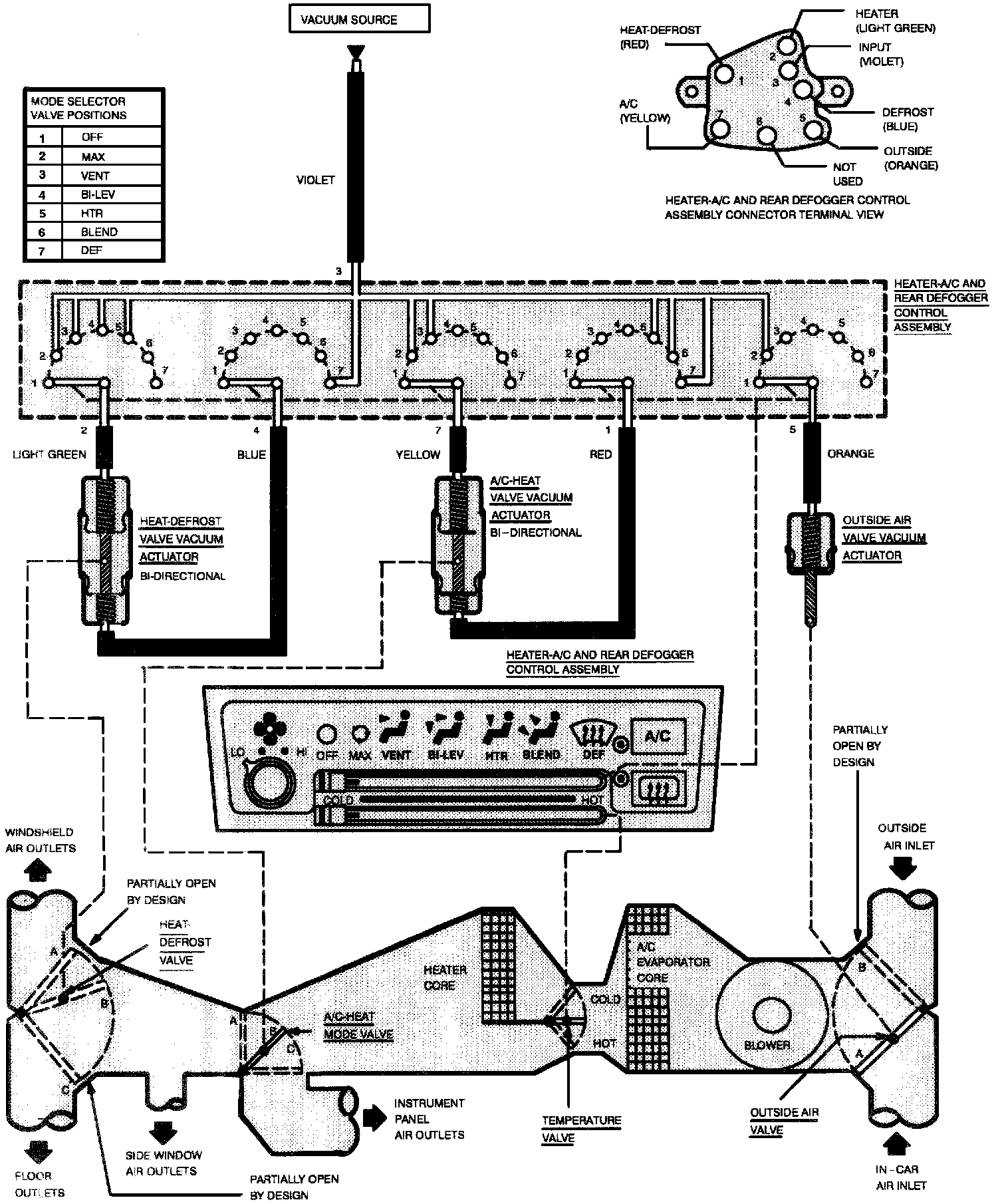

HVAC: Air Delivery (C60, Manual):
