Air Bag Control Module

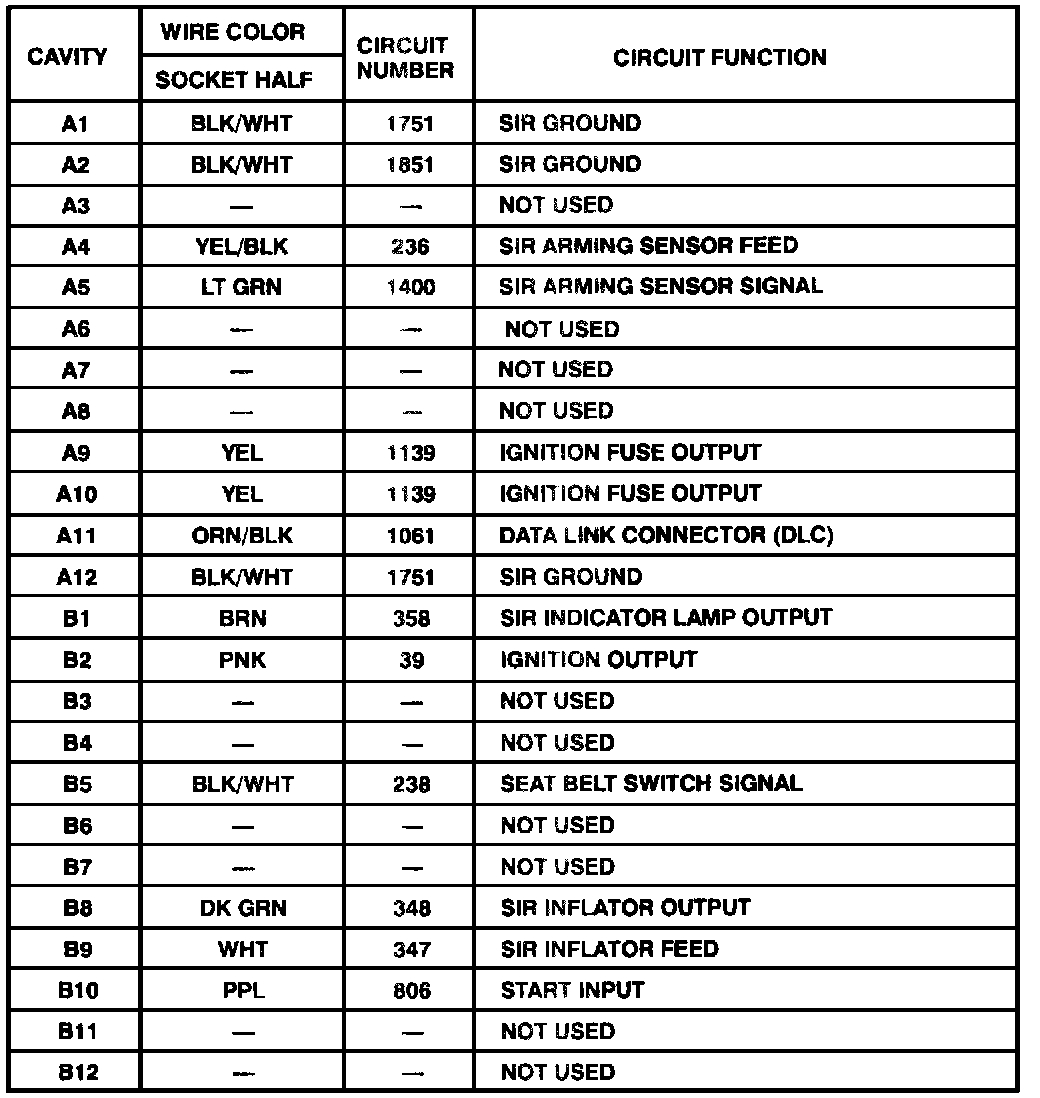

Harness Connector Faces: Diagnostic Energy Reserve Module (DERM) (Description):



Harness Connector Faces: Diagnostic Energy Reserve Module (DERM):
