Home
>>
Chevrolet
>>
1994
>>
Corsica V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Daytime Running Lamp Control Unit
Daytime Running Lamp Control Unit

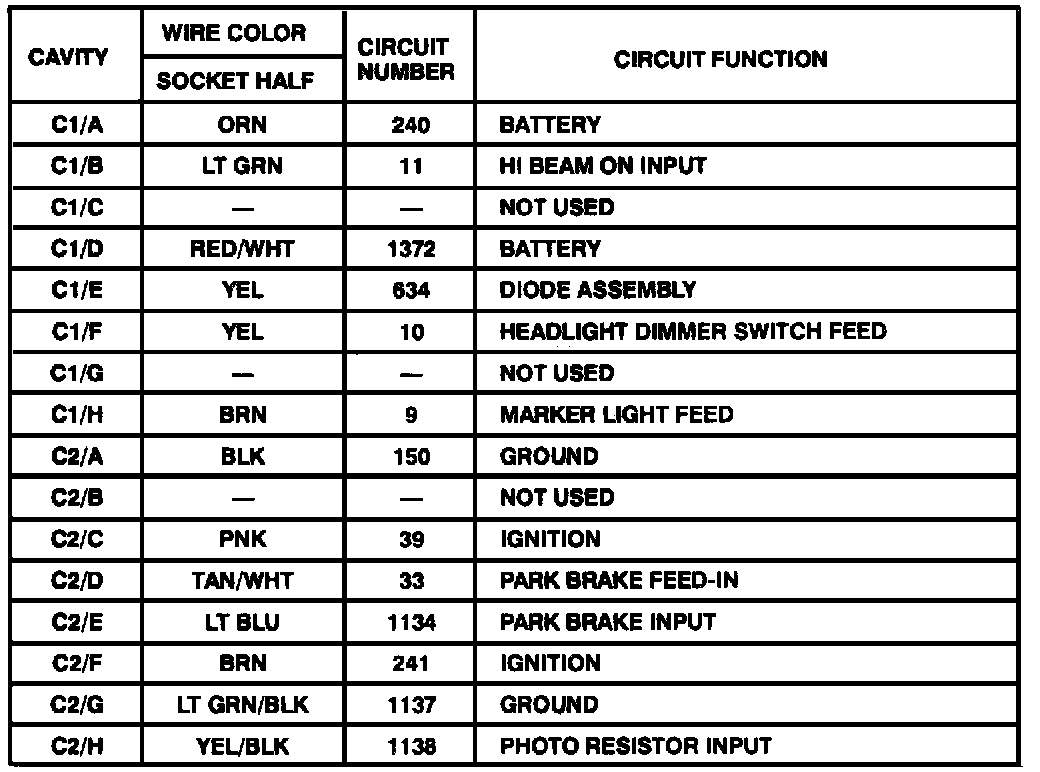

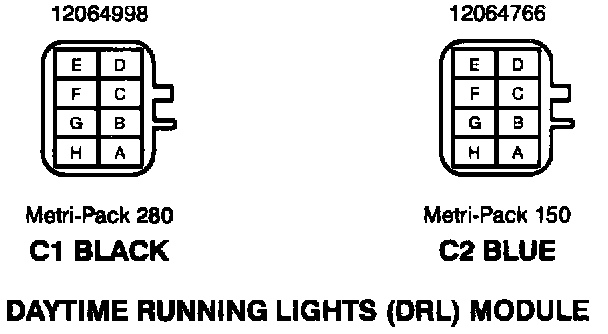

Harness Connector Faces: Daytime Running Lights (DRL) Module:
Harness Connector Faces: Daytime Running Lights (DRL) Module (Description):
