Corsica V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp Switch
>>
Pinout Description
Pinout Description

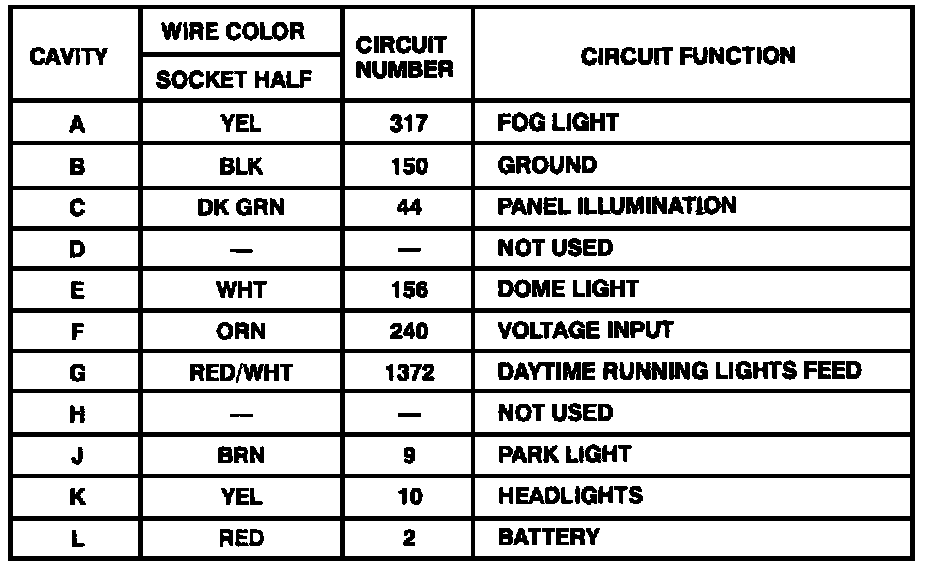

Harness Connector Faces: Light Switch (Description):
